NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder Class Reference

Represents a Features::Subdivision::SubdivisionSplitFaceBuilder builder. More...

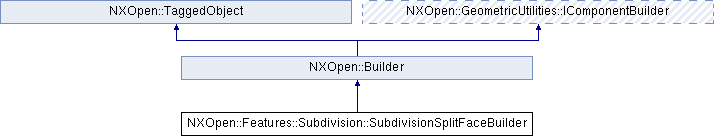

Inheritance diagram for NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder:

Public Types
enum	Types { TypesUniform, TypesThroughLines }
	Represents the split type. More...

Public Member Functions
void	AddSplitPoint (const NXOpen::Point3d &location, NXOpen::DisplayableObject *object)
	Add split face point.
NXOpen::Features::Subdivision::SelectCageObjectData *	FacesToSplit ()
	Returns the faces to split.
int	Number ()
	Returns the desired split number in one face.
NXOpen::Features::Subdivision::SelectCageObjectData *	ReferenceEdge ()
	Returns the reference edges.
void	SetNumber (int number)
	Sets the desired split number in one face.
void	SetType (NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::Types type)
	Sets the split type.
NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::Types	Type ()
	Returns the split type.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::Subdivision::SubdivisionSplitFaceBuilder builder.

To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionSplitFaceBuilder

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::Types

Represents the split type.

Enumerator:

TypesUniform	Uniform split type.
TypesThroughLines	Through lines split type.

Member Function Documentation

void NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::AddSplitPoint	(	const NXOpen::Point3d &	location,
		NXOpen::DisplayableObject *	object
	)

Add split face point.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

location	the loction on the object to split face.
object	the selected subdivision edge or vertex to split face.

NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::FacesToSplit

(

)

Returns the faces to split.

Created in NX9.0.0.

License requirements : None

int NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::Number

(

)

Returns the desired split number in one face.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::ReferenceEdge

(

)

Returns the reference edges.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::SetNumber

(

int

number

)

Sets the desired split number in one face.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

number

number

void NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::SetType

(

NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::Types

type

)

Sets the split type.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

type

type

NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::Types NXOpen::Features::Subdivision::SubdivisionSplitFaceBuilder::Type

(

)

Returns the split type.

Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_Subdivision_SubdivisionSplitFaceBuilder.hxx
