NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder Class Reference

Represents a Features::Subdivision::SubdivisionSetContinuityBuilder builder. More...

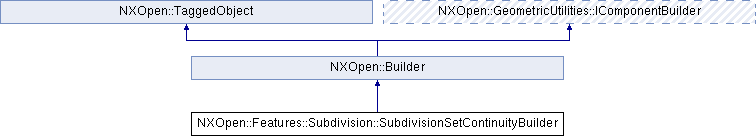

Inheritance diagram for NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder:

Public Types
enum	ContinuityTypes { ContinuityTypesSmooth, ContinuityTypesSharp }
	Represents the continuity type. More...

Public Member Functions
NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::ContinuityTypes	ContinuityType ()
	Returns the continuity.
void	SetContinuityType (NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::ContinuityTypes continuityType)
	Sets the continuity.
NXOpen::Features::Subdivision::SelectCageObjectData *	TargetObject ()
	Returns the target object.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::Subdivision::SubdivisionSetContinuityBuilder builder.

To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionSetContinuityBuilder
Default values.

Property	Value
ContinuityType	Smooth

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::ContinuityTypes

Represents the continuity type.

Enumerator:

ContinuityTypesSmooth	smooth
ContinuityTypesSharp	sharp

Member Function Documentation

NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::ContinuityTypes NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::ContinuityType

(

)

Returns the continuity.

The continuity is used to specify creases in the limit surface.
Created in NX9.0.0.

License requirements : None

void NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::SetContinuityType

(

NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::ContinuityTypes

continuityType

)

Sets the continuity.

The continuity is used to specify creases in the limit surface.
Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

continuityType

continuitytype

NXOpen::Features::Subdivision::SelectCageObjectData* NXOpen::Features::Subdivision::SubdivisionSetContinuityBuilder::TargetObject

(

)

Returns the target object.

Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_Subdivision_SubdivisionSetContinuityBuilder.hxx
