NXOpen::Features::SketchSplineBuilder Class Reference

Sketch Spline builder class. More...

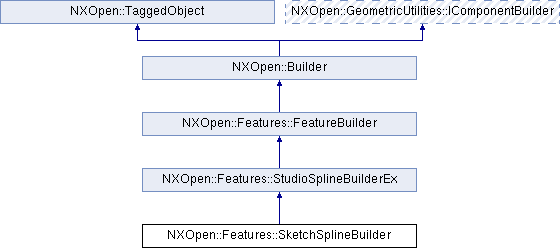

Inheritance diagram for NXOpen::Features::SketchSplineBuilder:

Additional Inherited Members
Public Types inherited from NXOpen::Features::StudioSplineBuilderEx
enum	DrawingPlaneOptions {   DrawingPlaneOptionsView, DrawingPlaneOptionsXY, DrawingPlaneOptionsYZ, DrawingPlaneOptionsXZ,   DrawingPlaneOptionsGeneral }
	Drawing plane options. More...
enum	InputCurveOptions { InputCurveOptionsKeep, InputCurveOptionsHide, InputCurveOptionsDelete }
	Options of the actions to be taken on an input non-parametric spline after its editing is done. More...
enum	MatchKnotsTypes { MatchKnotsTypesNone, MatchKnotsTypesCubic, MatchKnotsTypesGeneral }
	Options for creating knots at the defining points in case of through point spline. More...
enum	MovementMethodType {   MovementMethodTypeWCS, MovementMethodTypeView, MovementMethodTypeVector, MovementMethodTypePlane,   MovementMethodTypeNormal, MovementMethodTypePolygon }
	Points movement types. More...
enum	Types { TypesThroughPoints, TypesByPoles }
	Spline methods. More...
enum	WCSOptionType {   WCSOptionTypeX, WCSOptionTypeY, WCSOptionTypeZ, WCSOptionTypeYZ,   WCSOptionTypeXZ, WCSOptionTypeXY }
	WCS principal axis or plane types. More...
Public Member Functions inherited from NXOpen::Features::StudioSplineBuilderEx
bool	CanUseOrientationTool ()
	Returns the flag indicating if WCS like tool should be deployed when a point or pole handle is selected Created in NX8.5.1.
NXOpen::Features::GeometricConstraintDataManager *	ConstraintManager ()
	Returns the constraint manager Created in NX8.0.0.
NXOpen::CoordinateSystem *	ConstraintPlane ()
	Returns the coordinate system defining plane constraint Created in NX8.0.0.
NXOpen::Spline *	Curve ()
	Returns the spline curve Created in NX8.0.0.
int	Degree ()
	Returns the degree Created in NX8.0.0.
NXOpen::Plane *	DrawingPlane ()
	Returns the drawing plane Created in NX8.0.0.
NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions	DrawingPlaneOption ()
	Returns a drawing plane option Created in NX8.0.0.
void	EditSpline (NXOpen::NXObject *spline)
	Sets a non-parametric spline for editing Created in NX8.0.0.
void	Evaluate ()
	Evaluates the spline Created in NX8.0.0.
NXOpen::GeometricUtilities::SplineExtensionBuilder *	Extender ()
	Returns the extension option Created in NX8.0.0.
std::vector< double >	GetKnots ()
	Queries the knot sequence for by pole spline.
std::vector< double >	GetParameters ()
	Queries the parameters at defining points for a through point spline.
bool	HasPlaneConstraint ()
	Returns the flag indicating if spline has plane constraint Created in NX8.0.0.
bool	HasProportionalUpdate ()
	Returns the flag indicating if free or non attached defining points or poles should be moved proportionally during update of the spline feature Created in NX8.0.0.
NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions	InputCurveOption ()
	Returns the input curve option Created in NX8.0.0.
void	InsertKnot (const NXOpen::Point3d &point)
	Inserts knot at a closest point on the spline Created in NX8.0.0.
void	InsertPole (int afterIndex)
	Inserts a pole in the middle of a control polygon segment Created in NX8.0.0.
bool	IsAssociative ()
	Returns the flag indicating if a feature should be created Created in NX8.0.0.
bool	IsPeriodic ()
	Returns the periodicity Created in NX8.0.0.
bool	IsSingleSegment ()
	Returns a flag indicating if single segment by pole spline is to be created Created in NX8.0.0.
NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes	MatchKnotsType ()
	Returns a constraint to match knots at the defining points for a through point spline Created in NX8.0.0.
NXOpen::Features::StudioSplineBuilderEx::MovementMethodType	MovementMethod ()
	Returns the movement method Created in NX8.0.0.
NXOpen::Plane *	MovementPlane ()
	Returns the movement plane Created in NX8.0.0.
NXOpen::Direction *	MovementVector ()
	Returns the movement vector Created in NX8.0.0.
NXOpen::GeometricUtilities::OrientXpressBuilder *	OrientExpress ()
	Returns the orient express object Created in NX8.0.0.
void	SetAssociative (bool associative)
	Sets the flag indicating if a feature should be created Created in NX8.0.0.
void	SetCanUseOrientationTool (bool useOrientationTool)
	Sets the flag indicating if WCS like tool should be deployed when a point or pole handle is selected Created in NX8.5.1.
void	SetConstraintPlane (NXOpen::CoordinateSystem *coordinateSystem)
	Sets the coordinate system defining plane constraint Created in NX8.0.0.
void	SetDegree (int degree)
	Sets the degree Created in NX8.0.0.
void	SetDrawingPlane (NXOpen::Plane *drawingPlane)
	Sets the drawing plane Created in NX8.0.0.
void	SetDrawingPlaneOption (NXOpen::Features::StudioSplineBuilderEx::DrawingPlaneOptions planeOption)
	Sets a drawing plane option Created in NX8.0.0.
void	SetHasPlaneConstraint (bool hasConstraint)
	Sets the flag indicating if spline has plane constraint Created in NX8.0.0.
void	SetHasProportionalUpdate (bool hasProportionalUpdate)
	Sets the flag indicating if free or non attached defining points or poles should be moved proportionally during update of the spline feature Created in NX8.0.0.
void	SetInputCurveOption (NXOpen::Features::StudioSplineBuilderEx::InputCurveOptions option)
	Sets the input curve option Created in NX8.0.0.
void	SetKnots (const std::vector< double > &knots)
	Sets the optional knot sequence for by pole spline Created in NX8.0.0.
void	SetMatchKnotsType (NXOpen::Features::StudioSplineBuilderEx::MatchKnotsTypes matchKnotsType)
	Sets a constraint to match knots at the defining points for a through point spline Created in NX8.0.0.
void	SetMovementMethod (NXOpen::Features::StudioSplineBuilderEx::MovementMethodType movementMethod)
	Sets the movement method Created in NX8.0.0.
void	SetMovementPlane (NXOpen::Plane *movementPlane)
	Sets the movement plane Created in NX8.0.0.
void	SetMovementVector (NXOpen::Direction *movementVector)
	Sets the movement vector Created in NX8.0.0.
void	SetParameters (const std::vector< double > &parameters)
	Sets the optional parameters at defining points for a through point spline Created in NX8.0.0.
void	SetPeriodic (bool periodicity)
	Sets the periodicity Created in NX8.0.0.
void	SetSingleSegment (bool isSingleSegment)
	Sets a flag indicating if single segment by pole spline is to be created Created in NX8.0.0.
void	SetType (NXOpen::Features::StudioSplineBuilderEx::Types type)
	Sets the spline method Created in NX8.0.0.
void	SetWCSOption (NXOpen::Features::StudioSplineBuilderEx::WCSOptionType wcsOption)
	Sets the WCS option Created in NX8.0.0.
NXOpen::Features::StudioSplineBuilderEx::Types	Type ()
	Returns the spline method Created in NX8.0.0.
void	UpdateOnConstraintPlane ()
	Updates spline based on constraint plane Created in NX8.0.0.
NXOpen::Features::StudioSplineBuilderEx::WCSOptionType	WCSOption ()
	Returns the WCS option Created in NX8.0.0.

Detailed Description

Sketch Spline builder class.

To create a new instance of this class, use Features::FeatureCollection::CreateSketchSplineBuilder
Default values.

Property	Value
DrawingPlaneOption	View
InputCurveOption	Hide
MatchKnotsType	None
MovementMethod	View
Type	ThroughPoints
WCSOption	X

Created in NX8.0.0.

---

The documentation for this class was generated from the following file:

• Features_SketchSplineBuilder.hxx
