This class allows you to define the thickness direction for plate system features in Ship Basic Design and and for grid planes in Ship Concept Design. More...
Public Types | |
| enum | ThicknessDirectionType { ThicknessDirectionTypeFwdPortInUp, ThicknessDirectionTypeAftStbdOutDn, ThicknessDirectionTypeCtr, ThicknessDirectionTypePortToInCtr, ThicknessDirectionTypeStbdFrOutCtr } |
| Settings used to indicate the direction of thickness from the mold face or grid plane. More... | |
Public Member Functions | |
| void | SetThicknessDirection (NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType thicknessDirection) |
| Sets the direction in which to apply the thickness. | |
| void | SetThicknessDirectionOnReference (NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType thicknessDirectionOnReference) |
| Sets the direction in which to apply the thickness when the mold face or grid plane is located on a midship reference. | |
| NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType | ThicknessDirection () |
| Returns the direction in which to apply the thickness. | |
| NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType | ThicknessDirectionOnReference () |
| Returns the direction in which to apply the thickness when the mold face or grid plane is located on a midship reference. | |

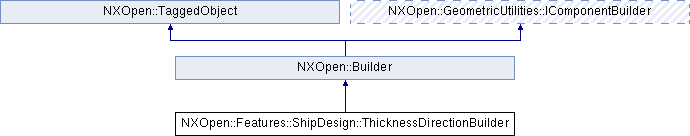

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This class allows you to define the thickness direction for plate system features in Ship Basic Design and and for grid planes in Ship Concept Design.
This class is sub-object of another builder, and cannot be directly instantiated.
Default values.
| Property | Value |
|---|---|
|
ThicknessDirection |
FwdPortInUp |
|
ThicknessDirectionOnReference |
FwdPortInUp |
Created in NX8.0.0.
Member Enumeration Documentation
Settings used to indicate the direction of thickness from the mold face or grid plane.
The actual direction depends on the type of plate system or grid defined.
- Enumerator:
ThicknessDirectionTypeFwdPortInUp Direction is Forward, Port, Inside or Up.
ThicknessDirectionTypeAftStbdOutDn Direction is Aft, Starboard, Outside or Down.
ThicknessDirectionTypeCtr Thickness is centered about the mold face.
ThicknessDirectionTypePortToInCtr Direction is Port, To Reference, Inside or Centered.
ThicknessDirectionTypeStbdFrOutCtr Direction is Starboard, From Reference, Outside or Centered.
Member Function Documentation
| void NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::SetThicknessDirection | ( | NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType | thicknessDirection | ) |
Sets the direction in which to apply the thickness.
Created in NX8.0.0.
License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")
- Parameters
-
thicknessDirection thicknessdirection
| void NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::SetThicknessDirectionOnReference | ( | NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType | thicknessDirectionOnReference | ) |
Sets the direction in which to apply the thickness when the mold face or grid plane is located on a midship reference.
Created in NX8.0.0.
License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")
- Parameters
-
thicknessDirectionOnReference thicknessdirectiononreference
| NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirection | ( | ) |
Returns the direction in which to apply the thickness.
Created in NX8.0.0.
License requirements : None
| NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionType NXOpen::Features::ShipDesign::ThicknessDirectionBuilder::ThicknessDirectionOnReference | ( | ) |
Returns the direction in which to apply the thickness when the mold face or grid plane is located on a midship reference.
Created in NX8.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_ShipDesign_ThicknessDirectionBuilder.hxx
