NXOpen::Features::ShipDesign::ShipAttributeHolder Class Reference

Represents a Features::ShipDesign::ShipAttributeHolder builder
This is an abstract class. More...

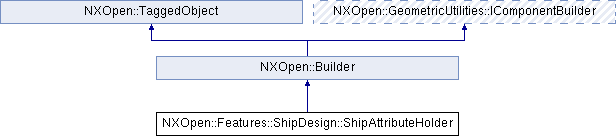

Inheritance diagram for NXOpen::Features::ShipDesign::ShipAttributeHolder:

Public Member Functions
void	CopyAttributesToObjects (bool bCreate, NXOpen::Features::FeatureBuilder *featBuilder)
	Copies attributes from proxy to feature objects Created in NX8.0.1.
void	CopyAttributesToPart (const std::vector< NXOpen::NXObject * > &object)
	Copies the attributes to part
void	CopyAttributesToPart (bool bCreate, NXOpen::Features::FeatureBuilder *featBuilder)
	Copies the attributes from proxy to part Created in NX8.0.1.
NXOpen::NXObject *	GetAttributeProxy ()
	Gets attribute proxy.
void	SetAttributesToObjects (const std::vector< NXOpen::NXObject * > &object)
	Sets the attributes to feature objects
void	SetAttributesToObjects (bool bCreate, NXOpen::Features::FeatureBuilder *featBuilder)
	Sets the attributes to objects
void	SetAttributesToProxy (NXOpen::NXObject *object)
	Sets the attributes to proxy Created in NX8.0.1.
void	SetAttributeToProxyFromBuilder (NXOpen::Features::FeatureBuilder *featBuilder)
	Sets attribute proxy Created in NX8.5.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::ShipAttributeHolder builder
This is an abstract class.

Created in NX8.0.0.

Member Function Documentation

void NXOpen::Features::ShipDesign::ShipAttributeHolder::CopyAttributesToObjects	(	bool	bCreate,
		NXOpen::Features::FeatureBuilder *	featBuilder
	)

Copies attributes from proxy to feature objects
Created in NX8.0.1.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

bCreate	create or edit
featBuilder	feat builder

void NXOpen::Features::ShipDesign::ShipAttributeHolder::CopyAttributesToPart

(

const std::vector< NXOpen::NXObject * > &

object

)

Copies the attributes to part

Deprecated:

Deprecated in NX8.0.1.

This method is no longer valid. Use the un-deprecated method with the same method name.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

object

object

void NXOpen::Features::ShipDesign::ShipAttributeHolder::CopyAttributesToPart	(	bool	bCreate,
		NXOpen::Features::FeatureBuilder *	featBuilder
	)

Copies the attributes from proxy to part
Created in NX8.0.1.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

bCreate	create or edit
featBuilder	feat builder

NXOpen::NXObject* NXOpen::Features::ShipDesign::ShipAttributeHolder::GetAttributeProxy

(

)

Gets attribute proxy.

Returns

Created in NX8.0.1.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

void NXOpen::Features::ShipDesign::ShipAttributeHolder::SetAttributesToObjects

(

const std::vector< NXOpen::NXObject * > &

object

)

Sets the attributes to feature objects

Deprecated:

Deprecated in NX8.0.1.

Use Features::ShipDesign::ShipAttributeHolder::SetAttributesToProxy instead.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

object

object

void NXOpen::Features::ShipDesign::ShipAttributeHolder::SetAttributesToObjects	(	bool	bCreate,
		NXOpen::Features::FeatureBuilder *	featBuilder
	)

Sets the attributes to objects

Deprecated:

Deprecated in NX8.0.2.

Use Features::ShipDesign::ShipAttributeHolder::SetAttributesToProxy instead.

Created in NX8.0.1.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

bCreate	create or edit
featBuilder	feat builder

void NXOpen::Features::ShipDesign::ShipAttributeHolder::SetAttributesToProxy

(

NXOpen::NXObject *

object

)

Sets the attributes to proxy
Created in NX8.0.1.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

object

NULL or object to be edited

void NXOpen::Features::ShipDesign::ShipAttributeHolder::SetAttributeToProxyFromBuilder

(

NXOpen::Features::FeatureBuilder *

featBuilder

)

Sets attribute proxy
Created in NX8.5.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

featBuilder

feat builder

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_ShipAttributeHolder.hxx
