NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder Class Reference

Represents the examine steel feature builder to examine steel feature. More...

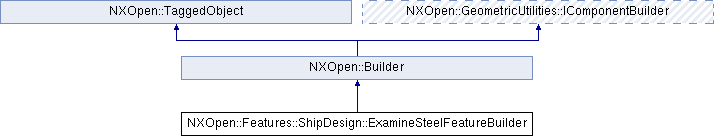

Inheritance diagram for NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder:

Public Member Functions
void	DisplayInformation ()
	Displays the Examining results in the information window.
void	Examine ()
	Examines the selected objects.
NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderResult	GetCheckResult (NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderCheck check)
	Get the Examining status.
void	HighlightCheckResult (NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderCheck check, bool highlight)
	Highlights or unhighlights the geometries in graphic to display the check result.
NXOpen::SelectDisplayableObjectList *	SelectObject ()
	Returns the Examining objects.
void	SetCheck (NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderCheck check, bool status)
	Set the flag to indicate whether or not to examine the specific object type.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the examine steel feature builder to examine steel feature.

To create a new instance of this class, use Features::ShipCollection::CreateExamineSteelFeatureBuilder

Created in NX9.0.0.

Member Function Documentation

void NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder::DisplayInformation

(

)

Displays the Examining results in the information window.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

void NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder::Examine

(

)

Examines the selected objects.

Created in NX9.0.0.

License requirements : nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderResult NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder::GetCheckResult

(

NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderCheck

check

)

Get the Examining status.

Returns

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

check

Type of Check

void NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder::HighlightCheckResult	(	NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderCheck	check,
		bool	highlight
	)

Highlights or unhighlights the geometries in graphic to display the check result.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

check	Type of Check
highlight	highlight

NXOpen::SelectDisplayableObjectList* NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder::SelectObject

(

)

Returns the Examining objects.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilder::SetCheck	(	NXOpen::Features::ShipDesign::ExamineSteelFeatureBuilderCheck	check,
		bool	status
	)

Set the flag to indicate whether or not to examine the specific object type.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

check	Type of Check
status	status

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_ExamineSteelFeatureBuilder.hxx
