This class is used to identify ship structure that is to have a temporary solid display built for it. More...
Public Types | |
| enum | DisplayOptionTypes { DisplayOptionTypesCurve, DisplayOptionTypesCurveAndSolid = 2 } |
| Used to specify how the basic design profile system objects are displayed. More... | |
Public Member Functions | |
| NXOpen::Features::ShipDesign::DisplaySolidBuilder::DisplayOptionTypes | DisplayOption () |
| Returns the setting for how the basic design objects are displayed. | |
| void | SetDisplayOption (NXOpen::Features::ShipDesign::DisplaySolidBuilder::DisplayOptionTypes displayOption) |
| Sets the setting for how the basic design objects are displayed. | |
| NXOpen::SelectNXObjectList * | ShipStructure () |
| Returns the ship structure whose solid display is desired. | |

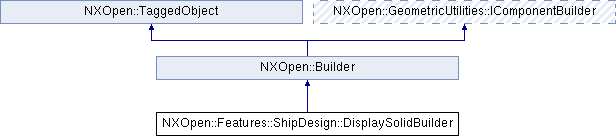

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This class is used to identify ship structure that is to have a temporary solid display built for it.
To create a new instance of this class, use Features::ShipCollection::CreateDisplaySolidBuilder
Default values.
| Property | Value |
|---|---|
|
DisplayOption |
Created in NX8.0.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::Features::ShipDesign::DisplaySolidBuilder::DisplayOptionTypes NXOpen::Features::ShipDesign::DisplaySolidBuilder::DisplayOption | ( | ) |
Returns the setting for how the basic design objects are displayed.
Created in NX8.5.0.
License requirements : None
| void NXOpen::Features::ShipDesign::DisplaySolidBuilder::SetDisplayOption | ( | NXOpen::Features::ShipDesign::DisplaySolidBuilder::DisplayOptionTypes | displayOption | ) |
Sets the setting for how the basic design objects are displayed.
Created in NX8.5.0.
License requirements : nx_ship_basic ("Ship Basic Design")
- Parameters
-
displayOption displayoption
| NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::DisplaySolidBuilder::ShipStructure | ( | ) |
Returns the ship structure whose solid display is desired.
Created in NX8.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_ShipDesign_DisplaySolidBuilder.hxx
