This class is used to compare between the two Shipbuilding modes of Design and Manufacturing. More...

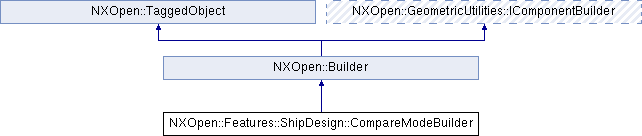

Inheritance diagram for NXOpen::Features::ShipDesign::CompareModeBuilder:

Public Types
enum	CompareMode { CompareModeDesignMode, CompareModeManufacturingMode }
	Compare Mode type. More...

Public Member Functions
NXOpen::Features::ShipDesign::CompareModeBuilder::CompareMode	CompareEmphasizeMode ()
	Returns the compare emphasize mode.

NXOpen::SelectNXObjectList *	DesignElementToCompare ()
	Returns the design element selection object to be processed in the change of mode comparing.

void	RestoreDisplay (NXOpen::Assemblies::Component *singleparttorestore)
	Restores the display and removes the compare between the Design vs Manufacturing data.

void	SetCompareEmphasizeMode (NXOpen::Features::ShipDesign::CompareModeBuilder::CompareMode compareEmphasizeMode)
	Sets the compare emphasize mode.

int	UpdateDisplay ()
	Loops through all the parts and updates the display to show the compare between the Design vs Manufacturing data.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class is used to compare between the two Shipbuilding modes of Design and Manufacturing.

 <br> To create a new instance of this class, use @link Features::ShipCollection::CreateCompareModeBuilder  Features::ShipCollection::CreateCompareModeBuilder @endlink  <br>

Default values.

Property

Value

CompareEmphasizeMode

DesignMode

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::CompareModeBuilder::CompareMode

Compare Mode type.

Enumerator:

CompareModeDesignMode	design mode
CompareModeManufacturingMode	manufacturing mode

Member Function Documentation

NXOpen::Features::ShipDesign::CompareModeBuilder::CompareMode NXOpen::Features::ShipDesign::CompareModeBuilder::CompareEmphasizeMode ( )

Returns the compare emphasize mode.
