NXOpen::Features::SheetMetal::ExportFlatPatternBuilder Class Reference

Represents a Export flat pattern builder. More...

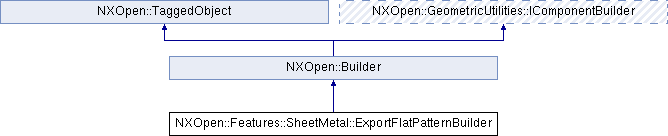

Inheritance diagram for NXOpen::Features::SheetMetal::ExportFlatPatternBuilder:

Public Types
enum	DxfRevisionType {   DxfRevisionTypeR2005, DxfRevisionTypeR2004, DxfRevisionTypeR2000, DxfRevisionTypeR14,   DxfRevisionTypeR2007, DxfRevisionTypeR20102012 }
	Specifies the DXF Revisions for flat pattern export. More...
enum	FileType { FileTypeDxf, FileTypeTrumpfGeo }
	Specifies the flat pattern export type. More...

Public Member Functions
bool	AddedBottom ()
	Returns the added bottom geometry output flag Created in NX8.0.0.
bool	AddedTop ()
	Returns the added top geometry output flag Created in NX8.0.0.
bool	BendDown ()
	Returns the bend down center line output flag Created in NX8.0.0.
bool	BendTangent ()
	Returns the bend tangent line output flag Created in NX8.0.0.
bool	BendUp ()
	Returns the bend up center line output flag Created in NX8.0.0.
double	DeviationalTolerance ()
	Returns the deviational tolerance Created in NX8.0.0.
NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::DxfRevisionType	DxfRevision ()
	Returns the dxf revision.
NXOpen::Features::SelectFlatPattern *	FlatPattern ()
	Returns the flat pattern feature Created in NX8.0.0.
bool	InteriorCutout ()
	Returns the interior cutout output flag Created in NX8.0.0.
bool	InteriorFeature ()
	Returns the interior feature output flag Created in NX8.0.0.
NXString	OutputFile ()
	Returns the output file used to export flat pattern curves Created in NX8.0.0.
void	SetAddedBottom (bool addedBottom)
	Sets the added bottom geometry output flag Created in NX8.0.0.
void	SetAddedTop (bool addedTop)
	Sets the added top geometry output flag Created in NX8.0.0.
void	SetBendDown (bool bendDown)
	Sets the bend down center line output flag Created in NX8.0.0.
void	SetBendTangent (bool bendTangent)
	Sets the bend tangent line output flag Created in NX8.0.0.
void	SetBendUp (bool bendUp)
	Sets the bend up center line output flag Created in NX8.0.0.
void	SetDeviationalTolerance (double deviationalTolerance)
	Sets the deviational tolerance Created in NX8.0.0.
void	SetDxfRevision (NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::DxfRevisionType dxfRevision)
	Sets the dxf revision.
void	SetInteriorCutout (bool interiorCutout)
	Sets the interior cutout output flag Created in NX8.0.0.
void	SetInteriorFeature (bool interiorFeature)
	Sets the interior feature output flag Created in NX8.0.0.
void	SetOutputFile (const NXString &filename)
	Sets the output file used to export flat pattern curves Created in NX8.0.0.
void	SetOutputFile (const char *filename)
	Sets the output file used to export flat pattern curves Created in NX8.0.0.
void	SetType (NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::FileType type)
	Sets the type for the flat pattern export.The options are in Features::SheetMetal::ExportFlatPatternBuilder::Type .
NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::FileType	Type ()
	Returns the type for the flat pattern export.The options are in Features::SheetMetal::ExportFlatPatternBuilder::Type .
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Export flat pattern builder.

To create a new instance of this class, use Features::SheetMetal::SheetmetalManager::CreateExportFlatPatternBuilder
Default values.

Property	Value
AddedBottom	false
AddedTop	false
BendDown	true
BendTangent	false
BendUp	true
InteriorCutout	true
InteriorFeature	false

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::DxfRevisionType

Specifies the DXF Revisions for flat pattern export.

Enumerator:

DxfRevisionTypeR2005	r2005
DxfRevisionTypeR2004	r2004
DxfRevisionTypeR2000	r2000
DxfRevisionTypeR14	r14
DxfRevisionTypeR2007	r2007
DxfRevisionTypeR20102012	r20102012

enum NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::FileType

Specifies the flat pattern export type.

Enumerator:

FileTypeDxf	DXF Export.
FileTypeTrumpfGeo	Trumpf Geo Export.

Member Function Documentation

bool NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::AddedBottom

(

)

Returns the added bottom geometry output flag
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::AddedTop

(

)

Returns the added top geometry output flag
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::BendDown

(

)

Returns the bend down center line output flag
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::BendTangent

(

)

Returns the bend tangent line output flag
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::BendUp

(

)

Returns the bend up center line output flag
Created in NX8.0.0.

License requirements : None

double NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::DeviationalTolerance

(

)

Returns the deviational tolerance
Created in NX8.0.0.

License requirements : None

NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::DxfRevisionType NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::DxfRevision

(

)

Returns the dxf revision.

The options are in Features::SheetMetal::ExportFlatPatternBuilder::DxfRevisionType .
Created in NX8.0.0.

License requirements : None

NXOpen::Features::SelectFlatPattern* NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::FlatPattern

(

)

Returns the flat pattern feature
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::InteriorCutout

(

)

Returns the interior cutout output flag
Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::InteriorFeature

(

)

Returns the interior feature output flag
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::OutputFile

(

)

Returns the output file used to export flat pattern curves
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetAddedBottom

(

bool

addedBottom

)

Sets the added bottom geometry output flag
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

addedBottom

addedbottom

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetAddedTop

(

bool

addedTop

)

Sets the added top geometry output flag
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

addedTop

addedtop

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetBendDown

(

bool

bendDown

)

Sets the bend down center line output flag
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

bendDown

benddown

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetBendTangent

(

bool

bendTangent

)

Sets the bend tangent line output flag
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

bendTangent

bendtangent

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetBendUp

(

bool

bendUp

)

Sets the bend up center line output flag
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

bendUp

bendup

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetDeviationalTolerance

(

double

deviationalTolerance

)

Sets the deviational tolerance
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

deviationalTolerance

deviationaltolerance

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetDxfRevision

(

NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::DxfRevisionType

dxfRevision

)

Sets the dxf revision.

The options are in Features::SheetMetal::ExportFlatPatternBuilder::DxfRevisionType .
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

dxfRevision

dxfrevision

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetInteriorCutout

(

bool

interiorCutout

)

Sets the interior cutout output flag
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

interiorCutout

interiorcutout

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetInteriorFeature

(

bool

interiorFeature

)

Sets the interior feature output flag
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

interiorFeature

interiorfeature

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetOutputFile

(

const NXString &

filename

)

Sets the output file used to export flat pattern curves
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

filename

filename

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetOutputFile

(

const char *

filename

)

Sets the output file used to export flat pattern curves
Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

filename

filename

void NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::SetType

(

NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::FileType

type

)

Sets the type for the flat pattern export.The options are in Features::SheetMetal::ExportFlatPatternBuilder::Type .

Created in NX8.0.0.

License requirements : nx_sheet_metal ("NX Sheet Metal") OR nx_flexible_pcb ("NX Flexible PCB")

Parameters

type

type

NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::FileType NXOpen::Features::SheetMetal::ExportFlatPatternBuilder::Type

(

)

Returns the type for the flat pattern export.The options are in Features::SheetMetal::ExportFlatPatternBuilder::Type .

Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_SheetMetal_ExportFlatPatternBuilder.hxx
