NXOpen::Drawings::ViewingDirectionArrowLabel Class Reference

This class represents a Drafting Viewing Direction Arrow Label. More...

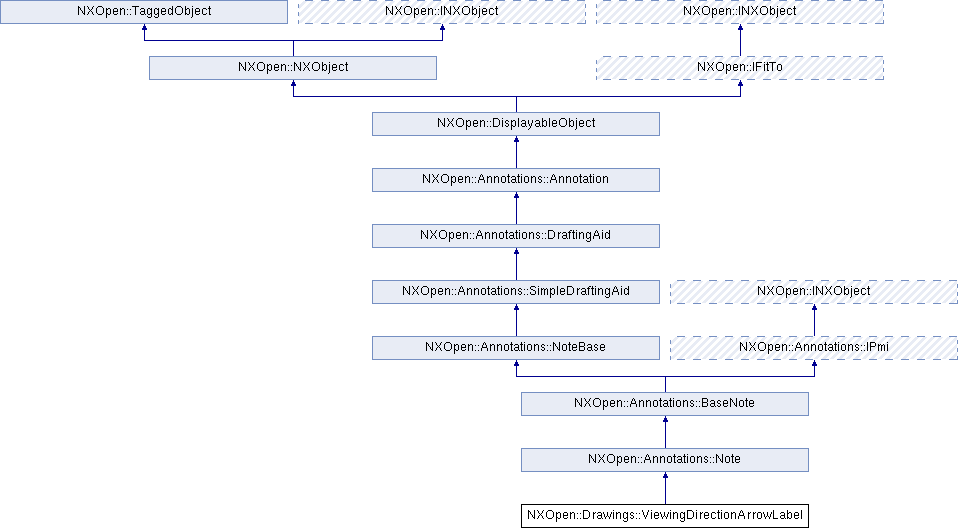

Inheritance diagram for NXOpen::Drawings::ViewingDirectionArrowLabel:

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...
Public Member Functions inherited from NXOpen::Annotations::BaseNote
virtual NXOpen::Annotations::AssociatedObject *	GetAssociatedObject ()
	Returns the associated object.
virtual std::vector < NXOpen::Annotations::BusinessModifier * >	GetBusinessModifiers ()
	Returns the business modifiers.
virtual NXOpen::Annotations::AssociatedObject *	GetSharedAssociatedObject ()
	Returns the shared associated objects.
virtual int	Index ()
	Returns the index.
virtual bool	IsMirrored ()
	Returns a flag indicating whether the annotation is mirrored Created in NX8.5.0.
bool	IsVertical ()
	Returns a flag indicating whether the note is vertical.
virtual void	SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj)
	Sets the associated object.
virtual void	SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)
	Sets the business modifiers.
virtual void	SetIndex (int index)
	Sets the index.
void	SetVertical (bool isVertical)
	Sets a flag indicating whether the note is vertical.
void	UpdateFromRule ()
	Updates the specified note from the KF rule.

Detailed Description

This class represents a Drafting Viewing Direction Arrow Label.

Object of this class will be created when projected view is created and cannot be independently
There is no KF creator for this class.

Created in NX9.0.0.

---

The documentation for this class was generated from the following file:

• Drawings_ViewingDirectionArrowLabel.hxx
