Creates the builder for removing associated objects from the region
To create a new instance of this class, use Drawings::DrawingRegionCollection::CreateRemoveObjectsBuilder

Created in NX8.0.0. More...

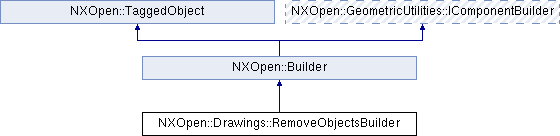

Inheritance diagram for NXOpen::Drawings::RemoveObjectsBuilder:

Public Member Functions
NXOpen::SelectNXObjectList *	Selection ()
	Returns the selection Created in NX8.0.0.

void	SetRegion (NXOpen::Drawings::DrawingRegion *region)
	Set the region Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Creates the builder for removing associated objects from the region
To create a new instance of this class, use Drawings::DrawingRegionCollection::CreateRemoveObjectsBuilder

Created in NX8.0.0.

Member Function Documentation

NXOpen::SelectNXObjectList* NXOpen::Drawings::RemoveObjectsBuilder::Selection ( )

Returns the selection
Created in NX8.0.0.

License requirements : None

void NXOpen::Drawings::RemoveObjectsBuilder::SetRegion ( NXOpen::Drawings::DrawingRegion * region )

Set the region
Created in NX8.0.0.

License requirements : nx_drafting_plus ("DraftingPlus")

Parameters

region region

The documentation for this class was generated from the following file:
