Represents a @link Drawings::DrawingCompareSettingsBuilder Drawings::DrawingCompareSettingsBuilder@endlink  builder  <br> To create a new instance of this class, use @link DrawingCompareManager::CreateDrawingCompareSettingsBuilder  DrawingCompareManager::CreateDrawingCompareSettingsBuilder @endlink  <br>

Default values. More...

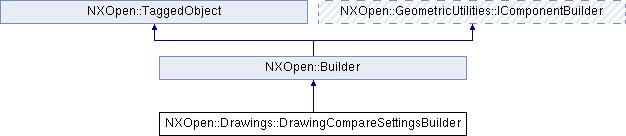

Inheritance diagram for NXOpen::Drawings::DrawingCompareSettingsBuilder:

Public Types
enum	ChangeSymbolType { ChangeSymbolTypeCircle, ChangeSymbolTypeTriangleUp, ChangeSymbolTypeTriangleDown, ChangeSymbolTypeSquare, ChangeSymbolTypeHexagon }
	Represents a Compare Settings Change symbol Types. More...

enum	ComparisonBaseline { ComparisonBaselineSnapshot, ComparisonBaselineTrackedChanges }
	Represents a Compare Settings ComparisonBaseline. More...

enum	FontType { FontTypeSolid, FontTypeDashed, FontTypePhantom, FontTypeCenterline, FontTypeDotted, FontTypeLongDash, FontTypeDottedDash }
	Represents a Compare Settings Change symbol font types. More...

enum	WidthType { WidthTypeThin, WidthTypeNormal, WidthTypeThick, WidthTypeOne = 5, WidthTypeTwo, WidthTypeThree, WidthTypeFour, WidthTypeFive, WidthTypeSix, WidthTypeSeven, WidthTypeEight, WidthTypeNine }
	Represents a Compare Settings Change symbol width types. More...

Public Member Functions
NXOpen::Drawings::DrawingCompareSettingsBuilder::ComparisonBaseline	BaselineForComparison ()
	Returns the baseline for comparison Created in NX7.5.0.

bool	CenterlineCompare ()
	Returns the centerline compare Created in NX7.5.0.

NXOpen::NXColor *	Color ()
	Returns the color Created in NX7.5.0.

double	CompareTolerance ()
	Returns the compare tolerance Created in NX7.5.0.

bool	CrosshatchAreaFillsCompare ()
	Returns the crosshatch area fills compare Created in NX7.5.0.

bool	DatumFeatureSymbolCompare ()
	Returns the datum feature symbol compare Created in NX7.5.0.

bool	DatumFeatureSymbolLeaderTerminatorCompare ()
	Returns the datum feature symbol leader info compare Created in NX7.5.0.

bool	DatumFeatureSymbolOriginCompare ()
	Returns the datum feature symbol origin compare Created in NX7.5.0.

bool	DatumFeatureSymbolRetainedStatusCompare ()
	Returns the datum feature symbol retained status compare Created in NX7.5.0.

bool	DatumFeatureSymbolTextCompare ()
	Returns the datum feature symbol text compare Created in NX7.5.0.

bool	DatumTargetCompare ()
	Returns the datum target compare Created in NX7.5.0.

bool	DatumTargetLeaderTerminatorCompare ()
	Returns the datum target leader info compare Created in NX7.5.0.

bool	DatumTargetOriginCompare ()
	Returns the datum target origin compare Created in NX7.5.0.

bool	DatumTargetRetainedStatusCompare ()
	Returns the datum target retained status compare Created in NX7.5.0.

bool	DatumTargetTextCompare ()
	Returns the datum target text compare Created in NX7.5.0.

bool	DimCompare ()
	Returns the dim compare Created in NX7.5.0.

bool	DimOriginCompare ()
	Returns the dim origin compare Created in NX7.5.0.

bool	DimRetainedStatusCompare ()
	Returns the dim retained status compare Created in NX7.5.0.

bool	DimSizeCompare ()
	Returns the dim size compare Created in NX7.5.0.

bool	DisplayChangeSymbol ()
	Returns the display change symbol Created in NX7.5.0.

bool	FcfCompare ()
	Returns the fcf compare Created in NX7.5.0.

bool	FcfLeaderTerminatorCompare ()
	Returns the fcf leader info compare Created in NX7.5.0.

bool	FcfOriginCompare ()
	Returns the fcf origin compare Created in NX7.5.0.

bool	FcfRetainedStatusCompare ()
	Returns the fcf retained status compare Created in NX7.5.0.

bool	FcfTextCompare ()
	Returns the fcf text compare Created in NX7.5.0.

bool	NoteCompare ()
	Returns the note compare Created in NX7.5.0.

bool	NoteLeaderTerminatorCompare ()
	Returns the note leader info compare Created in NX7.5.0.

bool	NoteOriginCompare ()
	Returns the note origin compare Created in NX7.5.0.

bool	NoteRetainedStatusCompare ()
	Returns the note retained status compare Created in NX7.5.0.

bool	NoteTextCompare ()
	Returns the note text compare Created in NX7.5.0.

bool	PartListCompare ()
	Returns the part list compare Created in NX7.5.0.

bool	RestartNumbers ()
	Returns the restart numbers Created in NX7.5.0.

void	SetBaselineForComparison (NXOpen::Drawings::DrawingCompareSettingsBuilder::ComparisonBaseline baselineForComparison)
	Sets the baseline for comparison Created in NX7.5.0.

void	SetCenterlineCompare (bool centerlineCompare)
	Sets the centerline compare Created in NX7.5.0.

void	SetColor (NXOpen::NXColor *color)
	Sets the color Created in NX7.5.0.

void	SetCompareTolerance (double compareTolerance)
	Sets the compare tolerance Created in NX7.5.0.

void	SetCrosshatchAreaFillsCompare (bool crosshatchAreaFillsCompare)
	Sets the crosshatch area fills compare Created in NX7.5.0.

void	SetDatumFeatureSymbolCompare (bool datumFeatureSymbolCompare)
	Sets the datum feature symbol compare Created in NX7.5.0.

void	SetDatumFeatureSymbolLeaderTerminatorCompare (bool datumFeatureSymbolLeaderTerminatorCompare)
	Sets the datum feature symbol leader info compare Created in NX7.5.0.

void	SetDatumFeatureSymbolOriginCompare (bool datumFeatureSymbolOriginCompare)
	Sets the datum feature symbol origin compare Created in NX7.5.0.

void	SetDatumFeatureSymbolRetainedStatusCompare (bool datumFeatureSymbolRetainedStatusCompare)
	Sets the datum feature symbol retained status compare Created in NX7.5.0.

void	SetDatumFeatureSymbolTextCompare (bool datumFeatureSymbolTextCompare)
	Sets the datum feature symbol text compare Created in NX7.5.0.

void	SetDatumTargetCompare (bool datumTargetCompare)
	Sets the datum target compare Created in NX7.5.0.

void	SetDatumTargetLeaderTerminatorCompare (bool datumTargetLeaderTerminatorCompare)
	Sets the datum target leader info compare Created in NX7.5.0.

void	SetDatumTargetOriginCompare (bool datumTargetOriginCompare)
	Sets the datum target origin compare Created in NX7.5.0.

void	SetDatumTargetRetainedStatusCompare (bool datumTargetRetainedStatusCompare)
	Sets the datum target retained status compare Created in NX7.5.0.

void	SetDatumTargetTextCompare (bool datumTargetTextCompare)
	Sets the datum target text compare Created in NX7.5.0.

void	SetDimCompare (bool dimCompare)
	Sets the dim compare Created in NX7.5.0.

void	SetDimOriginCompare (bool dimOriginCompare)
	Sets the dim origin compare Created in NX7.5.0.

void	SetDimRetainedStatusCompare (bool dimRetainedStatusCompare)
	Sets the dim retained status compare Created in NX7.5.0.

void	SetDimSizeCompare (bool dimSizeCompare)
	Sets the dim size compare Created in NX7.5.0.

void	SetDisplayChangeSymbol (bool displayChangeSymbol)
	Sets the display change symbol Created in NX7.5.0.

void	SetFcfCompare (bool fcfCompare)
	Sets the fcf compare Created in NX7.5.0.

void	SetFcfLeaderTerminatorCompare (bool fcfLeaderTerminatorCompare)
	Sets the fcf leader info compare Created in NX7.5.0.

void	SetFcfOriginCompare (bool fcfOriginCompare)
	Sets the fcf origin compare Created in NX7.5.0.

void	SetFcfRetainedStatusCompare (bool fcfRetainedStatusCompare)
	Sets the fcf retained status compare Created in NX7.5.0.

void	SetFcfTextCompare (bool fcfTextCompare)
	Sets the fcf text compare Created in NX7.5.0.

void	SetNoteCompare (bool noteCompare)
	Sets the note compare Created in NX7.5.0.

void	SetNoteLeaderTerminatorCompare (bool noteLeaderTerminatorCompare)
	Sets the note leader info compare Created in NX7.5.0.

void	SetNoteOriginCompare (bool noteOriginCompare)
	Sets the note origin compare Created in NX7.5.0.

void	SetNoteRetainedStatusCompare (bool noteRetainedStatusCompare)
	Sets the note retained status compare Created in NX7.5.0.

void	SetNoteTextCompare (bool noteTextCompare)
	Sets the note text compare Created in NX7.5.0.

void	SetPartListCompare (bool partListCompare)
	Sets the part list compare Created in NX7.5.0.

void	SetRestartNumbers (bool restartNumbers)
	Sets the restart numbers Created in NX7.5.0.

void	SetSheetCompare (bool sheetCompare)
	Sets the sheet compare Created in NX7.5.0.

void	SetSymbolCompare (bool symbolCompare)
	Sets the symbol compare Created in NX7.5.0.

void	SetSymbolFont (NXOpen::Drawings::DrawingCompareSettingsBuilder::FontType symbolFont)
	Sets the symbol font Created in NX7.5.0.

void	SetSymbolLeaderTerminatorCompare (bool symbolLeaderTerminatorCompare)
	Sets the symbol leader info compare Created in NX7.5.0.

void	SetSymbolOriginCompare (bool symbolOriginCompare)
	Sets the symbol origin compare Created in NX7.5.0.

void	SetSymbolRetainedStatusCompare (bool symbolRetainedStatusCompare)
	Sets the symbol retained status compare Created in NX7.5.0.

void	SetSymbolSize (double symbolSize)
	Sets the symbol size Created in NX7.5.0.

void	SetSymbolTextCompare (bool symbolTextCompare)
	Sets the symbol text compare Created in NX7.5.0.

void	SetSymbolType (NXOpen::Drawings::DrawingCompareSettingsBuilder::ChangeSymbolType symbolType)
	Sets the symbol type Created in NX7.5.0.

void	SetSymbolWidth (NXOpen::Drawings::DrawingCompareSettingsBuilder::WidthType symbolWidth)
	Sets the symbol width Created in NX7.5.0.

void	SetTableCompare (bool tableCompare)
	Sets the table compare Created in NX7.5.0.

void	SetViewCompare (bool viewCompare)
	Sets the view compare Created in NX7.5.0.

bool	SheetCompare ()
	Returns the sheet compare Created in NX7.5.0.

bool	SymbolCompare ()
	Returns the symbol compare Created in NX7.5.0.

NXOpen::Drawings::DrawingCompareSettingsBuilder::FontType	SymbolFont ()
	Returns the symbol font Created in NX7.5.0.

bool	SymbolLeaderTerminatorCompare ()
	Returns the symbol leader info compare Created in NX7.5.0.

bool	SymbolOriginCompare ()
	Returns the symbol origin compare Created in NX7.5.0.

bool	SymbolRetainedStatusCompare ()
	Returns the symbol retained status compare Created in NX7.5.0.

double	SymbolSize ()
	Returns the symbol size Created in NX7.5.0.

bool	SymbolTextCompare ()
	Returns the symbol text compare Created in NX7.5.0.

NXOpen::Drawings::DrawingCompareSettingsBuilder::ChangeSymbolType	SymbolType ()
	Returns the symbol type Created in NX7.5.0.

NXOpen::Drawings::DrawingCompareSettingsBuilder::WidthType	SymbolWidth ()
	Returns the symbol width Created in NX7.5.0.

bool	TableCompare ()
	Returns the table compare Created in NX7.5.0.

bool	ViewCompare ()
	Returns the view compare Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Drawings::DrawingCompareSettingsBuilder Drawings::DrawingCompareSettingsBuilder@endlink  builder  <br> To create a new instance of this class, use @link DrawingCompareManager::CreateDrawingCompareSettingsBuilder  DrawingCompareManager::CreateDrawingCompareSettingsBuilder @endlink  <br>

Default values.

Property

Value

BaselineForComparison

Snapshot

CenterlineCompare

1

CompareTolerance

0.001

CrosshatchAreaFillsCompare

1

DatumFeatureSymbolCompare

1

DatumFeatureSymbolLeaderTerminatorCompare

0

DatumFeatureSymbolOriginCompare

0

DatumFeatureSymbolRetainedStatusCompare

0

DatumFeatureSymbolTextCompare

0

DatumTargetCompare

1

DatumTargetLeaderTerminatorCompare

0

DatumTargetOriginCompare

0

DatumTargetRetainedStatusCompare

0

DatumTargetTextCompare

0

DimCompare

1

DimOriginCompare

0

DimRetainedStatusCompare

0

DimSizeCompare

0

DisplayChangeSymbol

0

FcfCompare

1

FcfLeaderTerminatorCompare

0

FcfOriginCompare

0

FcfRetainedStatusCompare

0

FcfTextCompare

0

NoteCompare

1

NoteLeaderTerminatorCompare

0

NoteOriginCompare

0

NoteRetainedStatusCompare

0

NoteTextCompare

0

PartListCompare

1

RestartNumbers

0

SheetCompare

1

SymbolCompare

1

SymbolFont

Solid

SymbolLeaderTerminatorCompare

0

SymbolOriginCompare

0

SymbolRetainedStatusCompare

0

SymbolSize

0

SymbolTextCompare

0

SymbolType

Circle

SymbolWidth

Thin

TableCompare

1

ViewCompare

1

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Drawings::DrawingCompareSettingsBuilder::ChangeSymbolType

Represents a Compare Settings Change symbol Types.

Enumerator:

ChangeSymbolTypeCircle	circle
ChangeSymbolTypeTriangleUp	triangle up
ChangeSymbolTypeTriangleDown	triangle down
ChangeSymbolTypeSquare	square
ChangeSymbolTypeHexagon	hexagon

enum NXOpen::Drawings::DrawingCompareSettingsBuilder::ComparisonBaseline

Represents a Compare Settings ComparisonBaseline.

Enumerator:

ComparisonBaselineSnapshot	snapshot
ComparisonBaselineTrackedChanges	tracked changes

enum NXOpen::Drawings::DrawingCompareSettingsBuilder::FontType

Represents a Compare Settings Change symbol font types.

Enumerator:

FontTypeSolid	solid
FontTypeDashed	dashed
FontTypePhantom	phantom
FontTypeCenterline	centerline
FontTypeDotted	dotted
FontTypeLongDash	long dash
FontTypeDottedDash	dotted dash

enum NXOpen::Drawings::DrawingCompareSettingsBuilder::WidthType

Represents a Compare Settings Change symbol width types.

Enumerator:

WidthTypeThin	Thin.
WidthTypeNormal	Normal.
WidthTypeThick	Thick.
WidthTypeTwo	Width Two.
WidthTypeThree	Width Three.
WidthTypeFour	Width Four.
WidthTypeFive	Width Five.
WidthTypeSix	Width Six.
WidthTypeSeven	Width Seven.
WidthTypeEight	Width Eight.
WidthTypeNine	Width Nine.

Member Function Documentation

NXOpen::Drawings::DrawingCompareSettingsBuilder::ComparisonBaseline NXOpen::Drawings::DrawingCompareSettingsBuilder::BaselineForComparison ( )

Returns the baseline for comparison
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::CenterlineCompare ( )

Returns the centerline compare
Created in NX7.5.0.

License requirements : None

NXOpen::NXColor* NXOpen::Drawings::DrawingCompareSettingsBuilder::Color ( )

Returns the color
Created in NX7.5.0.

License requirements : None

double NXOpen::Drawings::DrawingCompareSettingsBuilder::CompareTolerance ( )

Returns the compare tolerance
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::CrosshatchAreaFillsCompare ( )

Returns the crosshatch area fills compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumFeatureSymbolCompare ( )

Returns the datum feature symbol compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumFeatureSymbolLeaderTerminatorCompare ( )

Returns the datum feature symbol leader info compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumFeatureSymbolOriginCompare ( )

Returns the datum feature symbol origin compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumFeatureSymbolRetainedStatusCompare ( )

Returns the datum feature symbol retained status compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumFeatureSymbolTextCompare ( )

Returns the datum feature symbol text compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumTargetCompare ( )

Returns the datum target compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumTargetLeaderTerminatorCompare ( )

Returns the datum target leader info compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumTargetOriginCompare ( )

Returns the datum target origin compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumTargetRetainedStatusCompare ( )

Returns the datum target retained status compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DatumTargetTextCompare ( )

Returns the datum target text compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DimCompare ( )

Returns the dim compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DimOriginCompare ( )

Returns the dim origin compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DimRetainedStatusCompare ( )

Returns the dim retained status compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DimSizeCompare ( )

Returns the dim size compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::DisplayChangeSymbol ( )

Returns the display change symbol
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::FcfCompare ( )

Returns the fcf compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::FcfLeaderTerminatorCompare ( )

Returns the fcf leader info compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::FcfOriginCompare ( )

Returns the fcf origin compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::FcfRetainedStatusCompare ( )

Returns the fcf retained status compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::FcfTextCompare ( )

Returns the fcf text compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::NoteCompare ( )

Returns the note compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::NoteLeaderTerminatorCompare ( )

Returns the note leader info compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::NoteOriginCompare ( )

Returns the note origin compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::NoteRetainedStatusCompare ( )

Returns the note retained status compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::NoteTextCompare ( )

Returns the note text compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::PartListCompare ( )

Returns the part list compare
Created in NX7.5.0.

License requirements : None

bool NXOpen::Drawings::DrawingCompareSettingsBuilder::RestartNumbers ( )

Returns the restart numbers
Created in NX7.5.0.

License requirements : None

void NXOpen::Drawings::DrawingCompareSettingsBuilder::SetBaselineForComparison ( NXOpen::Drawings::DrawingCompareSettingsBuilder::ComparisonBaseline baselineForComparison )

Sets the baseline for comparison
Created in NX7.5.0.
