NXOpen::Drawings::DraftingView Class Reference

Represents a drafting view. More...

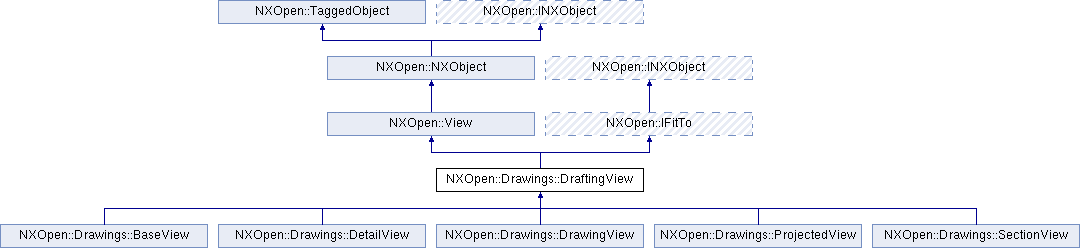

Inheritance diagram for NXOpen::Drawings::DraftingView:

Public Member Functions
void	ActivateForSketching ()
	Sets this drafting view as the active sketch view.
void	CheckForInvalidParentModelView ()
	Checks the view's validity by looking at the parent model view Created in NX8.0.3.
void	Commit ()
	Commits and applies all the settings like Drawings::ViewStyle to the View.This must be called on the view after creation or edit to reflect all the settings on it Created in NX5.0.0.
NXOpen::Drawings::DraftingBodyCollection *	DraftingBodies ()
	Returns the DraftingBodyCollection Created in NX8.5.0.
void	GetBrokenViewInternalViews (std::vector< NXOpen::Drawings::DraftingView * > &views)
	Returns an array of views representing the internal views of broken view.
NXOpen::Point3d	GetDrawingReferencePoint ()
	Returns the view origin(location).
void	GetToolMarkers (std::vector< NXOpen::Drawings::FlatPatternObject * > &markers)
	Returns an array of pointers to objects representing the tool markers in the view.
void	HideComponents (const std::vector< NXOpen::NXObject * > &components)
	Sets the view origin at the provided location.
void	HideViewBorder ()
	Hide the view border of the view.
bool	IsActiveForSketching ()
	Returns true if this view is the active sketch view.
bool	IsBroken ()
	Returns the status on whether this DraftingView is broken.
bool	IsOutOfDate ()
	Returns the status on whether this DraftingView is out of date.
void	MoveView (const NXOpen::Point3d &drawingReferencePoint)
	Sets the view origin at the provided location.
void	RestoreViewBorder ()
	Restores the view border from the dashed line to the normal line for cut operation Created in NX8.0.0.
void	SetDrawingReferencePoint (const NXOpen::Point3d &drawingReferencePoint)
	Sets the view origin at the provided location.
void	ShowComponents (const std::vector< NXOpen::NXObject * > &components)
	Sets the view origin at the provided location.
void	ShowViewBorder ()
	Show the view border of the view.
NXOpen::Drawings::ViewStyle *	Style ()
	Returns object to View Style Created in NX3.0.0.
void	Update ()
	Updates the drawing member view on a drawing.
NXOpen::Drawings::ViewBreakCollection *	ViewBreaks ()
	Returns the ViewBreakCollection instance belonging to this view Created in NX7.5.0.
Public Member Functions inherited from NXOpen::View
NXOpen::Point3d	AbsoluteOrigin ()
	Returns the view origin in absolute space.
std::vector < NXOpen::DisplayableObject * >	AskVisibleObjects ()
	Returns an array of objects visible in a view.
void	Concatenate (const NXOpen::Point3d &translation)
	Concatenates the given translation with the previous viewing transformation of the specified view.
void	Concatenate (double scale)
	Concatenates the given scale with the previous viewing transformation of the specified view.
void	Concatenate (const NXOpen::Point3d &translation, double scale)
	Concatenates the given translation and scale with the previous viewing transformation of the specified view.
void	Concatenate (const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given rotation with the previous viewing transformation of the specified view.
void	Concatenate (const NXOpen::Point3d &translation, const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given translation and rotation with the previous viewing transformation of the specified view.
void	Concatenate (double scale, const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given scale and rotation with the previous viewing transformation of the specified view.
void	Concatenate (const NXOpen::Point3d &translation, double scale, const NXOpen::Point3d &centerOfRotation, const NXOpen::Vector3d &rotationAxis, double angle)
	Concatenates the given translation, scale and rotation with the previous viewing transformation of the specified view.
NXOpen::ViewDependentDisplayManager *	DependentDisplay ()
	Returns an object to perform all view dependent display operations Created in NX3.0.0.
void	Expand ()
	Expands the specified view to fill as much of the layout which contains the view as possible, without changing the aspect ratio of the view.
void	Fit ()
	Adjusts the bounds of a given view so that it fully encompasses the extents of the model geometry.
void	FitAfterShowOrHide (NXOpen::View::ShowOrHideType type)
	Adjusts the bounds of a given view conditionally so that it fully encompasses the extents of the model geometry.
void	FitToObjects (const std::vector< NXOpen::IFitTo * > &objects)
	Adjusts the bounds of a given view so that it fully encompasses the extents of the given objects.
NXOpen::Vector3d	GetAxis (NXOpen::XYZAxis xYZAxis)
	Returns one of the view axes.
bool	LockRotations ()
	Returns the "Lock Rotations" toggle state of a view.
void	MakeWork ()
	Makes the given view the work view.
NXOpen::Matrix3x3	Matrix ()
	Returns the view matrix.
void	Orient (const NXOpen::Matrix3x3 &matrix)
	Changes the view orientation relative to the specified absolute coordinate system.
void	Orient (NXOpen::View::Canned viewName, NXOpen::View::ScaleAdjustment viewScale)
	Changes the view orientation to a specified canned view.
void	Orient (const NXString &viewName, NXOpen::View::ScaleAdjustment viewScale)
	Changes the view orientation to a specified view.
void	Orient (const char *viewName, NXOpen::View::ScaleAdjustment viewScale)
	Changes the view orientation to a specified view.
NXOpen::Point3d	Origin ()
	Returns the view origin.
void	Regenerate ()
	Regenerates the display of given view.
NXOpen::View::RenderingStyleType	RenderingStyle ()
	Returns the rendering style of the view.
bool	Restore ()
	Restores a view to its last remembered rotation, scale and translation.
void	Rotate (const NXOpen::Matrix3x3 &matrix)
	Rotates the view by concatenating the given matrix to the existing rotation matrix of the view.
void	Rotate (const NXOpen::Point3d &origin, const NXOpen::Vector3d &vector, double angle)
	Rotates the specified view using the specified origin of rotation and about the specified axis.
double	Scale ()
	Returns the view scale Created in NX3.0.0.
void	SetLockRotations (bool newToggleState)
	Sets the "Lock Rotations" toggle state of a view.
void	SetOrigin (const NXOpen::Point3d &origin)
	Moves the given position to the center of the view.
void	SetRenderingStyle (NXOpen::View::RenderingStyleType renderingStyle)
	Sets the rendering style of the view.
void	SetRotationTranslationScale (const NXOpen::Matrix3x3 &rotMatrix, const NXOpen::Point3d &translation, double scale)
	Sets the rotation, translation and scale of the specified view.
void	SetScale (double scale)
	Sets the scale of the specified view to the desired scale factor.
void	SetSyncViews (bool newToggleState)
	Sets the "Synchronized Views" toggle state of a view.
void	SnapToClosestCannedOrientation ()
	Changes the orientation of the given view to the orientation of the canned view whose orientation is the closest to that of the given view.
void	SnapToVariantCannedOrientation ()
	Similar to View::SnapToClosestCannedOrientation except it changes the orientation of the given view to the orientation of some canned view "variant" based on I-deas's 'snapview' logic whose orientation is the closest to one of the six orthographic and eight flavors of trimetric views.
bool	SyncViews ()
	Returns the "Synchronized Views" toggle state of a view.
void	UpdateCustomSymbols ()
	Updates custom symbol in a drawing member view or drawing sheet Created in NX8.0.1.
void	UpdateDisplay ()
	Updates the display of given view, as needed.
NXOpen::Preferences::ViewVisualizationSpecialEffects *	VisualizationSpecialEffectsPreferences ()
	Returns an object to perform all visualization Special Effects related preferences settings Created in NX3.0.0.
NXOpen::Preferences::ViewVisualizationVisual *	VisualizationVisualPreferences ()
	Returns an object to perform all visualization related preferences settings Created in NX3.0.0.
void	Zoom (NXOpen::View::ScaleFactor scaleFactor)
	Scales the specified view to a desired relative scale.
void	ZoomAboutPoint (double relativeScale, const NXOpen::Point3d &scaleAboutPoint, const NXOpen::Point3d &viewCenter)
	Scales the specified view such that the given scale_about_point does not move.
void	ZoomByRectangle (const NXOpen::Point3d &corner1, const NXOpen::Point3d &corner2)
	Scales the specified view such that the specified rectangle is as large as possible while being fully contained within the viewport.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::View
enum	Canned {   CannedTop, CannedFront, CannedRight, CannedBack,   CannedBottom, CannedLeft, CannedIsometric, CannedTrimetric }
	Describes a simplified indexing scheme for accessing canned views with interfaces that use this enum as a parameter. More...
enum	RenderingStyleType {   RenderingStyleTypeShadedWithEdges, RenderingStyleTypeShadedWithBodyColorEdges, RenderingStyleTypeShaded, RenderingStyleTypeWireframeWithDimEdges,   RenderingStyleTypeWireframeWithHiddenEdges, RenderingStyleTypeWireframeWithDashedEdges, RenderingStyleTypeStudio, RenderingStyleTypeFaceAnalysis,   RenderingStyleTypePartiallyShaded, RenderingStyleTypeStaticWireframe }
	Describes the rendering style for geometry displayed in the view. More...
enum	ScaleAdjustment { ScaleAdjustmentFit, ScaleAdjustmentCurrent, ScaleAdjustmentSaved }
	Describes simple, predefined adjustments that may be applied to a view's scale while another operation is performed, in conjunction, on the view. More...
enum	ScaleFactor { ScaleFactorHalfScale, ScaleFactorDoubleScale, ScaleFactorReduceScale, ScaleFactorIncreaseScale }
	Describes the relative scales to which a view can be set. More...
enum	ShowOrHideType { ShowOrHideTypeShowOnly, ShowOrHideTypeHideOnly, ShowOrHideTypeBothShowAndHide, ShowOrHideTypeInvertShownAndHidden }
	Specifies whether a show or hide operation, or both, has just been done. More...

Detailed Description

Represents a drafting view.

To obtain an instance of this class, use Drawings::DrawingSheet::SheetDraftingViews or Part::DraftingViews

Created in NX3.0.0.

Member Function Documentation

void NXOpen::Drawings::DraftingView::ActivateForSketching

(

)

Sets this drafting view as the active sketch view.

Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Drawings::DraftingView::CheckForInvalidParentModelView

(

)

Checks the view's validity by looking at the parent model view
Created in NX8.0.3.

License requirements : drafting ("DRAFTING")

void NXOpen::Drawings::DraftingView::Commit

(

)

Commits and applies all the settings like Drawings::ViewStyle to the View.This must be called on the view after creation or edit to reflect all the settings on it
Created in NX5.0.0.

License requirements : drafting ("DRAFTING")

NXOpen::Drawings::DraftingBodyCollection* NXOpen::Drawings::DraftingView::DraftingBodies

(

)

Returns the DraftingBodyCollection
Created in NX8.5.0.

void NXOpen::Drawings::DraftingView::GetBrokenViewInternalViews

(

std::vector< NXOpen::Drawings::DraftingView * > &

views

)

Returns an array of views representing the internal views of broken view.

Other views return zero objects.
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

views

views

NXOpen::Point3d NXOpen::Drawings::DraftingView::GetDrawingReferencePoint

(

)

Returns the view origin(location).

Returns

View origin(location)
Created in NX5.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Drawings::DraftingView::GetToolMarkers

(

std::vector< NXOpen::Drawings::FlatPatternObject * > &

markers

)

Returns an array of pointers to objects representing the tool markers in the view.

Pertains to flat pattern views. Other views return zero objects.
Created in NX6.0.3.

License requirements : drafting ("DRAFTING") OR sheet_metal ("SHEET METAL DESIGN")

Parameters

markers

markers

void NXOpen::Drawings::DraftingView::HideComponents

(

const std::vector< NXOpen::NXObject * > &

components

)

Sets the view origin at the provided location.

Created in NX5.0.0.

License requirements : drafting ("DRAFTING")

Parameters

components

Components

void NXOpen::Drawings::DraftingView::HideViewBorder

(

)

Hide the view border of the view.

Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

bool NXOpen::Drawings::DraftingView::IsActiveForSketching

(

)

Returns true if this view is the active sketch view.

Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

bool NXOpen::Drawings::DraftingView::IsBroken

(

)

Returns the status on whether this DraftingView is broken.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Drawings::DraftingView::IsOutOfDate

(

)

Returns the status on whether this DraftingView is out of date.

Created in NX3.0.0.

License requirements : None

void NXOpen::Drawings::DraftingView::MoveView

(

const NXOpen::Point3d &

drawingReferencePoint

)

Sets the view origin at the provided location.

Created in NX5.0.0.

License requirements : drafting ("DRAFTING")

Parameters

drawingReferencePoint

New view origin(location)

void NXOpen::Drawings::DraftingView::RestoreViewBorder

(

)

Restores the view border from the dashed line to the normal line for cut operation
Created in NX8.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Drawings::DraftingView::SetDrawingReferencePoint

(

const NXOpen::Point3d &

drawingReferencePoint

)

Sets the view origin at the provided location.

Created in NX5.0.0.

License requirements : drafting ("DRAFTING")

Parameters

drawingReferencePoint

New view origin(location)

void NXOpen::Drawings::DraftingView::ShowComponents

(

const std::vector< NXOpen::NXObject * > &

components

)

Sets the view origin at the provided location.

Created in NX5.0.0.

License requirements : drafting ("DRAFTING")

Parameters

components

Components

void NXOpen::Drawings::DraftingView::ShowViewBorder

(

)

Show the view border of the view.

Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

NXOpen::Drawings::ViewStyle* NXOpen::Drawings::DraftingView::Style

(

)

Returns object to View Style
Created in NX3.0.0.

void NXOpen::Drawings::DraftingView::Update

(

)

Updates the drawing member view on a drawing.

The view update process includes updating the view bounds, resectioning section views, updating silhouettes, and updating hidden line display when applicable.

Created in NX3.0.0.

License requirements : drafting ("DRAFTING")

NXOpen::Drawings::ViewBreakCollection* NXOpen::Drawings::DraftingView::ViewBreaks

(

)

Returns the ViewBreakCollection instance belonging to this view
Created in NX7.5.0.

---

The documentation for this class was generated from the following file:

• Drawings_DraftingView.hxx
