Represents a planar ship grid. More...

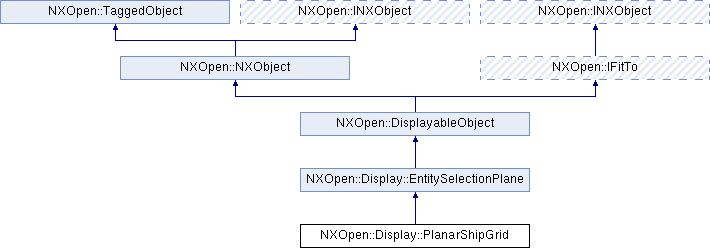

Inheritance diagram for NXOpen::Display::PlanarShipGrid:

Public Member Functions
void	AddDatumPlanes (const std::vector< NXOpen::DatumPlane * > &datumplaneTags)
	Adds intersected datum planes into the planar grid.

bool	IsDatumPlaneInGrid (NXOpen::DatumPlane *datumplaneTag)
	Returns the flag to indicate whether the specific datum plane is in grid or not.

void	RemoveDatumPlanes (const std::vector< NXOpen::DatumPlane * > &datumplaneTags)
	Removes the specific datum planes from the planar grid.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...

enum	ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a planar ship grid.

Planar ship grid is not supported in KF.

Created in NX8.0.0.

Member Function Documentation

void NXOpen::Display::PlanarShipGrid::AddDatumPlanes ( const std::vector< NXOpen::DatumPlane * > & datumplaneTags )

Adds intersected datum planes into the planar grid.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

datumplaneTags Array of datum planes

bool NXOpen::Display::PlanarShipGrid::IsDatumPlaneInGrid ( NXOpen::DatumPlane * datumplaneTag )

Returns the flag to indicate whether the specific datum plane is in grid or not.

Returns: Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

datumplaneTag datumplanetag

void NXOpen::Display::PlanarShipGrid::RemoveDatumPlanes ( const std::vector< NXOpen::DatumPlane * > & datumplaneTags )

Removes the specific datum planes from the planar grid.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

datumplaneTags Array of datum planes

The documentation for this class was generated from the following file:
