Represents a Display::CgfxAttributeValueColor3Builder builder
This class is restricted to being called from a program running during an Interactive NX session. More...

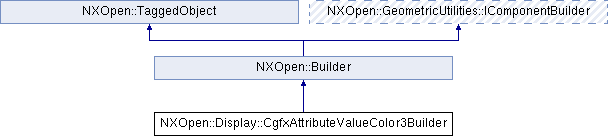

Inheritance diagram for NXOpen::Display::CgfxAttributeValueColor3Builder:

Public Member Functions
std::vector< double >	GetColor3Value ()
	Gets the CgFX material attribute's array of 3 double values used to represent a color (RGB)

void	SetColor3Value (const std::vector< double > &color3Value)
	Sets the CgFX material attribute's array of 3 double values used to represent a color (RGB) Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Display::CgfxAttributeValueColor3Builder builder
This class is restricted to being called from a program running during an Interactive NX session.

If run from a non-interactive session it will return NULL.

Created in NX5.0.0.

Member Function Documentation

std::vector<double> NXOpen::Display::CgfxAttributeValueColor3Builder::GetColor3Value ( )

Gets the CgFX material attribute's array of 3 double values used to represent a color (RGB)

Returns: Array of 3 RGB values, each between 0.0 and 1.0
Created in NX5.0.0.

License requirements : None

void NXOpen::Display::CgfxAttributeValueColor3Builder::SetColor3Value ( const std::vector< double > & color3Value )

Sets the CgFX material attribute's array of 3 double values used to represent a color (RGB)
Created in NX5.0.0.

License requirements : None

Parameters

color3Value Array of 3 RGB values, each between 0.0 and 1.0

The documentation for this class was generated from the following file:
