Represents a Catiav4Importer to be used when importing the CATIA V4 Data This class is created using DexManager . More...

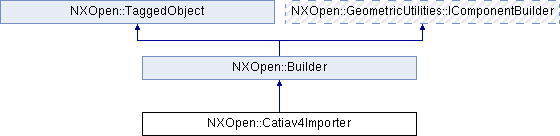

Inheritance diagram for NXOpen::Catiav4Importer:

Public Member Functions
bool	FileOpenFlag ()
	Returns the file open flag - should be set to false if doing file import Created in NX6.0.0.

bool	HealBodies ()
	Returns the heal bodies - if set to true then imported data will be healed Created in NX6.0.0.

NXString	InputFile ()
	Returns the input file - name of a file which is being imported Created in NX6.0.0.

bool	Optimize ()
	Returns the optimize - if set to true then toplogy will be optimized Created in NX6.0.0.

void	SaveSettings (const NXString &filename)
	Save the settings - this will save the settings to a file sepcified Created in NX6.0.0.

void	SaveSettings (const char *filename)
	Save the settings - this will save the settings to a file sepcified Created in NX6.0.0.

void	SetFileOpenFlag (bool doingFileOpen)
	Sets the file open flag - should be set to false if doing file import Created in NX6.0.0.

void	SetHealBodies (bool healBodies)
	Sets the heal bodies - if set to true then imported data will be healed Created in NX6.0.0.

void	SetInputFile (const NXString &filename)
	Sets the input file - name of a file which is being imported Created in NX6.0.0.

void	SetInputFile (const char *filename)
	Sets the input file - name of a file which is being imported Created in NX6.0.0.

void	SetOptimize (bool optimize)
	Sets the optimize - if set to true then toplogy will be optimized Created in NX6.0.0.

void	SetSettingsFile (const NXString &filename)
	Sets the settings file - definition file for default settings Created in NX6.0.0.

void	SetSettingsFile (const char *filename)
	Sets the settings file - definition file for default settings Created in NX6.0.0.

void	SetSimplifyGeometry (bool simplifyGeometry)
	Sets the simplify Geometry - if set to true then imported data will be simplified Created in NX6.0.0.

NXString	SettingsFile ()
	Returns the settings file - definition file for default settings Created in NX6.0.0.

bool	SimplifyGeometry ()
	Returns the simplify Geometry - if set to true then imported data will be simplified Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Catiav4Importer to be used when importing the CATIA V4 Data This class is created using DexManager .

NULL object will be returned from Commit()  <br> To create a new instance of this class, use @link DexManager::CreateCatiav4Importer  DexManager::CreateCatiav4Importer @endlink  <br>

Default values.

Property

Value

HealBodies

0

Optimize

0

SimplifyGeometry

0

Created in NX6.0.0.

Member Function Documentation

bool NXOpen::Catiav4Importer::FileOpenFlag ( )

Returns the file open flag - should be set to false if doing file import
Created in NX6.0.0.

License requirements : None

bool NXOpen::Catiav4Importer::HealBodies ( )

Returns the heal bodies - if set to true then imported data will be healed
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Catiav4Importer::InputFile ( )

Returns the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

bool NXOpen::Catiav4Importer::Optimize ( )

Returns the optimize - if set to true then toplogy will be optimized
Created in NX6.0.0.

License requirements : None

void NXOpen::Catiav4Importer::SaveSettings ( const NXString & filename )

Save the settings - this will save the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Catiav4Importer::SaveSettings ( const char * filename )

Save the settings - this will save the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Catiav4Importer::SetFileOpenFlag ( bool doingFileOpen )

Sets the file open flag - should be set to false if doing file import
Created in NX6.0.0.

License requirements : None

Parameters

doingFileOpen doingfileopen

void NXOpen::Catiav4Importer::SetHealBodies ( bool healBodies )

Sets the heal bodies - if set to true then imported data will be healed
Created in NX6.0.0.

License requirements : None

Parameters

healBodies healbodies

void NXOpen::Catiav4Importer::SetInputFile ( const NXString & filename )

Sets the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Catiav4Importer::SetInputFile ( const char * filename )

Sets the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Catiav4Importer::SetOptimize ( bool optimize )

Sets the optimize - if set to true then toplogy will be optimized
Created in NX6.0.0.

License requirements : None

Parameters

optimize optimize

void NXOpen::Catiav4Importer::SetSettingsFile ( const NXString & filename )

Sets the settings file - definition file for default settings
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Catiav4Importer::SetSettingsFile ( const char * filename )

Sets the settings file - definition file for default settings
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Catiav4Importer::SetSimplifyGeometry ( bool simplifyGeometry )

Sets the simplify Geometry - if set to true then imported data will be simplified
Created in NX6.0.0.

License requirements : None

Parameters

simplifyGeometry simplifygeometry

NXString NXOpen::Catiav4Importer::SettingsFile ( )

Returns the settings file - definition file for default settings
Created in NX6.0.0.

License requirements : None

bool NXOpen::Catiav4Importer::SimplifyGeometry ( )

Returns the simplify Geometry - if set to true then imported data will be simplified
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Catiav4Importer.hxx
