Represents a Wire Tool
To create a new instance of this class, use CAM::NCGroupCollection::CreateWireTool
Created in NX9.0.0.
More...

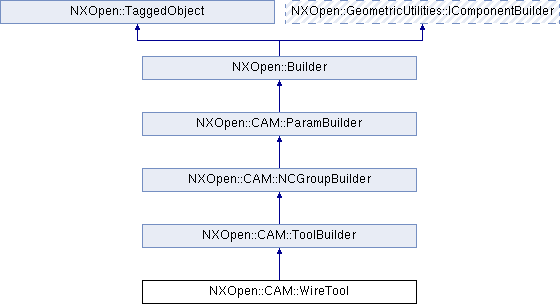

Inheritance diagram for NXOpen::CAM::WireTool:
Public Member Functions | |
| NXOpen::CAM::InheritableIntBuilder * | AdjReg () |
| Returns the Adjust Register Created in NX9.0.0. | |
| NXOpen::CAM::WireGuide * | CreateWireGuide () |
| Create a wire guide. | |
| NXOpen::CAM::InheritableIntBuilder * | CutcomReg () |
| Returns the Cutcom Register Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | Diameter () |
| Returns the Tool Diameter (inheritable double) Created in NX9.0.0. | |
| NXOpen::CAM::WireGuideList * | WireGuideList () |
| Returns the wire guide list Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::CAM::ToolBuilder | |
| NXString | ChannelName () |
| Returns the channel's name Created in NX7.5.0. | |
| NXString | GetMaterial () |
| Get tool material. | |
| void | GetMaterialData (NXString *libRef, NXString *name, NXString *description, NXString *code) |
| Get material data Created in NX8.0.2. | |
| NXString | HolderDescription () |
| Returns the holder description Created in NX7.5.1. | |
| NXString | HolderLibraryReference () |
| Returns the holder libref Created in NX7.5.1. | |
| NXOpen::CAM::Ude * | LibraryParametersBuilder () |
| Returns the Library Data Object Created in NX9.0.0. | |
| void | SetChannelName (const NXString &name) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetChannelName (const char *name) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetHolderDescription (const NXString &holderDescriptionValue) |
| Sets the holder description Created in NX7.5.1. | |
| void | SetHolderDescription (const char *holderDescriptionValue) |
| Sets the holder description Created in NX7.5.1. | |
| void | SetHolderLibraryReference (const NXString &holderLibrefValue) |
| Sets the holder libref Created in NX7.5.1. | |
| void | SetHolderLibraryReference (const char *holderLibrefValue) |
| Sets the holder libref Created in NX7.5.1. | |
| void | SetMaterial (const NXString &libRef) |
| Set tool material Created in NX8.0.1. | |
| void | SetMaterial (const char *libRef) |
| Set tool material Created in NX8.0.1. | |
| void | SetTlCtlgNum (const NXString &tlCtlgNumValue) |
| Sets the Catalog Number Created in NX5.0.0. | |
| void | SetTlCtlgNum (const char *tlCtlgNumValue) |
| Sets the Catalog Number Created in NX5.0.0. | |
| void | SetTlDescription (const NXString &tlDescriptionValue) |
| Sets the Cutter Description Created in NX5.0.0. | |
| void | SetTlDescription (const char *tlDescriptionValue) |
| Sets the Cutter Description Created in NX5.0.0. | |
| void | SetTlLibref (const NXString &tlLibRef) |
| Sets the Cutter Libref Created in NX5.0.0. | |
| void | SetTlLibref (const char *tlLibRef) |
| Sets the Cutter Libref Created in NX5.0.0. | |
| void | SetTlManualToolChange (bool tlManualToolChangeValue) |
| Sets the Manual Tool Change Created in NX5.0.0. | |
| void | SetTlText (const NXString &tlText) |
| Sets the tool text Created in NX5.0.0. | |
| void | SetTlText (const char *tlText) |
| Sets the tool text Created in NX5.0.0. | |
| NXString | TlCtlgNum () |
| Returns the Catalog Number Created in NX5.0.0. | |
| NXString | TlDescription () |
| Returns the Cutter Description Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlHolderNumberBuilder () |
| Returns the Holder Number Created in NX5.0.0. | |
| NXString | TlLibref () |
| Returns the Cutter Libref Created in NX5.0.0. | |
| bool | TlManualToolChange () |
| Returns the Manual Tool Change Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlNumberBuilder () |
| Returns the Tool Number Created in NX5.0.0. | |
| NXString | TlText () |
| Returns the tool text Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAM::ParamBuilder | |
| enum | OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand } |
| Available types for Optimization Method in operation. More... | |
Detailed Description
Represents a Wire Tool
To create a new instance of this class, use CAM::NCGroupCollection::CreateWireTool
Created in NX9.0.0.
Member Function Documentation
| NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::WireTool::AdjReg | ( | ) |
Returns the Adjust Register
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::WireGuide* NXOpen::CAM::WireTool::CreateWireGuide | ( | ) |
Create a wire guide.
- Returns
- the wire guide object
Created in NX9.0.0.
License requirements : cam_base ("CAM BASE")
| NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::WireTool::CutcomReg | ( | ) |
Returns the Cutcom Register
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::WireTool::Diameter | ( | ) |
Returns the Tool Diameter (inheritable double)
Created in NX9.0.0.
License requirements : cam_base ("CAM BASE")
| NXOpen::CAM::WireGuideList* NXOpen::CAM::WireTool::WireGuideList | ( | ) |
Returns the wire guide list
Created in NX9.0.0.
License requirements : cam_base ("CAM BASE")
The documentation for this class was generated from the following file:
- CAM_WireTool.hxx
