Represents a WedmCustomBoundaryData Builder
No Creator

Created in NX6.0.0. More...

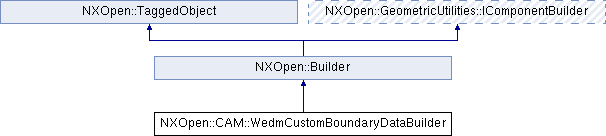

Inheritance diagram for NXOpen::CAM::WedmCustomBoundaryDataBuilder:

Public Member Functions
NXOpen::CAM::InPathEventDataBuilder *	CreateInpathEventDataBuilder ()
	The create inpath event data builder.

NXOpen::CAM::TabPointDataBuilder *	CreateTabPointDataBuilder ()
	The create tab point data builder.

NXOpen::CAM::InPathEventDataBuilderList *	InpathEventDataList ()
	Returns the inpath event data list Created in NX6.0.0.

NXOpen::CAM::TabPointDataBuilderList *	TabPointList ()
	Returns the tab point data list Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a WedmCustomBoundaryData Builder
No Creator

Created in NX6.0.0.

Member Function Documentation

NXOpen::CAM::InPathEventDataBuilder* NXOpen::CAM::WedmCustomBoundaryDataBuilder::CreateInpathEventDataBuilder ( )

The create inpath event data builder.

Returns: inpath event data builder
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::TabPointDataBuilder* NXOpen::CAM::WedmCustomBoundaryDataBuilder::CreateTabPointDataBuilder ( )

The create tab point data builder.

Returns: create tab point data builder
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::InPathEventDataBuilderList* NXOpen::CAM::WedmCustomBoundaryDataBuilder::InpathEventDataList ( )

Returns the inpath event data list
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::TabPointDataBuilderList* NXOpen::CAM::WedmCustomBoundaryDataBuilder::TabPointList ( )

Returns the tab point data list
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

The documentation for this class was generated from the following file:
