NXOpen::CAM::VolumeBased25DMillingOperation Class Reference

Represents a Floor Wall Milling Operation
To create or edit an instance of this class, use CAM::VolumeBased25DMillingOperationBuilder

Created in NX8.5.0. More...

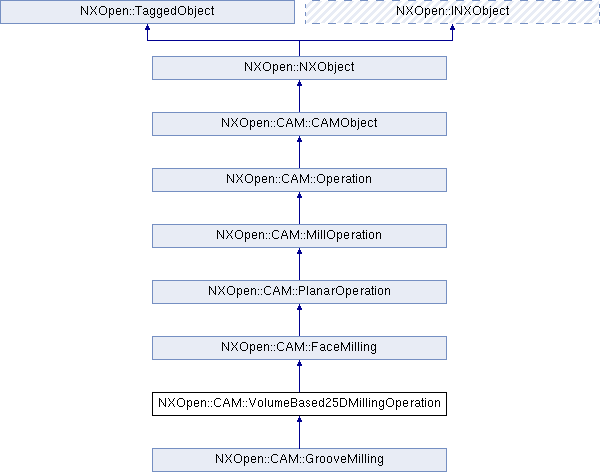

Inheritance diagram for NXOpen::CAM::VolumeBased25DMillingOperation:

Additional Inherited Members
Public Types inherited from NXOpen::CAM::CAMObject
enum	Attr {   AttrProjDiffTaxis = 1, AttrProfileFlipMside, AttrBndSplineTangent, AttrBlankNormalDiffTaxis,   AttrBndHasSleepObj, AttrClrnrNotParallelTaxis, AttrBndNotParallelFloor, AttrFloorNotUpToDate,   AttrSingleProfileWithFirstCut, AttrCutterConversionProblem, AttrAcceptDrivePosition = 100, AttrReparametrization = 110,   AttrBetweenFromStart = 120, AttrCurveCutRange = 130, AttrFixGssmCornerData = 140, AttrPlmConversion = 150,   AttrPlmFeedcomp, AttrPlmFillet, AttrPlmSlowdown, AttrPlmGeometry,   AttrWedmPoints = 160, AttrCavityMillInheritTrimBnds = 170, AttrRtdObsolete = 1000, AttrZlevelHolderParamChange = 2000,   AttrNcmObsoleteSeqControl = 2100, AttrNcmObsoleteCustomFeed, AttrNcmObsoleteLocalRetract, AttrNcmClearTraversalZero,   AttrNcmObsoleteEngretToClearance, AttrGmcInvalidNxVersion = 2201, AttrProbingInvalidNxVersion, AttrInspPathInvalidNxVersion = 2300,   AttrCustomDataGougingObsolete, AttrCustomDataGougingPartObsolete, AttrCustomDataGougingDriveObsolete, AttrCustomDataIgnoreLoopsObsolete,   AttrCustomDataIgnoreLoopsRemoved, AttrLimitToolRunOn = 2400 }
	Represents the CAM attribute type. More...
enum	FeedRateUnit { FeedRateUnitNone, FeedRateUnitPerMinute, FeedRateUnitPerRevolution }
	The unit of feed rate. More...
enum	Status { StatusComplete, StatusRepost, StatusRegen, StatusApproved = 4 }
	The status of the object. More...
Public Member Functions inherited from NXOpen::CAM::Operation
void	AppendMove (NXOpen::CAM::Move *move)
	Returns the append move Created in NX5.0.0.
NXOpen::CAM::MoveCollection *	CAMMoveCollection ()
	Represents Move Collection Created in NX3.0.0.
NXOpen::CAM::ToolPathEditorBuilder *	CreateToolPathEditorBuilder ()
	Create Tool Path Editor Move builder.
NXOpen::NXObject *	GetInputIpw ()
	Get input ipw for the operation.
NXOpen::CAM::NCGroup *	GetParent (NXOpen::CAM::CAMSetup::View branch)
	Get parent.
double	GetToolpathCuttingLength ()
	Returns toolpath cutting length in Part units (mm or inch)
double	GetToolpathCuttingTime ()
	Returns toolpath cutting time in seconds.
double	GetToolpathLength ()
	Returns toolpath length in Part units (mm or inch)
double	GetToolpathTime ()
	Returns toolpath time in seconds.
std::vector< NXString >	GetUserDefinedMoveTypes ()
	Get the valid User Defined Move Types.
NXOpen::CAM::FBM::Feature *	InsertFeature (NXOpen::CAM::CAMFeature *tagMachiningFeature)
	Insert a machining feature to machine and returns an in process feature.
void	InsertMove (NXOpen::CAM::Move *insertAfter, NXOpen::CAM::Move *move)
	Returns the insert move Created in NX5.0.0.
void	RemoveFeature (NXOpen::CAM::CAMFeature *tagFeature)
	Remove a machining feature Created in NX9.0.0.
void	SetInProcessFeatureType (const NXString &type)
	Set the in process feature type Created in NX9.0.0.
void	SetInProcessFeatureType (const char *type)
	Set the in process feature type Created in NX9.0.0.
void	SetToolpathCuttingLength (double length)
	Sets toolpath cutting length in Part units (mm or inch) Created in NX6.0.0.
void	SetToolpathCuttingTime (double time)
	Sets toolpath cutting time in seconds Created in NX6.0.0.
void	SetToolpathLength (double length)
	Sets toolpath length in Part units (mm or inch) Created in NX6.0.0.
void	SetToolpathTime (double time)
	Sets toolpath time in seconds Created in NX6.0.0.
void	UnlinkInstance ()
	Unlink instance Created in NX8.5.0.

Detailed Description

Represents a Floor Wall Milling Operation
To create or edit an instance of this class, use CAM::VolumeBased25DMillingOperationBuilder

Created in NX8.5.0.

---

The documentation for this class was generated from the following file:

• CAM_VolumeBased25DMillingOperation.hxx
