NXOpen::CAM::UserDefinedMoveBuilder Class Reference

Represents the User Defined Move Builder
To create a new instance of this class, use CAM::MoveCollection::CreateUserDefinedMoveBuilder

Created in NX8.0.0. More...

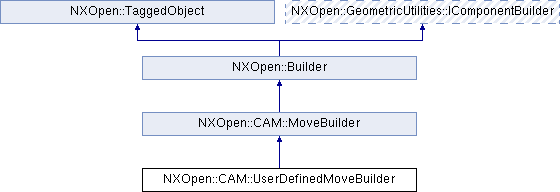

Inheritance diagram for NXOpen::CAM::UserDefinedMoveBuilder:

Additional Inherited Members
Public Types inherited from NXOpen::CAM::MoveBuilder
enum	Feed { FeedMotion, FeedCustom }
	the feed Type More...
enum	Motion {   MotionRapid = 1, MotionEngage, MotionCut, MotionStepover,   MotionRetract, MotionApproach, MotionTraversal, MotionDeparture,   MotionReturn, MotionFirstCut }
	the motion Type More...
Public Member Functions inherited from NXOpen::CAM::MoveBuilder
double	FeedRate ()
	Returns the feed rate Created in NX5.0.0.
NXOpen::CAM::MoveBuilder::Feed	FeedType ()
	Returns the feed type Created in NX5.0.0.
NXOpen::CAM::FeedRateUnit	FeedUnit ()
	Returns the feed unit Created in NX7.5.0.
NXOpen::CAM::UdeParameter *	GetUserParameter (const NXString &parameterName)
	Returns the custom parameter with the given name.
NXOpen::CAM::UdeParameter *	GetUserParameter (const char *parameterName)
	Returns the custom parameter with the given name.
NXOpen::CAM::UdeParameter *	GetUserParameter (int index)
	Returns the parameter at the input index.
NXOpen::CAM::MoveBuilder::Motion	MotionType ()
	Returns the motion type Created in NX5.0.0.
int	NumberOfUserParameters ()
	Returns the number of user parameters Created in NX8.0.0.
bool	ProtectedMove ()
	Returns the protected move status Created in NX5.0.0.
void	SetFeedRate (double feedRate)
	Sets the feed rate Created in NX5.0.0.
void	SetFeedType (NXOpen::CAM::MoveBuilder::Feed feedType)
	Sets the feed type Created in NX5.0.0.
void	SetFeedUnit (NXOpen::CAM::FeedRateUnit unit)
	Sets the feed unit Created in NX7.5.0.
void	SetMotionType (NXOpen::CAM::MoveBuilder::Motion motionType)
	Sets the motion type Created in NX5.0.0.
void	SetParent (NXOpen::CAM::CAMObject *parent)
	Set parent Created in NX5.0.0.
void	SetProtectedMove (bool protectedMove)
	Sets the protected move status Created in NX5.0.0.
void	SetSibling (NXOpen::CAM::CAMObject *sibling)
	Set sibling Created in NX5.0.0.
void	SetSubopLabel (const NXString &subopLabel)
	Sets the subop label Created in NX8.5.1.
void	SetSubopLabel (const char *subopLabel)
	Sets the subop label Created in NX8.5.1.
NXString	SubopLabel ()
	Returns the subop label Created in NX8.5.1.

Detailed Description

Represents the User Defined Move Builder
To create a new instance of this class, use CAM::MoveCollection::CreateUserDefinedMoveBuilder

Created in NX8.0.0.

---

The documentation for this class was generated from the following file:

• CAM_UserDefinedMoveBuilder.hxx
