Represents a TurnFeatureGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateTurnFeatureGeomBuilder

Created in NX5.0.0. More...

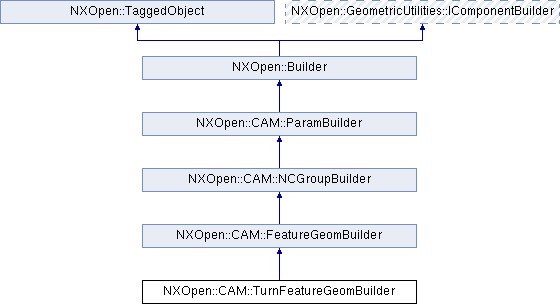

Inheritance diagram for NXOpen::CAM::TurnFeatureGeomBuilder:

Public Types
enum	CutRegionSelectionModes { CutRegionSelectionModesAutomatic, CutRegionSelectionModesManual }
	the cut region selection options More...

enum	SurfaceSensitivityModes { SurfaceSensitivityModesNone, SurfaceSensitivityModesDistance }
	the surface sensitivity options Created in NX6.0.0. More...

enum	ToleranceOffsetModes { ToleranceOffsetModesAfterContainment, ToleranceOffsetModesBeforeContainment }
	the tolerance_offset options More...

Public Member Functions
NXOpen::CAM::TrimPlane *	AxialTrimPlane1Builder ()
	Returns the axial trim plane 1 Created in NX6.0.0.

NXOpen::CAM::TrimPlane *	AxialTrimPlane2Builder ()
	Returns the axial trim plane 2 Created in NX6.0.0.

NXOpen::CAM::TurnFeatureGeomBuilder::CutRegionSelectionModes	CutRegionSelectionMode ()
	Returns the cut region selection mode Created in NX6.0.0.

NXOpen::Point *	CutRegionSelectionPoint ()
	Returns the cut region selection point Created in NX6.0.0.

NXOpen::CAM::TrimPlane *	RadialTrimPlane1Builder ()
	Returns the radial trim plane 1 Created in NX6.0.0.

NXOpen::CAM::TrimPlane *	RadialTrimPlane2Builder ()
	Returns the radial trim plane 2 Created in NX6.0.0.

void	SetCutRegionSelectionMode (NXOpen::CAM::TurnFeatureGeomBuilder::CutRegionSelectionModes cutRegionSelectionMode)
	Sets the cut region selection mode Created in NX6.0.0.

void	SetCutRegionSelectionPoint (NXOpen::Point *cutRegionSelectionPoint)
	Sets the cut region selection point Created in NX6.0.0.

void	SetSurfaceSensitivityMode (NXOpen::CAM::TurnFeatureGeomBuilder::SurfaceSensitivityModes surfaceSensitivityMode)
	Sets the surface sensitivity mode Created in NX6.0.0.

void	SetSurfaceSensitivityTolerance (double surfaceSensitivityTolerance)
	Sets the surface sensitivity tolerance Created in NX6.0.0.

void	SetToleranceOffsetMode (NXOpen::CAM::TurnFeatureGeomBuilder::ToleranceOffsetModes toleranceOffsetMode)
	Sets the tolerance_offset mode Created in NX6.0.0.

NXOpen::CAM::TurnFeatureGeomBuilder::SurfaceSensitivityModes	SurfaceSensitivityMode ()
	Returns the surface sensitivity mode Created in NX6.0.0.

double	SurfaceSensitivityTolerance ()
	Returns the surface sensitivity tolerance Created in NX6.0.0.

NXOpen::CAM::TurnFeatureGeomBuilder::ToleranceOffsetModes	ToleranceOffsetMode ()
	Returns the tolerance_offset mode Created in NX6.0.0.

NXOpen::CAM::TrimPoint *	TrimPoint1Builder ()
	Returns the trim point 1 options Created in NX6.0.0.

NXOpen::CAM::TrimPoint *	TrimPoint2Builder ()
	Returns the trim point 2 mode options Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAM::FeatureGeomBuilder
NXOpen::CAM::InheritableDoubleBuilder *	BlankOffsetBuilder ()
	Returns the blank offset (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	CheckOffsetBuilder ()
	Returns the check offset (inheritable double) Created in NX5.0.0.

NXOpen::CAM::GeometryCiBuilder *	GeometryCiBuilder ()
	Returns the geometry builder Created in NX5.0.0.

NXString	GetMaterial ()
	Get part material.

void	GetMaterialData (NXString libRef, NXString name, NXString description, NXString code, NXString *hardness)
	Get material data Created in NX8.0.2.

NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the save/layer layout builder Created in NX5.0.0.

NXOpen::NXObject *	PartMaterialBuilder ()
	Returns the part material

NXOpen::CAM::InheritableDoubleBuilder *	PartOffsetBuilder ()
	Returns the part offset (inheritable double) Created in NX5.0.0.

void	SetMaterial (const NXString &libRef)
	Set part material Created in NX8.0.1.

void	SetMaterial (const char *libRef)
	Set part material Created in NX8.0.1.

void	SetPartMaterialBuilder (NXOpen::NXObject *partMaterial)
	Sets the part material

NXOpen::CAM::InheritableDoubleBuilder *	TrimOffsetBuilder ()
	Returns the trim offset (inheritable double) Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a TurnFeatureGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateTurnFeatureGeomBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::TurnFeatureGeomBuilder::CutRegionSelectionModes

the cut region selection options

Enumerator:

CutRegionSelectionModesAutomatic	Automatic cut region selection.
CutRegionSelectionModesManual	Manual cut region selection.

enum NXOpen::CAM::TurnFeatureGeomBuilder::SurfaceSensitivityModes

the surface sensitivity options
Created in NX6.0.0.

Enumerator:

SurfaceSensitivityModesNone	Surface sensitivity is inactive.
SurfaceSensitivityModesDistance	Surface sensitivity is active.

enum NXOpen::CAM::TurnFeatureGeomBuilder::ToleranceOffsetModes

the tolerance_offset options

Enumerator:

ToleranceOffsetModesAfterContainment	Tolerance offset after containment.
ToleranceOffsetModesBeforeContainment	Tolerance offset before containment.
