Represents a Tool Axis Interpolate Builder
Created in NX7.5.0. More...

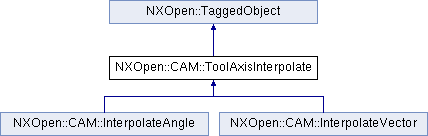

Inheritance diagram for NXOpen::CAM::ToolAxisInterpolate:

Public Types
enum	InterpolateTypes { InterpolateTypesVector, InterpolateTypesAngleToPart, InterpolateTypesAngleToDrive }
	the available types for Interpolate Types More...

enum	InterpolationMethodTypes { InterpolationMethodTypesLinear, InterpolationMethodTypesCubicSpline, InterpolationMethodTypesSmooth }
	the available types for interpolate method More...

Public Member Functions
NXOpen::Point *	GetPoint (int index)
	Get the point.

int	GetTotalNumberOfPoints ()
	Get the total number of interpolate data points.

NXOpen::CAM::ToolAxisInterpolate::InterpolationMethodTypes	InterpolationMethod ()
	Returns the interpolation method type Created in NX7.5.0.

void	ResetToDefault ()
	The action of Reset to Default Created in NX7.5.0.

void	SetInterpolationMethod (NXOpen::CAM::ToolAxisInterpolate::InterpolationMethodTypes newValue)
	Sets the interpolation method type Created in NX7.5.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Tool Axis Interpolate Builder
Created in NX7.5.0.

Member Enumeration Documentation

the available types for Interpolate Types

Enumerator:

InterpolateTypesVector	Interpolate Types: Vector.
InterpolateTypesAngleToPart	Interpolate Types: Angle to Part.
InterpolateTypesAngleToDrive	Interpolate Types: Angle to Drive.

the available types for interpolate method

Enumerator:

InterpolationMethodTypesLinear	Linear.
InterpolationMethodTypesCubicSpline	Cubic Spline.
InterpolationMethodTypesSmooth	Smooth.

NXOpen::Point* NXOpen::CAM::ToolAxisInterpolate::GetPoint ( int index )

Get the point.

Parameters

index the index of item

int NXOpen::CAM::ToolAxisInterpolate::GetTotalNumberOfPoints ( )

Get the total number of interpolate data points.

NXOpen::CAM::ToolAxisInterpolate::InterpolationMethodTypes NXOpen::CAM::ToolAxisInterpolate::InterpolationMethod ( )

Returns the interpolation method type
Created in NX7.5.0.

License requirements : None

void NXOpen::CAM::ToolAxisInterpolate::ResetToDefault ( )

The action of Reset to Default
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::ToolAxisInterpolate::SetInterpolationMethod ( NXOpen::CAM::ToolAxisInterpolate::InterpolationMethodTypes newValue )

Sets the interpolation method type
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

newValue the interpolation method type
