Represents the Probe Calibrate Sphere Move Builder
To create a new instance of this class, use CAM::MoveCollection::CreateProbeCalibrateSphereMoveBuilder

Created in NX5.0.0. More...

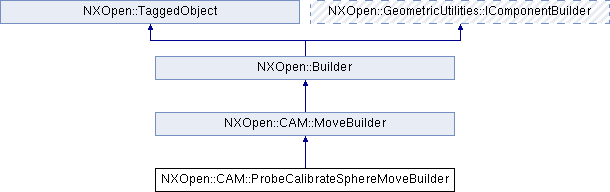

Inheritance diagram for NXOpen::CAM::ProbeCalibrateSphereMoveBuilder:

Public Types
enum	Geometry { GeometrySphere, GeometryPoint }
	the geometry types More...

Public Types inherited from NXOpen::CAM::MoveBuilder
enum	Feed { FeedMotion, FeedCustom }
	the feed Type More...

enum	Motion { MotionRapid = 1, MotionEngage, MotionCut, MotionStepover, MotionRetract, MotionApproach, MotionTraversal, MotionDeparture, MotionReturn, MotionFirstCut }
	the motion Type More...

Public Member Functions
double	Diameter ()
	Returns the diameter defining the sphere to probe Created in NX5.0.0.

NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::Geometry	GeometryType ()
	Returns the type of geometry Created in NX5.0.0.

NXOpen::Point *	Point ()
	Returns the point defining the sphere to probe Created in NX5.0.0.

NXOpen::CAM::ProbeProtectedParametersBuilder *	ProbeProtectedParameters ()
	Returns the probe protected parameters builder Created in NX5.0.0.

void	SetDiameter (double diameter)
	Sets the diameter defining the sphere to probe Created in NX5.0.0.

void	SetGeometryType (NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::Geometry geomType)
	Sets the type of geometry Created in NX5.0.0.

void	SetPoint (NXOpen::Point *point)
	Sets the point defining the sphere to probe Created in NX5.0.0.

void	SetSphere (NXOpen::NXObject *sphere)
	Sets the sphere to probe Created in NX5.0.0.

void	SetToolOffset (int toolOffset)
	Sets the tool offset to update Created in NX5.0.0.

NXOpen::NXObject *	Sphere ()
	Returns the sphere to probe Created in NX5.0.0.

int	ToolOffset ()
	Returns the tool offset to update Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::MoveBuilder
double	FeedRate ()
	Returns the feed rate Created in NX5.0.0.

NXOpen::CAM::MoveBuilder::Feed	FeedType ()
	Returns the feed type Created in NX5.0.0.

NXOpen::CAM::FeedRateUnit	FeedUnit ()
	Returns the feed unit Created in NX7.5.0.

NXOpen::CAM::UdeParameter *	GetUserParameter (const NXString &parameterName)
	Returns the custom parameter with the given name.

NXOpen::CAM::UdeParameter *	GetUserParameter (const char *parameterName)
	Returns the custom parameter with the given name.

NXOpen::CAM::UdeParameter *	GetUserParameter (int index)
	Returns the parameter at the input index.

NXOpen::CAM::MoveBuilder::Motion	MotionType ()
	Returns the motion type Created in NX5.0.0.

int	NumberOfUserParameters ()
	Returns the number of user parameters Created in NX8.0.0.

bool	ProtectedMove ()
	Returns the protected move status Created in NX5.0.0.

void	SetFeedRate (double feedRate)
	Sets the feed rate Created in NX5.0.0.

void	SetFeedType (NXOpen::CAM::MoveBuilder::Feed feedType)
	Sets the feed type Created in NX5.0.0.

void	SetFeedUnit (NXOpen::CAM::FeedRateUnit unit)
	Sets the feed unit Created in NX7.5.0.

void	SetMotionType (NXOpen::CAM::MoveBuilder::Motion motionType)
	Sets the motion type Created in NX5.0.0.

void	SetParent (NXOpen::CAM::CAMObject *parent)
	Set parent Created in NX5.0.0.

void	SetProtectedMove (bool protectedMove)
	Sets the protected move status Created in NX5.0.0.

void	SetSibling (NXOpen::CAM::CAMObject *sibling)
	Set sibling Created in NX5.0.0.

void	SetSubopLabel (const NXString &subopLabel)
	Sets the subop label Created in NX8.5.1.

void	SetSubopLabel (const char *subopLabel)
	Sets the subop label Created in NX8.5.1.

NXString	SubopLabel ()
	Returns the subop label Created in NX8.5.1.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the Probe Calibrate Sphere Move Builder
To create a new instance of this class, use CAM::MoveCollection::CreateProbeCalibrateSphereMoveBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::Geometry

the geometry types

Enumerator:

GeometrySphere	Sphere.
GeometryPoint	Point.

Member Function Documentation

double NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::Diameter ( )

Returns the diameter defining the sphere to probe
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::Geometry NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::GeometryType ( )

Returns the type of geometry
Created in NX5.0.0.

License requirements : None

NXOpen::Point* NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::Point ( )

Returns the point defining the sphere to probe
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::ProbeProtectedParametersBuilder* NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::ProbeProtectedParameters ( )

Returns the probe protected parameters builder
Created in NX5.0.0.

License requirements : None

void NXOpen::CAM::ProbeCalibrateSphereMoveBuilder::SetDiameter ( double diameter )

Sets the diameter defining the sphere to probe
Created in NX5.0.0.
