Represents a OperationTeaching Builder
To create a new instance of this class, use CAM::CAMSetup::CreateOperationTeaching
Created in NX8.0.0.
More...
Public Member Functions | |
| NXOpen::CAM::CAMFeature * | GetFeature () |
| Gets the selected feature. | |
| NXString | GetLibraryPath () |
| Gets the selected library path. | |
| std::vector < NXOpen::CAM::Operation * > | GetOperations () |
| Gets the selected operations. | |
| void | SetFeature (NXOpen::CAM::CAMFeature *feature) |
| Sets the selected feature Created in NX8.0.0. | |
| void | SetLibraryPath (const NXString &path) |
| Sets the selected library path Created in NX8.0.0. | |
| void | SetLibraryPath (const char *path) |
| Sets the selected library path Created in NX8.0.0. | |
| void | SetOperations (const std::vector< NXOpen::CAM::Operation * > &aOperations) |
| Sets the selected operations Created in NX8.0.0. | |
| std::vector< NXString > | Teach () |
| Teaches the new operations. | |

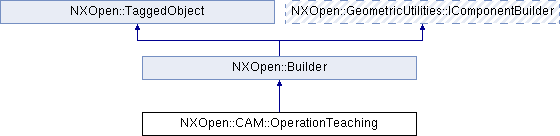

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a OperationTeaching Builder
To create a new instance of this class, use CAM::CAMSetup::CreateOperationTeaching
Created in NX8.0.0.
Member Function Documentation
| NXOpen::CAM::CAMFeature* NXOpen::CAM::OperationTeaching::GetFeature | ( | ) |
Gets the selected feature.
- Returns
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
| NXString NXOpen::CAM::OperationTeaching::GetLibraryPath | ( | ) |
Gets the selected library path.
- Returns
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
| std::vector<NXOpen::CAM::Operation *> NXOpen::CAM::OperationTeaching::GetOperations | ( | ) |
Gets the selected operations.
- Returns
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
| void NXOpen::CAM::OperationTeaching::SetFeature | ( | NXOpen::CAM::CAMFeature * | feature | ) |
Sets the selected feature
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
- Parameters
-
feature feature
| void NXOpen::CAM::OperationTeaching::SetLibraryPath | ( | const NXString & | path | ) |
Sets the selected library path
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
- Parameters
-
path path
| void NXOpen::CAM::OperationTeaching::SetLibraryPath | ( | const char * | path | ) |
Sets the selected library path
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
- Parameters
-
path path
| void NXOpen::CAM::OperationTeaching::SetOperations | ( | const std::vector< NXOpen::CAM::Operation * > & | aOperations | ) |
Sets the selected operations
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
- Parameters
-
aOperations a operations
| std::vector<NXString> NXOpen::CAM::OperationTeaching::Teach | ( | ) |
Teaches the new operations.
- Returns
Created in NX8.0.0.
License requirements : fbm_author ("FBM Author")
The documentation for this class was generated from the following file:
- CAM_OperationTeaching.hxx
