Represents a MillBoundaryGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMillBoundaryGeomBuilder
Created in NX5.0.0.
More...

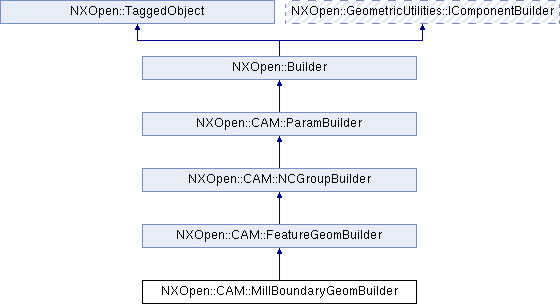

Inheritance diagram for NXOpen::CAM::MillBoundaryGeomBuilder:
Public Member Functions | |
| NXOpen::CAM::Boundary * | BlankBoundary () |
| Returns the blank boundary Created in NX9.0.0. | |
| NXOpen::CAM::Boundary * | CheckBoundary () |
| Returns the check boundary Created in NX9.0.0. | |
| NXOpen::CAM::Boundary * | PartBoundary () |
| Returns the part boundary Created in NX9.0.0. | |
| NXOpen::CAM::Boundary * | TrimBoundary () |
| Returns the trim boundary Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::CAM::FeatureGeomBuilder | |
| NXOpen::CAM::InheritableDoubleBuilder * | BlankOffsetBuilder () |
| Returns the blank offset (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | CheckOffsetBuilder () |
| Returns the check offset (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::GeometryCiBuilder * | GeometryCiBuilder () |
| Returns the geometry builder Created in NX5.0.0. | |
| NXString | GetMaterial () |
| Get part material. | |
| void | GetMaterialData (NXString *libRef, NXString *name, NXString *description, NXString *code, NXString *hardness) |
| Get material data Created in NX8.0.2. | |
| NXOpen::CAM::LayoutCiBuilder * | LayoutCiBuilder () |
| Returns the save/layer layout builder Created in NX5.0.0. | |
| NXOpen::NXObject * | PartMaterialBuilder () |
| Returns the part material | |
| NXOpen::CAM::InheritableDoubleBuilder * | PartOffsetBuilder () |
| Returns the part offset (inheritable double) Created in NX5.0.0. | |
| void | SetMaterial (const NXString &libRef) |
| Set part material Created in NX8.0.1. | |
| void | SetMaterial (const char *libRef) |
| Set part material Created in NX8.0.1. | |
| void | SetPartMaterialBuilder (NXOpen::NXObject *partMaterial) |
| Sets the part material | |
| NXOpen::CAM::InheritableDoubleBuilder * | TrimOffsetBuilder () |
| Returns the trim offset (inheritable double) Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAM::ParamBuilder | |
| enum | OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand } |
| Available types for Optimization Method in operation. More... | |
Detailed Description
Represents a MillBoundaryGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMillBoundaryGeomBuilder
Created in NX5.0.0.
Member Function Documentation
| NXOpen::CAM::Boundary* NXOpen::CAM::MillBoundaryGeomBuilder::BlankBoundary | ( | ) |
Returns the blank boundary
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::Boundary* NXOpen::CAM::MillBoundaryGeomBuilder::CheckBoundary | ( | ) |
Returns the check boundary
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::Boundary* NXOpen::CAM::MillBoundaryGeomBuilder::PartBoundary | ( | ) |
Returns the part boundary
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::Boundary* NXOpen::CAM::MillBoundaryGeomBuilder::TrimBoundary | ( | ) |
Returns the trim boundary
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- CAM_MillBoundaryGeomBuilder.hxx
