Represents a MachinePocketGroup Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMachinePocketGroupBuilder

Created in NX5.0.0. More...

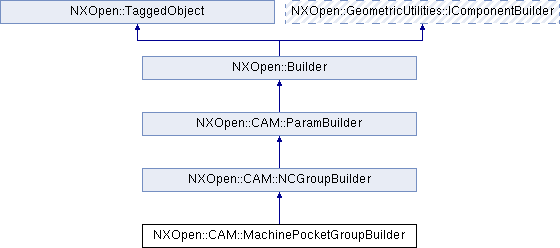

Inheritance diagram for NXOpen::CAM::MachinePocketGroupBuilder:

Public Types
enum	RegisterType { RegisterTypeSameAsPocketId, RegisterTypeSpecify }
	the register type More...

Public Member Functions
NXOpen::CAM::InheritableIntBuilder *	AdjustIdBuilder ()
	Returns the adjust id Created in NX6.0.0.

NXOpen::CAM::MachinePocketGroupBuilder::RegisterType	AdjustRegisterType ()
	Returns the adjust register type

NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXOpen::CAM::HoldingSystemBuilder *	CreateHoldingSystemBuilder (int position, const NXString &name)
	Creates a new holding system builder.

NXOpen::CAM::HoldingSystemBuilder *	CreateHoldingSystemBuilder (int position, const char *name)
	Creates a new holding system builder.

NXOpen::CAM::InheritableIntBuilder *	CutcomIdBuilder ()
	Returns the cutcom id Created in NX6.0.0.

NXOpen::CAM::MachinePocketGroupBuilder::RegisterType	CutcomRegisterType ()
	Returns the cutcom register type

NXOpen::CAM::HoldingSystemBuilderList *	HoldingSystemsList ()
	Returns the holding systems list Created in NX6.0.0.

int	NumberOfTools ()
	Returns the number of tools Created in NX8.5.0.

NXOpen::CAM::InheritableIntBuilder *	PocketIdBuilder ()
	Returns the pocket id Created in NX5.0.0.

NXOpen::CAM::InheritableTextBuilder *	PocketIdStringBuilder ()
	Returns the pocket id in string Created in NX8.5.0.

void	SetAdjustRegisterType (NXOpen::CAM::MachinePocketGroupBuilder::RegisterType type)
	Sets the adjust register type

void	SetChannelName (const NXString &name)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *name)
	Sets the channel's name Created in NX7.5.0.

void	SetCutcomRegisterType (NXOpen::CAM::MachinePocketGroupBuilder::RegisterType type)
	Sets the cutcom register type

void	SetNumberOfTools (int numTools)
	Sets the number of tools Created in NX8.5.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a MachinePocketGroup Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateMachinePocketGroupBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::MachinePocketGroupBuilder::RegisterType

the register type

Deprecated:: Deprecated in NX8.5.0.

This CAM::MachinePocketGroupBuilder::RegisterType is no longer supported.

Enumerator:

RegisterTypeSameAsPocketId	use same as pocket id
RegisterTypeSpecify	use specify

Member Function Documentation

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::MachinePocketGroupBuilder::AdjustIdBuilder ( )

Returns the adjust id
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::MachinePocketGroupBuilder::RegisterType NXOpen::CAM::MachinePocketGroupBuilder::AdjustRegisterType ( )

Returns the adjust register type

Deprecated:: Deprecated in NX8.5.0.

Use CAM::MachinePocketGroupBuilder::AdjustIdBuilder and CAM::MachinePocketGroupBuilder::SetAdjustIdBuilder instead.

Created in NX6.0.0.

License requirements : None

NXString NXOpen::CAM::MachinePocketGroupBuilder::ChannelName ( )

Returns the channel's name
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::HoldingSystemBuilder* NXOpen::CAM::MachinePocketGroupBuilder::CreateHoldingSystemBuilder	(	int	position,
		const NXString &	name
	)

Creates a new holding system builder.

Returns: holding system builder
Created in NX6.0.0.

License requirements : None

Parameters

position	position
name	Holding system name NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAM::HoldingSystemBuilder* NXOpen::CAM::MachinePocketGroupBuilder::CreateHoldingSystemBuilder	(	int	position,
		const char *	name
	)

Creates a new holding system builder.

Returns: holding system builder
Created in NX6.0.0.

License requirements : None

Parameters

position	position
name	Holding system name NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::MachinePocketGroupBuilder::CutcomIdBuilder ( )

Returns the cutcom id
Created in NX6.0.0.

License requirements : None

NXOpen::CAM::MachinePocketGroupBuilder::RegisterType NXOpen::CAM::MachinePocketGroupBuilder::CutcomRegisterType ( )

Returns the cutcom register type

Deprecated:: Deprecated in NX8.5.0.

Use CAM::MachinePocketGroupBuilder::CutcomIdBuilder and CAM::MachinePocketGroupBuilder::SetCutcomIdBuilder instead.

Created in NX6.0.0.

License requirements : None

NXOpen::CAM::HoldingSystemBuilderList* NXOpen::CAM::MachinePocketGroupBuilder::HoldingSystemsList ( )

Returns the holding systems list
Created in NX6.0.0.

License requirements : None

int NXOpen::CAM::MachinePocketGroupBuilder::NumberOfTools ( )

Returns the number of tools
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::MachinePocketGroupBuilder::PocketIdBuilder ( )

Returns the pocket id
Created in NX5.0.0.

License requirements : None

NXOpen::CAM::InheritableTextBuilder* NXOpen::CAM::MachinePocketGroupBuilder::PocketIdStringBuilder ( )

Returns the pocket id in string
Created in NX8.5.0.

License requirements : None

void NXOpen::CAM::MachinePocketGroupBuilder::SetAdjustRegisterType ( NXOpen::CAM::MachinePocketGroupBuilder::RegisterType type )

Sets the adjust register type

Deprecated:: Deprecated in NX8.5.0.

Use CAM::MachinePocketGroupBuilder::AdjustIdBuilder and CAM::MachinePocketGroupBuilder::SetAdjustIdBuilder instead.

Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

type type

void NXOpen::CAM::MachinePocketGroupBuilder::SetChannelName ( const NXString & name )

Sets the channel's name
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

name	the channel's name

void NXOpen::CAM::MachinePocketGroupBuilder::SetChannelName ( const char * name )

Sets the channel's name
Created in NX7.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

name	the channel's name

void NXOpen::CAM::MachinePocketGroupBuilder::SetCutcomRegisterType ( NXOpen::CAM::MachinePocketGroupBuilder::RegisterType type )

Sets the cutcom register type

Deprecated:: Deprecated in NX8.5.0.

Use CAM::MachinePocketGroupBuilder::CutcomIdBuilder and CAM::MachinePocketGroupBuilder::SetCutcomIdBuilder instead.

Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

type type

void NXOpen::CAM::MachinePocketGroupBuilder::SetNumberOfTools ( int numTools )

Sets the number of tools
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

Parameters

numTools the number of tools

The documentation for this class was generated from the following file:

CAM_MachinePocketGroupBuilder.hxx
