NXOpen::CAM::FeatureGeometryGroup Class Reference

Represents a CAM Feature Group
To obtain an instance of this class use CAM::FeatureRecognitionBuilder

Created in NX8.0.0. More...

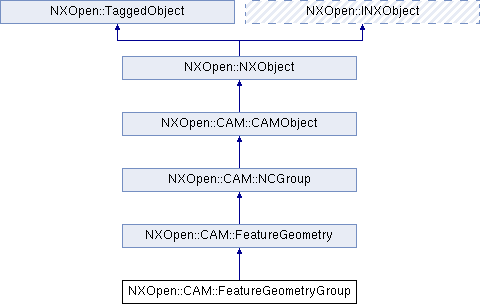

Inheritance diagram for NXOpen::CAM::FeatureGeometryGroup:

Public Types
enum	ProcessStatus { ProcessStatusUnknown, ProcessStatusOk, ProcessStatusSuspect }
	Update status of the feature. More...

Public Member Functions
void	AddFeature (NXOpen::CAM::CAMFeature *feature)
	Adds a feature to the feature geometry group Created in NX8.0.0.
std::vector < NXOpen::CAM::CAMFeature * >	GetFeatures ()
	Get the features in the feature group.
std::vector < NXOpen::CAM::Operation * >	GetOperations ()
	Get the operations of the feature group.
NXOpen::CAM::CAMObject::Status	GetStatus ()
	Get the status of the input object.
NXString	Name ()
	Returns the name of the feature group Created in NX8.0.0.
void	Redistribute ()
	Redistributes the geometry of the feature geometry group Created in NX8.5.0.
void	RemoveFeature (NXOpen::CAM::CAMFeature *feature)
	Removes a feature from the feature geometry group Created in NX8.0.0.
void	SetName (const NXString &name)
	Sets the name of the feature group Created in NX8.0.0.
void	SetName (const char *name)
	Sets the name of the feature group Created in NX8.0.0.
NXOpen::CAM::FeatureGeometryGroup::ProcessStatus	Status ()
	Returns the update status of the feature group Created in NX8.0.0.
NXString	Type ()
	Returns the feature type of the feature group Created in NX8.0.0.

Detailed Description

Represents a CAM Feature Group
To obtain an instance of this class use CAM::FeatureRecognitionBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::FeatureGeometryGroup::ProcessStatus

Update status of the feature.

Enumerator:

ProcessStatusUnknown	Feature group status is unknown.
ProcessStatusOk	Feature group status is ok.
ProcessStatusSuspect	Feature group status is suspected.

Member Function Documentation

void NXOpen::CAM::FeatureGeometryGroup::AddFeature

(

NXOpen::CAM::CAMFeature *

feature

)

Adds a feature to the feature geometry group
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

feature

feature

std::vector<NXOpen::CAM::CAMFeature *> NXOpen::CAM::FeatureGeometryGroup::GetFeatures

(

)

Get the features in the feature group.

Returns

Created in NX8.0.0.

License requirements : None

std::vector<NXOpen::CAM::Operation *> NXOpen::CAM::FeatureGeometryGroup::GetOperations

(

)

Get the operations of the feature group.

Returns

Created in NX8.0.0.

License requirements : None

NXOpen::CAM::CAMObject::Status NXOpen::CAM::FeatureGeometryGroup::GetStatus

(

)

Get the status of the input object.

Returns

the object's status
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

NXString NXOpen::CAM::FeatureGeometryGroup::Name ( )

virtual

Returns the name of the feature group
Created in NX8.0.0.

License requirements : None

Reimplemented from NXOpen::NXObject.

void NXOpen::CAM::FeatureGeometryGroup::Redistribute

(

)

Redistributes the geometry of the feature geometry group
Created in NX8.5.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::FeatureGeometryGroup::RemoveFeature

(

NXOpen::CAM::CAMFeature *

feature

)

Removes a feature from the feature geometry group
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

feature

feature

void NXOpen::CAM::FeatureGeometryGroup::SetName ( const NXString &  name )

virtual

Sets the name of the feature group
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

name

name

Reimplemented from NXOpen::NXObject.

void NXOpen::CAM::FeatureGeometryGroup::SetName

(

const char *

name

)

Sets the name of the feature group
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

name

name

NXOpen::CAM::FeatureGeometryGroup::ProcessStatus NXOpen::CAM::FeatureGeometryGroup::Status

(

)

Returns the update status of the feature group
Created in NX8.0.0.

License requirements : None

NXString NXOpen::CAM::FeatureGeometryGroup::Type

(

)

Returns the feature type of the feature group
Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• CAM_FeatureGeometryGroup.hxx
