Represents a Drill Center Bell Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillCenterBellToolBuilder
Created in NX5.0.0.
More...

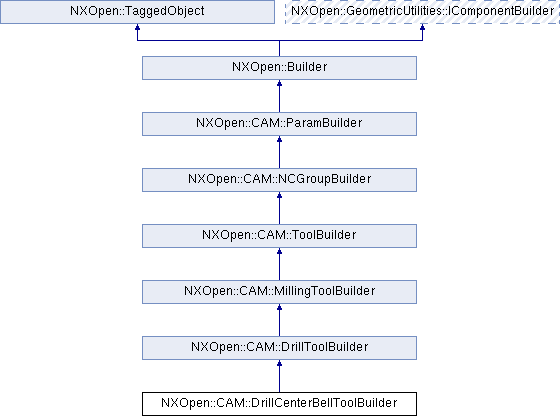

Inheritance diagram for NXOpen::CAM::DrillCenterBellToolBuilder:
Public Member Functions | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlBellAngBuilder () |
| Returns the Bell Angle builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlBellDiameterBuilder () |
| Returns the Bell Diameter builder (inheritable double) Created in NX5.0.0. | |
 Public Member Functions inherited from NXOpen::CAM::DrillToolBuilder | |
| void | SetTlCoolantThro (bool tlCoolantThroValue) |
| Sets the coolant through Created in NX5.0.0. | |
| void | SetTlDesignation (const NXString &tlDesignation) |
| Sets the Designation Created in NX5.0.0. | |
| void | SetTlDesignation (const char *tlDesignation) |
| Sets the Designation Created in NX5.0.0. | |
| bool | TlCoolantThro () |
| Returns the coolant through Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlCor1RadBuilder () |
| Returns the Corner Radius builder (inheritable double) Created in NX5.0.0. | |
| NXString | TlDesignation () |
| Returns the Designation Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlIncludedAngBuilder () |
| Returns the Included Angle builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPilotDiaBuilder () |
| Returns the pilot diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPilotLengthBuilder () |
| Returns the pilot length builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPitchBuilder () |
| Returns the Pitch builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPointAngBuilder () |
| Returns the Point Angle builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlPointLengthBuilder () |
| Returns the Point Length builder (inheritable double) Created in NX9.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTaperDiaDistBuilder () |
| Returns the Taper Diameter Distance builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTipDiameterBuilder () |
| Returns the Tip Diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTipLengthBuilder () |
| Returns the Tip Length builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlXOffsetBuilder () |
| Returns the X Offset builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlYzOffsetBuilder () |
| Returns the YZ Offset builder (inheritable double) Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::MillingToolBuilder | |
| bool | CoolantThrough () |
| Returns the coolant through parameter Created in NX7.5.0. | |
| NXOpen::CAM::InheritableToolDepBuilder * | HelicalDiameter () |
| Returns the helical diameter Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | HelicalRampAngle () |
| Returns the ramp angle Created in NX8.0.0. | |
| NXOpen::CAM::HolderSectionBuilder * | HolderSectionBuilder () |
| Returns the holder sections builder Created in NX5.0.0. | |
| NXOpen::CAM::InheritableToolDepBuilder * | MaxCutWidth () |
| Returns the max cut width Created in NX8.0.0. | |
| NXOpen::CAM::MillingTrackpointBuilder * | MillingTrackpointBuilder () |
| Returns the mill trackpoint builder Created in NX6.0.0. | |
| NXOpen::CAM::InheritableToolDepBuilder * | MinRampLength () |
| Returns the min ramp length Created in NX8.0.0. | |
| void | SetCoolantThrough (bool coolantThrough) |
| Sets the coolant through parameter Created in NX7.5.0. | |
| void | SetTlCutcomReg (int tlCutcomRegValue) |
| Sets the Cutcom Register Created in NX5.0.0. | |
| void | SetTlDirection (NXOpen::CAM::MillingToolBuilder::ToolDirectionTypes tlDirection) |
| Sets the tool direction Created in NX5.0.0. | |
| void | SetTlHolderDescription (const NXString &tlHolderDescriptionValue) |
| Sets the Holder Description Created in NX5.0.0. | |
| void | SetTlHolderDescription (const char *tlHolderDescriptionValue) |
| Sets the Holder Description Created in NX5.0.0. | |
| void | SetTlHolderLibref (const NXString &tlHolderLibrefValue) |
| Sets the Holder Library Reference Created in NX5.0.0. | |
| void | SetTlHolderLibref (const char *tlHolderLibrefValue) |
| Sets the Holder Library Reference Created in NX5.0.0. | |
| void | SetUseTaperedShank (bool useTaperedShank) |
| Sets the use tapered shank Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TaperedShankDiameterBuilder () |
| Returns the tapered shank diameter Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TaperedShankLengthBuilder () |
| Returns the tapered shank length Created in NX8.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TaperedShankTaperLengthBuilder () |
| Returns the tapered shank taper length Created in NX8.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlAdjRegBuilder () |
| Returns the Adjust Register Created in NX5.0.0. | |
| int | TlCutcomReg () |
| Returns the Cutcom Register Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlCutcomRegBuilder () |
| Returns the Cutcom Register Builder Created in NX6.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlDiameterBuilder () |
| Returns the Tool Diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::MillingToolBuilder::ToolDirectionTypes | TlDirection () |
| Returns the tool direction Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlFluteLnBuilder () |
| Returns the flute length Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlHeightBuilder () |
| Returns the length Created in NX5.0.0. | |
| NXString | TlHolderDescription () |
| Returns the Holder Description Created in NX5.0.0. | |
| NXString | TlHolderLibref () |
| Returns the Holder Library Reference Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlLowCorRadBuilder () |
| Returns the low corner radius Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlNumFlutesBuilder () |
| Returns the Number of Flutes builder (inheritable integer) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlShankDiaBuilder () |
| Returns the Shank Diameter builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlTaperAngBuilder () |
| Returns the Taper Angle builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlUpCorRadBuilder () |
| Returns the up corner radius Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlZMountBuilder () |
| Returns the Z Mount builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | TlZOffsetBuilder () |
| Returns the Z Offset builder (inheritable double) Created in NX5.0.0. | |
| bool | UseTaperedShank () |
| Returns the use tapered shank Created in NX8.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::ToolBuilder | |
| NXString | ChannelName () |
| Returns the channel's name Created in NX7.5.0. | |
| NXString | GetMaterial () |
| Get tool material. | |
| void | GetMaterialData (NXString *libRef, NXString *name, NXString *description, NXString *code) |
| Get material data Created in NX8.0.2. | |
| NXString | HolderDescription () |
| Returns the holder description Created in NX7.5.1. | |
| NXString | HolderLibraryReference () |
| Returns the holder libref Created in NX7.5.1. | |
| NXOpen::CAM::Ude * | LibraryParametersBuilder () |
| Returns the Library Data Object Created in NX9.0.0. | |
| void | SetChannelName (const NXString &name) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetChannelName (const char *name) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetHolderDescription (const NXString &holderDescriptionValue) |
| Sets the holder description Created in NX7.5.1. | |
| void | SetHolderDescription (const char *holderDescriptionValue) |
| Sets the holder description Created in NX7.5.1. | |
| void | SetHolderLibraryReference (const NXString &holderLibrefValue) |
| Sets the holder libref Created in NX7.5.1. | |
| void | SetHolderLibraryReference (const char *holderLibrefValue) |
| Sets the holder libref Created in NX7.5.1. | |
| void | SetMaterial (const NXString &libRef) |
| Set tool material Created in NX8.0.1. | |
| void | SetMaterial (const char *libRef) |
| Set tool material Created in NX8.0.1. | |
| void | SetTlCtlgNum (const NXString &tlCtlgNumValue) |
| Sets the Catalog Number Created in NX5.0.0. | |
| void | SetTlCtlgNum (const char *tlCtlgNumValue) |
| Sets the Catalog Number Created in NX5.0.0. | |
| void | SetTlDescription (const NXString &tlDescriptionValue) |
| Sets the Cutter Description Created in NX5.0.0. | |
| void | SetTlDescription (const char *tlDescriptionValue) |
| Sets the Cutter Description Created in NX5.0.0. | |
| void | SetTlLibref (const NXString &tlLibRef) |
| Sets the Cutter Libref Created in NX5.0.0. | |
| void | SetTlLibref (const char *tlLibRef) |
| Sets the Cutter Libref Created in NX5.0.0. | |
| void | SetTlManualToolChange (bool tlManualToolChangeValue) |
| Sets the Manual Tool Change Created in NX5.0.0. | |
| void | SetTlText (const NXString &tlText) |
| Sets the tool text Created in NX5.0.0. | |
| void | SetTlText (const char *tlText) |
| Sets the tool text Created in NX5.0.0. | |
| NXString | TlCtlgNum () |
| Returns the Catalog Number Created in NX5.0.0. | |
| NXString | TlDescription () |
| Returns the Cutter Description Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlHolderNumberBuilder () |
| Returns the Holder Number Created in NX5.0.0. | |
| NXString | TlLibref () |
| Returns the Cutter Libref Created in NX5.0.0. | |
| bool | TlManualToolChange () |
| Returns the Manual Tool Change Created in NX5.0.0. | |
| NXOpen::CAM::InheritableIntBuilder * | TlNumberBuilder () |
| Returns the Tool Number Created in NX5.0.0. | |
| NXString | TlText () |
| Returns the tool text Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAM::MillingToolBuilder | |
| enum | ToolDirectionTypes { ToolDirectionTypesNone, ToolDirectionTypesClw, ToolDirectionTypesCclw } |
| Available types for tool direction milling tool. More... | |
Detailed Description
Represents a Drill Center Bell Tool Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateDrillCenterBellToolBuilder
Created in NX5.0.0.
Member Function Documentation
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::DrillCenterBellToolBuilder::TlBellAngBuilder | ( | ) |
Returns the Bell Angle builder (inheritable double)
Created in NX5.0.0.
License requirements : cam_base ("CAM BASE")
| NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::DrillCenterBellToolBuilder::TlBellDiameterBuilder | ( | ) |
Returns the Bell Diameter builder (inheritable double)
Created in NX5.0.0.
License requirements : cam_base ("CAM BASE")
The documentation for this class was generated from the following file:
- CAM_DrillCenterBellToolBuilder.hxx
