NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 > Class Template Reference

Template class for callbacks with seven input arguments that are member functions of a class. More...

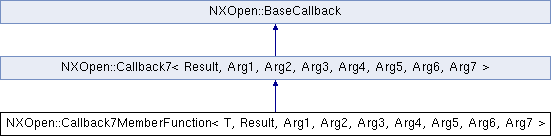

Inheritance diagram for NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >:

Public Types
typedef Result(T::*	FunctionType )(Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7)
	Function signature for callback function attached to this template callback class.
typedef Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >	MyClass
	Template typedef of class signature.
Public Types inherited from NXOpen::Callback7< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >
typedef Arg1	Arg1Type
	Type of first input argument of callback function.
typedef Arg2	Arg2Type
	Type of second input argument of callback function.
typedef Arg3	Arg3Type
	Type of third input argument of callback function.
typedef Arg4	Arg4Type
	Type of fourth input argument of callback function.
typedef Arg5	Arg5Type
	Type of fifth input argument of callback function.
typedef Arg6	Arg6Type
	Type of sixth input argument of callback function.
typedef Arg7	Arg7Type
	Type of seventh input argument of callback function.
typedef Result	ResultType
	Return type of callback function.

Public Member Functions
	Callback7MemberFunction (T *object, FunctionType fn)
	Constructor.
virtual BaseCallback *	Clone () const
	Function interface for clone operation.
virtual bool	Equals (const BaseCallback &other) const
	Function interface for equality operation.
virtual Result	operator() (Arg1 a1, Arg2 a2, Arg3 a3, Arg4 a4, Arg5 a5, Arg6 a6, Arg7 a7) const
	Function call operator function to invoke callback member function attached to this Callback7MemberFunction instance.

Detailed Description

template<class T, class Result, class Arg1, class Arg2, class Arg3, class Arg4, class Arg5, class Arg6, class Arg7>
class NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >

Template class for callbacks with seven input arguments that are member functions of a class.

Template type T is the class that the callback function is a member function of. The return type of the callback function is the template type Result.

Member Typedef Documentation

template<class T , class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 , class Arg5 , class Arg6 , class Arg7 >

typedef Result(T::* NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::FunctionType)(Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7)

Function signature for callback function attached to this template callback class.

template<class T , class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 , class Arg5 , class Arg6 , class Arg7 >

typedef Callback7MemberFunction<T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7> NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::MyClass

Template typedef of class signature.

Used to simplify implementation of callback framework methods.

Constructor & Destructor Documentation

template<class T , class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 , class Arg5 , class Arg6 , class Arg7 >

NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Callback7MemberFunction	(	T *	object,
		FunctionType	fn
	)

Constructor.

Member Function Documentation

template<class T , class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 , class Arg5 , class Arg6 , class Arg7 >

virtual BaseCallback* NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Clone ( ) const

virtual

Function interface for clone operation.

Derived classes will define this function to implement a deep copy operation.

Implements NXOpen::BaseCallback.

template<class T , class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 , class Arg5 , class Arg6 , class Arg7 >

virtual bool NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::Equals ( const BaseCallback &  other ) const

virtual

Function interface for equality operation.

Implements NXOpen::BaseCallback.

template<class T , class Result , class Arg1 , class Arg2 , class Arg3 , class Arg4 , class Arg5 , class Arg6 , class Arg7 >

virtual Result NXOpen::Callback7MemberFunction< T, Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >::operator() ( Arg1  a1, Arg2  a2, Arg3  a3, Arg4  a4, Arg5  a5, Arg6  a6, Arg7  a7  ) const

virtual

Function call operator function to invoke callback member function attached to this Callback7MemberFunction instance.

Implements NXOpen::Callback7< Result, Arg1, Arg2, Arg3, Arg4, Arg5, Arg6, Arg7 >.

---

The documentation for this class was generated from the following file:

• Callback.hxx
