NXOpen::Callback1MemberFunction< T, Result, Arg1 > Class Template Reference

Template class for callbacks with one input argument that are member functions of a class. More...

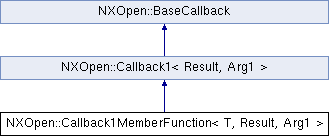

Inheritance diagram for NXOpen::Callback1MemberFunction< T, Result, Arg1 >:

Public Types
typedef Result(T::*	FunctionType )(Arg1)
	Function signature for callback function attached to this template callback class.
typedef Callback1MemberFunction< T, Result, Arg1 >	MyClass
	Template typedef of class signature.
Public Types inherited from NXOpen::Callback1< Result, Arg1 >
typedef Arg1	Arg1Type
	Type of first input argument of callback function.
typedef Result	ResultType
	Return type of callback function.

Public Member Functions
	Callback1MemberFunction (T *object, FunctionType fn)
	Constructor.
virtual BaseCallback *	Clone () const
	Function interface for clone operation.
virtual bool	Equals (const BaseCallback &other) const
	Function interface for equality operation.
virtual Result	operator() (Arg1 a1) const
	Function call operator function to invoke callback member function attached to this Callback1MemberFunction instance.

Detailed Description

template<class T, class Result, class Arg1>
class NXOpen::Callback1MemberFunction< T, Result, Arg1 >

Template class for callbacks with one input argument that are member functions of a class.

Template type T is the class that the callback function is a member function of. The return type of the callback function is the template type Result.

Member Typedef Documentation

template<class T , class Result , class Arg1 >

typedef Result(T::* NXOpen::Callback1MemberFunction< T, Result, Arg1 >::FunctionType)(Arg1)

Function signature for callback function attached to this template callback class.

template<class T , class Result , class Arg1 >

typedef Callback1MemberFunction<T, Result, Arg1> NXOpen::Callback1MemberFunction< T, Result, Arg1 >::MyClass

Template typedef of class signature.

Used to simplify implementation of callback framework methods.

Constructor & Destructor Documentation

template<class T , class Result , class Arg1 >

NXOpen::Callback1MemberFunction< T, Result, Arg1 >::Callback1MemberFunction	(	T *	object,
		FunctionType	fn
	)

Constructor.

Member Function Documentation

template<class T , class Result , class Arg1 >

virtual BaseCallback* NXOpen::Callback1MemberFunction< T, Result, Arg1 >::Clone ( ) const

virtual

Function interface for clone operation.

Derived classes will define this function to implement a deep copy operation.

Implements NXOpen::BaseCallback.

template<class T , class Result , class Arg1 >

virtual bool NXOpen::Callback1MemberFunction< T, Result, Arg1 >::Equals ( const BaseCallback &  other ) const

virtual

Function interface for equality operation.

Implements NXOpen::BaseCallback.

template<class T , class Result , class Arg1 >

virtual Result NXOpen::Callback1MemberFunction< T, Result, Arg1 >::operator() ( Arg1  a1 ) const

virtual

Function call operator function to invoke callback member function attached to this Callback1MemberFunction instance.

Implements NXOpen::Callback1< Result, Arg1 >.

---

The documentation for this class was generated from the following file:

• Callback.hxx
