NXOpen::Assemblies::Subset Class Reference

A subset is a set of design elements within a collaborative design. More...

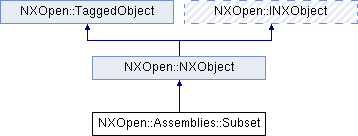

Inheritance diagram for NXOpen::Assemblies::Subset:

Public Types
enum	PartitionViewStyleType { PartitionViewStyleTypeNone, PartitionViewStyleTypeFlat, PartitionViewStyleTypeHierarchical }
	Represents the type of partition view style to show for a subset. More...
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Public Member Functions
void	AddAllChildrenToSubset (const std::vector< NXOpen::Assemblies::Component * > &reuseDesignElements)
	Adds all the child components of the selected Reuse Design Element to the owning subset.
void	AddConnectedByElements ()
	Add Elements to a subset that reference the existing Design Elements in it by a Connection relation.
void	AddInterpartParents ()
	Add sources of interpart relationships (wave links in the subset and Connected To relationships for design features) that are not in the specified subset to the subset recipe.
void	AddNewChildrenToSubset ()
	If the Reuse Design Elements in the subset contain any new components which were not added to the subset because its owning workset was not the displayed part at the time of creation, then add those new components to the subset now.
NXOpen::Assemblies::Component *	ComponentInWorkset ()
	Returns the Component that corresponds to this subset in the workset ComponentAssembly .
void	DeleteFromCollaborativeDesign (const std::vector< NXOpen::NXObject * > &designElement)
	Deletes the design elements from the owning CollaborativeDesign .
NXString	Description ()
	Returns the description of this subset.
std::vector < NXOpen::PDM::DesignElementRevision * >	GetDesignElementRevisionMembers ()
	The PDM::DesignElementRevision s that are members of this subset.
std::vector < NXOpen::PDM::DesignElementRevision * >	GetDesignElementRevisionParents ()
	The PDM::DesignElementRevision s that have been loaded because they contain a PDM::DesignSubordinateRevision that belongs to this subset.
std::vector < NXOpen::PDM::DesignSubordinateRevision * >	GetDesignSubordinateRevisionMembers ()
	The PDM::DesignSubordinateRevision s that are members of this subset.
std::vector < NXOpen::PDM::DesignSubordinateRevision * >	GetDesignSubordinateRevisionParents ()
	The PDM::DesignSubordinateRevision s that have been loaded because they contain a PDM::DesignSubordinateRevision that belongs to this subset.
void	HideCollaborativeDesignPreview ()
	Hides the preview for the Collaborative Design in the graphics window if it was already displayed.
bool	IsCollaborativeDesignPreviewDisplayed ()
	Is the preview for the Collaborative Design being displayed in the Graphics window.
NXOpen::Assemblies::Subset::PartitionViewStyleType	PartitionViewStyle ()
	Returns the partition view style to show.
void	RemoveDesignElements (const std::vector< NXOpen::NXObject * > &designElements)
	Removes the design elements from this subset.
void	ReplayRecipe ()
	Replay this subset.
void	SetPartitionViewStyle (NXOpen::Assemblies::Subset::PartitionViewStyleType partitionViewStyle)
	Sets the partition view style to show.
void	SetShowSubsetStructure (bool showSubsetStructure)
	Sets the subset structure to be shown or not.
bool	ShowCollaborativeDesignPreview ()
	Displays the preview for the Collaborative Design in the graphics window.
bool	ShowSubsetStructure ()
	Returns the subset structure to be shown or not.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

A subset is a set of design elements within a collaborative design.

<br> To create or edit an instance of this class, use @link Assemblies::SubsetBuilder  Assemblies::SubsetBuilder @endlink  <br>

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Assemblies::Subset::PartitionViewStyleType

Represents the type of partition view style to show for a subset.

Enumerator:

PartitionViewStyleTypeNone	Show no partition view style for subset.
PartitionViewStyleTypeFlat	Show flat partition view style for subset.
PartitionViewStyleTypeHierarchical	Show hierachical view style for subset.

Member Function Documentation

void NXOpen::Assemblies::Subset::AddAllChildrenToSubset

(

const std::vector< NXOpen::Assemblies::Component * > &

reuseDesignElements

)

Adds all the child components of the selected Reuse Design Element to the owning subset.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

reuseDesignElements

reusedesignelements

void NXOpen::Assemblies::Subset::AddConnectedByElements

(

)

Add Elements to a subset that reference the existing Design Elements in it by a Connection relation.

       A typical example will be to add Weld Design Features that reference any of the Design Elements in this subset.
       The recipe will be modified and explicit include terms will be added for each Element.
       The modified recipe will be replayed at the end of the operation.
       See @link JA_SUBSET_AddInterpartParents JA_SUBSET_AddInterpartParents@endlink "

Created in NX8.5.1.

License requirements : nx_4gd_integration ("4th Generation Design")

void NXOpen::Assemblies::Subset::AddInterpartParents

(

)

Add sources of interpart relationships (wave links in the subset and Connected To relationships for design features) that are not in the specified subset to the subset recipe.

       The recipe will be modified and explicit include terms will be added for each parent.
       The modified recipe will be replayed at the end of the operation.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

void NXOpen::Assemblies::Subset::AddNewChildrenToSubset

(

)

If the Reuse Design Elements in the subset contain any new components which were not added to the subset because its owning workset was not the displayed part at the time of creation, then add those new components to the subset now.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

NXOpen::Assemblies::Component* NXOpen::Assemblies::Subset::ComponentInWorkset

(

)

Returns the Component that corresponds to this subset in the workset ComponentAssembly .

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

void NXOpen::Assemblies::Subset::DeleteFromCollaborativeDesign

(

const std::vector< NXOpen::NXObject * > &

designElement

)

Deletes the design elements from the owning CollaborativeDesign .

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

designElement

designelement

NXString NXOpen::Assemblies::Subset::Description

(

)

Returns the description of this subset.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

std::vector<NXOpen::PDM::DesignElementRevision *> NXOpen::Assemblies::Subset::GetDesignElementRevisionMembers

(

)

The PDM::DesignElementRevision s that are members of this subset.

       Note that this does not include elements that have been loaded only because they contain
       a @link PDM::DesignSubordinateRevision PDM::DesignSubordinateRevision@endlink  that belongs to this subset.
       See @link GetDesignElementRevisionParents GetDesignElementRevisionParents@endlink
    @return

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

std::vector<NXOpen::PDM::DesignElementRevision *> NXOpen::Assemblies::Subset::GetDesignElementRevisionParents

(

)

The PDM::DesignElementRevision s that have been loaded because they contain a PDM::DesignSubordinateRevision that belongs to this subset.

    @return

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

std::vector<NXOpen::PDM::DesignSubordinateRevision *> NXOpen::Assemblies::Subset::GetDesignSubordinateRevisionMembers

(

)

The PDM::DesignSubordinateRevision s that are members of this subset.

       Note that this does not include elements that have been loaded only because they contain
       a @link PDM::DesignSubordinateRevision PDM::DesignSubordinateRevision@endlink  that belongs to this subset.
       See @link GetDesignSubordinateRevisionParents GetDesignSubordinateRevisionParents@endlink
    @return

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

std::vector<NXOpen::PDM::DesignSubordinateRevision *> NXOpen::Assemblies::Subset::GetDesignSubordinateRevisionParents

(

)

The PDM::DesignSubordinateRevision s that have been loaded because they contain a PDM::DesignSubordinateRevision that belongs to this subset.

    @return

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

void NXOpen::Assemblies::Subset::HideCollaborativeDesignPreview

(

)

Hides the preview for the Collaborative Design in the graphics window if it was already displayed.

       See @link ShowCollaborativeDesignPreview ShowCollaborativeDesignPreview@endlink .

Created in NX8.5.1.

License requirements : nx_4gd_integration ("4th Generation Design")

bool NXOpen::Assemblies::Subset::IsCollaborativeDesignPreviewDisplayed

(

)

Is the preview for the Collaborative Design being displayed in the Graphics window.

    @return

Created in NX8.5.1.

License requirements : nx_4gd_integration ("4th Generation Design")

NXOpen::Assemblies::Subset::PartitionViewStyleType NXOpen::Assemblies::Subset::PartitionViewStyle

(

)

Returns the partition view style to show.

Created in NX9.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

void NXOpen::Assemblies::Subset::RemoveDesignElements

(

const std::vector< NXOpen::NXObject * > &

designElements

)

Removes the design elements from this subset.

This will not delete the design element from the owning CollaborativeDesign .

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

designElements

designelements

void NXOpen::Assemblies::Subset::ReplayRecipe

(

)

Replay this subset.

This will perform a search using the current subset recipe and configuration. The contents of the subset will be changed accordingly.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

void NXOpen::Assemblies::Subset::SetPartitionViewStyle

(

NXOpen::Assemblies::Subset::PartitionViewStyleType

partitionViewStyle

)

Sets the partition view style to show.

Created in NX9.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

partitionViewStyle

partitionviewstyle

void NXOpen::Assemblies::Subset::SetShowSubsetStructure

(

bool

showSubsetStructure

)

Sets the subset structure to be shown or not.

Created in NX9.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

showSubsetStructure

showsubsetstructure

bool NXOpen::Assemblies::Subset::ShowCollaborativeDesignPreview

(

)

Displays the preview for the Collaborative Design in the graphics window.

       The preview is stored as a JT dataset on the Collaborative Design.
       Any transformation specific to this subset will also be applied to the preview.
       isPreviewAvailable will be false if no JT dataset could be found.
       See @link HideCollaborativeDesignPreview HideCollaborativeDesignPreview@endlink .
    @return

Created in NX8.5.1.

License requirements : nx_4gd_integration ("4th Generation Design")

bool NXOpen::Assemblies::Subset::ShowSubsetStructure

(

)

Returns the subset structure to be shown or not.

Created in NX9.0.0.

License requirements : nx_4gd_integration ("4th Generation Design")

---

The documentation for this class was generated from the following file:

• Assemblies_Subset.hxx
