Represents the object for component pattern. More...

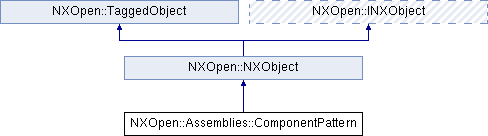

Inheritance diagram for NXOpen::Assemblies::ComponentPattern:
Public Member Functions | |
| void | ChangeReferencePatternTemplate (int firstBaseInstanceIndex, int secondBaseInstanceIndex) |
| Change the template component of reference pattern to a pattern member at indices (firstBaseInstanceIndex, secondBaseInstanceIndex). | |
| void | Delete (bool deleteComponents) |
| The method to delete the component pattern. | |
| void | DisplayInformation () |
| Display information of the component pattern. | |
| std::vector < NXOpen::Assemblies::PatternMember * > | GetAllPatternMembers () |
| Returns all the pattern members. | |
| std::vector < NXOpen::Assemblies::Component * > | GetComponentsToPattern () |
| Get all the components that are selected for pattern. | |
| bool | GetPatternDeferredStatus () |
| The deferred status of the component pattern. | |
| NXString | GetPatternName () |
| The component pattern name. | |
| bool | GetPatternSuppressedStatus () |
| The suppressed status of the component pattern. | |
| NXOpen::PartLoadStatus * | LoadRelatedGeometry () |
| Loads parts containing data referenced by this pattern, including the parts that are patterned and parts containing the objects that define the pattern parameters. | |
| void | Suppress () |
| The method to suppress the component pattern. | |
| void | Unsuppress () |
| The method to unsuppress the component pattern. | |
 Public Member Functions inherited from NXOpen::NXObject | |
| void | DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type) |
| Deletes all attributes of a specific type. | |
| void | DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option) |
| Deletes all attributes of a specific type with the option to update or not. | |
| void | DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title) |
| Deletes an attribute by type and title. | |
| void | DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title) |
| Deletes an attribute by type and title. | |
| void | DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option) |
| Deletes an attribute by type and title with the option to update or not. | |
| void | DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option) |
| Deletes an attribute by type and title with the option to update or not. | |
| void | DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option) |
| Deletes the first attribute encountered with the given Type, Title and Index. | |
| void | DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option) |
| Deletes the first attribute encountered with the given Type, Title and Index. | |
| void | DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option) |
| Deletes the attributes encountered with the given Type with option to update or not. | |
| virtual NXOpen::INXObject * | FindObject (const NXString &journalIdentifier) |
| Finds the NXObject with the given identifier as recorded in a journal. | |
| NXOpen::INXObject * | FindObject (const char *journalIdentifier) |
| Finds the NXObject with the given identifier as recorded in a journal. | |
| std::vector < NXOpen::NXObject::AttributeInformation > | GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type) |
| Gets all the attribute titles of a specific type. | |
| bool | GetBooleanUserAttribute (const NXString &title, int index) |
| Gets a boolean attribute by Title and array Index. | |
| bool | GetBooleanUserAttribute (const char *title, int index) |
| Gets a boolean attribute by Title and array Index. | |
| NXOpen::NXObject::ComputationalTime | GetComputationalTimeUserAttribute (const NXString &title, int index) |
| Gets a time attribute by Title and array Index. | |
| NXOpen::NXObject::ComputationalTime | GetComputationalTimeUserAttribute (const char *title, int index) |
| Gets a time attribute by Title and array Index. | |
| int | GetIntegerAttribute (const NXString &title) |
| Gets an integer attribute by title. | |
| int | GetIntegerAttribute (const char *title) |
| Gets an integer attribute by title. | |
| int | GetIntegerUserAttribute (const NXString &title, int index) |
| Gets an integer attribute by Title and array Index. | |
| int | GetIntegerUserAttribute (const char *title, int index) |
| Gets an integer attribute by Title and array Index. | |
| double | GetRealAttribute (const NXString &title) |
| Gets a real attribute by title. | |
| double | GetRealAttribute (const char *title) |
| Gets a real attribute by title. | |
| double | GetRealUserAttribute (const NXString &title, int index) |
| Gets a real attribute by Title and array Index. | |
| double | GetRealUserAttribute (const char *title, int index) |
| Gets a real attribute by Title and array Index. | |
| NXString | GetReferenceAttribute (const NXString &title) |
| Gets the reference string (not the calculated value) of a string attribute that uses a reference string. | |
| NXString | GetReferenceAttribute (const char *title) |
| Gets the reference string (not the calculated value) of a string attribute that uses a reference string. | |
| NXString | GetStringAttribute (const NXString &title) |
| Gets a string attribute value by title. | |
| NXString | GetStringAttribute (const char *title) |
| Gets a string attribute value by title. | |
| NXString | GetStringUserAttribute (const NXString &title, int index) |
| Gets a string attribute by Title and array Index. | |
| NXString | GetStringUserAttribute (const char *title, int index) |
| Gets a string attribute by Title and array Index. | |
| NXString | GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title) |
| Gets a time attribute by title. | |
| NXString | GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title) |
| Gets a time attribute by title. | |
| NXString | GetTimeUserAttribute (const NXString &title, int index) |
| Gets a time attribute by Title and array Index. | |
| NXString | GetTimeUserAttribute (const char *title, int index) |
| Gets a time attribute by Title and array Index. | |
| NXOpen::NXObject::AttributeInformation | GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index) |
| Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index. | |
| NXOpen::NXObject::AttributeInformation | GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index) |
| Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index. | |
| NXString | GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index) |
| Gets the first attribute encountered on the object, if any, with a given title, type and array index. | |
| NXString | GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index) |
| Gets the first attribute encountered on the object, if any, with a given title, type and array index. | |
| bool | GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type) |
| Determine the lock of the given attribute. | |
| bool | GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type) |
| Determine the lock of the given attribute. | |
| std::vector < NXOpen::NXObject::AttributeInformation > | GetUserAttributes () |
| Gets all the attributes that have been set on the given object. | |
| std::vector < NXOpen::NXObject::AttributeInformation > | GetUserAttributes (bool includeUnset) |
| Gets all the attributes that have been set on the given object. | |
| std::vector < NXOpen::NXObject::AttributeInformation > | GetUserAttributes (bool includeUnset, bool addStringValues) |
| Gets all the attributes that have been set on the given object. | |
| std::vector< NXString > | GetUserAttributesAsStrings () |
| Gets all the attributes that have been set on the given object. | |
| std::vector< NXOpen::NXObject * > | GetUserAttributeSourceObjects () |
| Returns an array of objects from which this object presents attributes. | |
| bool | HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index) |
| Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time). | |
| bool | HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index) |
| Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time). | |
| virtual bool | IsOccurrence () |
| Returns whether this object is an occurrence or not. | |
| virtual NXString | JournalIdentifier () |
| Returns the identifier that would be recorded in a journal for this object. | |
| virtual NXString | Name () |
| Returns the custom name of the object. | |
| virtual NXOpen::Assemblies::Component * | OwningComponent () |
| Returns the owning component, if this object is an occurrence. | |
| virtual NXOpen::BasePart * | OwningPart () |
| Returns the owning part of this object Created in NX3.0.0. | |
| virtual void | Print () |
| Prints a representation of this object to the system log file. | |
| virtual NXOpen::INXObject * | Prototype () |
| Returns the prototype of this object if it is an occurrence. | |
| void | SetAttribute (const NXString &title, int value) |
| Creates or modifies an integer attribute. | |
| void | SetAttribute (const char *title, int value) |
| Creates or modifies an integer attribute. | |
| void | SetAttribute (const NXString &title, int value, NXOpen::Update::Option option) |
| Creates or modifies an integer attribute with the option to update or not. | |
| void | SetAttribute (const char *title, int value, NXOpen::Update::Option option) |
| Creates or modifies an integer attribute with the option to update or not. | |
| void | SetAttribute (const NXString &title, double value) |
| Creates or modifies a real attribute. | |
| void | SetAttribute (const char *title, double value) |
| Creates or modifies a real attribute. | |
| void | SetAttribute (const NXString &title, double value, NXOpen::Update::Option option) |
| Creates or modifies a real attribute with the option to update or not. | |
| void | SetAttribute (const char *title, double value, NXOpen::Update::Option option) |
| Creates or modifies a real attribute with the option to update or not. | |
| void | SetAttribute (const NXString &title, const NXString &value) |
| Creates or modifies a string attribute. | |
| void | SetAttribute (const char *title, const char *value) |
| Creates or modifies a string attribute. | |
| void | SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option) |
| Creates or modifies a string attribute with the option to update or not. | |
| void | SetAttribute (const char *title, const char *value, NXOpen::Update::Option option) |
| Creates or modifies a string attribute with the option to update or not. | |
| void | SetAttribute (const NXString &title) |
| Creates or modifies a null attribute which is an attribute with a title and no value. | |
| void | SetAttribute (const char *title) |
| Creates or modifies a null attribute which is an attribute with a title and no value. | |
| void | SetAttribute (const NXString &title, NXOpen::Update::Option option) |
| Creates or modifies a null attribute with the option to update or not. | |
| void | SetAttribute (const char *title, NXOpen::Update::Option option) |
| Creates or modifies a null attribute with the option to update or not. | |
| void | SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option) |
| Creates or modifies a boolean attribute with the option to update or not. | |
| void | SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option) |
| Creates or modifies a boolean attribute with the option to update or not. | |
| virtual void | SetName (const NXString &name) |
| Sets the custom name of the object. | |
| void | SetName (const char *name) |
| Sets the custom name of the object. | |
| void | SetReferenceAttribute (const NXString &title, const NXString &value) |
| Creates or modifies a string attribute which uses a reference string. | |
| void | SetReferenceAttribute (const char *title, const char *value) |
| Creates or modifies a string attribute which uses a reference string. | |
| void | SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option) |
| Creates or modifies a string attribute which uses a reference string, with the option to update or not. | |
| void | SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option) |
| Creates or modifies a string attribute which uses a reference string, with the option to update or not. | |
| void | SetTimeAttribute (const NXString &title, const NXString &value) |
| Creates or modifies a time attribute. | |
| void | SetTimeAttribute (const char *title, const char *value) |
| Creates or modifies a time attribute. | |
| void | SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option) |
| Creates or modifies a time attribute with the option to update or not. | |
| void | SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option) |
| Creates or modifies a time attribute with the option to update or not. | |
| void | SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option) |
| Creates or modifies a time attribute with the option to update or not. | |
| void | SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option) |
| Creates or modifies a time attribute with the option to update or not. | |
| void | SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option) |
| Creates or modifies a time attribute with the option to update or not. | |
| void | SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option) |
| Creates or modifies a time attribute with the option to update or not. | |
| void | SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option) |
| Creates or modifies an attribute with the option to update or not. | |
| void | SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option) |
| Creates or modifies an integer attribute with the option to update or not. | |
| void | SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option) |
| Creates or modifies an integer attribute with the option to update or not. | |
| void | SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option) |
| Creates or modifies a real attribute with the option to update or not. | |
| void | SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option) |
| Creates or modifies a real attribute with the option to update or not. | |
| void | SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option) |
| Creates or modifies a string attribute with the option to update or not. | |
| void | SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option) |
| Creates or modifies a string attribute with the option to update or not. | |
| void | SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option) |
| Creates or modifies a null attribute with the option to update or not. | |
| void | SetUserAttribute (const char *title, int index, NXOpen::Update::Option option) |
| Creates or modifies a null attribute with the option to update or not. | |
| void | SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock) |
| Lock or unlock the given attribute. | |
| void | SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock) |
| Lock or unlock the given attribute. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
| Public Member Functions inherited from NXOpen::INXObject | |
| NXOpen::INXObject * | FindObject (const char *journalIdentifier) |
| Finds the NXObject with the given identifier as recorded in a journal. | |
| void | SetName (const char *name) |
| Sets the custom name of the object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::NXObject | |
| enum | AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 } |
| Specifies attribute type. More... | |
| enum | DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual } |
| Specifies the format of the date and time attribute. More... | |
Detailed Description
Represents the object for component pattern.
<br> To create or edit an instance of this class, use @link Assemblies::ComponentPatternBuilder Assemblies::ComponentPatternBuilder @endlink <br>
Created in NX9.0.0.
Member Function Documentation
| void NXOpen::Assemblies::ComponentPattern::ChangeReferencePatternTemplate | ( | int | firstBaseInstanceIndex, |
| int | secondBaseInstanceIndex | ||
| ) |
Change the template component of reference pattern to a pattern member at indices (firstBaseInstanceIndex, secondBaseInstanceIndex).
Created in NX9.0.0.
License requirements : None
- Parameters
-
firstBaseInstanceIndex firstbaseinstanceindex secondBaseInstanceIndex secondbaseinstanceindex
| void NXOpen::Assemblies::ComponentPattern::Delete | ( | bool | deleteComponents | ) |
The method to delete the component pattern.
Created in NX9.0.0.
License requirements : assemblies ("ASSEMBLIES MODULE")
- Parameters
-
deleteComponents deletecomponents
| void NXOpen::Assemblies::ComponentPattern::DisplayInformation | ( | ) |
Display information of the component pattern.
Created in NX9.0.0.
License requirements : None
| std::vector<NXOpen::Assemblies::PatternMember *> NXOpen::Assemblies::ComponentPattern::GetAllPatternMembers | ( | ) |
Returns all the pattern members.
@return
Created in NX9.0.0.
License requirements : None
| std::vector<NXOpen::Assemblies::Component *> NXOpen::Assemblies::ComponentPattern::GetComponentsToPattern | ( | ) |
Get all the components that are selected for pattern.
@return
Created in NX9.0.0.
License requirements : None
| bool NXOpen::Assemblies::ComponentPattern::GetPatternDeferredStatus | ( | ) |
The deferred status of the component pattern.
@return
Created in NX9.0.0.
License requirements : None
| NXString NXOpen::Assemblies::ComponentPattern::GetPatternName | ( | ) |
The component pattern name.
@return
Created in NX9.0.0.
License requirements : None
| bool NXOpen::Assemblies::ComponentPattern::GetPatternSuppressedStatus | ( | ) |
The suppressed status of the component pattern.
@return
Created in NX9.0.0.
License requirements : None
| NXOpen::PartLoadStatus* NXOpen::Assemblies::ComponentPattern::LoadRelatedGeometry | ( | ) |
Loads parts containing data referenced by this pattern, including the parts that are patterned and parts containing the objects that define the pattern parameters.
@return Error information for any part that could not be loaded.
Created in NX9.0.0.
License requirements : assemblies ("ASSEMBLIES MODULE")
| void NXOpen::Assemblies::ComponentPattern::Suppress | ( | ) |
The method to suppress the component pattern.
Created in NX9.0.0.
License requirements : assemblies ("ASSEMBLIES MODULE")
| void NXOpen::Assemblies::ComponentPattern::Unsuppress | ( | ) |
The method to unsuppress the component pattern.
Created in NX9.0.0.
License requirements : assemblies ("ASSEMBLIES MODULE")
The documentation for this class was generated from the following file:
- Assemblies_ComponentPattern.hxx
