Represents a vertical ordinate margin
Created in NX4.0.0.
More...

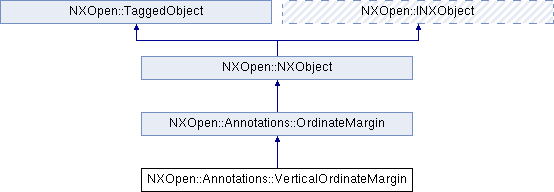

Inheritance diagram for NXOpen::Annotations::VerticalOrdinateMargin:
Additional Inherited Members | |
 Public Types inherited from NXOpen::NXObject | |
| enum | AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 } |
| Specifies attribute type. More... | |
| enum | DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual } |
| Specifies the format of the date and time attribute. More... | |
| Public Member Functions inherited from NXOpen::Annotations::OrdinateMargin | |
| void | DeleteMargin (NXOpen::Annotations::OrdinateOriginDimension *ordinateOrigin) |
| Deletes a defined ordinate margin object from the ordinate set. | |
| void | MoveMargin (double offset) |
| Moves an ordinate margin object by specifying a new offset from the margin origin. | |
| void | RedefineMargin (NXOpen::Annotations::OrdinateOriginDimension *ordinateOrigin, NXOpen::Annotations::Associativity *associativity) |
| Redefines an ordinate margin object by specifying a new associativity. | |
Detailed Description
Represents a vertical ordinate margin
Created in NX4.0.0.
The documentation for this class was generated from the following file:
- Annotations_VerticalOrdinateMargin.hxx
