This builder allows you to define one parameter for a symbol
To create a new instance of this class, use Annotations::SymbolCatalogBuilder::NewParameter

Created in NX8.0.0. More...

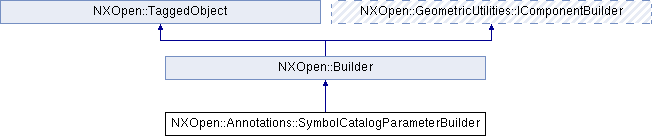

Inheritance diagram for NXOpen::Annotations::SymbolCatalogParameterBuilder:

Public Member Functions
NXString	Label ()
	Returns the label string of the parameter, NOTE: Client must free the returned char* with SM_free.

NXString	LogicalName ()
	Returns the logical name of the parameter, NOTE: Client must free the returned char* with SM_free.

void	SetLabel (const NXString &label)
	Sets the label string of the parameter, NOTE: Client must free the returned char* with SM_free.

void	SetLabel (const char *label)
	Sets the label string of the parameter, NOTE: Client must free the returned char* with SM_free.

void	SetLogicalName (const NXString &name)
	Sets the logical name of the parameter, NOTE: Client must free the returned char* with SM_free.

void	SetLogicalName (const char *name)
	Sets the logical name of the parameter, NOTE: Client must free the returned char* with SM_free.

void	SetValue (const NXString &paraValue)
	Sets the value string of the parameter, NOTE: Client must free the returned char* with SM_free.

void	SetValue (const char *paraValue)
	Sets the value string of the parameter, NOTE: Client must free the returned char* with SM_free.

NXString	Value ()
	Returns the value string of the parameter, NOTE: Client must free the returned char* with SM_free.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This builder allows you to define one parameter for a symbol
To create a new instance of this class, use Annotations::SymbolCatalogBuilder::NewParameter

Created in NX8.0.0.

Member Function Documentation

NXString NXOpen::Annotations::SymbolCatalogParameterBuilder::Label ( )

Returns the label string of the parameter, NOTE: Client must free the returned char* with SM_free.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Annotations::SymbolCatalogParameterBuilder::LogicalName ( )

Returns the logical name of the parameter, NOTE: Client must free the returned char* with SM_free.

Created in NX8.0.0.

License requirements : None

void NXOpen::Annotations::SymbolCatalogParameterBuilder::SetLabel ( const NXString & label )

Sets the label string of the parameter, NOTE: Client must free the returned char* with SM_free.
