NXOpen::Annotations::SearchModelView Class Reference

Represents a search model view
To create or edit an instance of this class, use Annotations::SearchModelViewBuilder

Created in NX7.5.0. More...

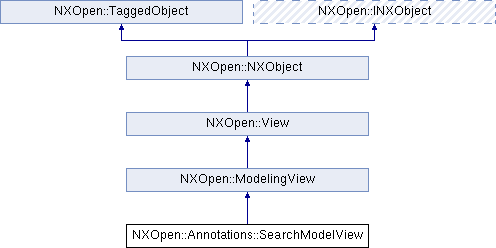

Inheritance diagram for NXOpen::Annotations::SearchModelView:

Additional Inherited Members
Public Types inherited from NXOpen::ModelingView
enum	SectionCap { SectionCapOff, SectionCapOn, SectionCapBodyColor, SectionCapBodyColorAndInterference }
	Defines whether to disable and enable capping. More...
enum	SectionPlane { SectionPlanePrimary, SectionPlaneSecondary }
	This arbitrarily defines an initaial reference point. More...
Public Member Functions inherited from NXOpen::ModelingView
NXOpen::Display::DynamicSection *	ActiveDynamicSection ()
	Returns the active dynamic section object in the modeling view.
bool	DisplaySectioningToggle ()
	Returns the toggle between enabling or disabling the Dynamic Sectioning viewing Created in NX4.0.0.
void	GetDisplaySectioning (NXOpen::Matrix3x3 *sectionMatrix, NXOpen::Point3d *sectionOrigin, std::vector< double > &planeDist, NXOpen::ModelingView::OtherSectionAttrT *otherAttrs)
	To adjust and orient the Sectioning planes as a quick display trick.
NXOpen::ModelingViewHighQualityImage *	HiqhQualityImage ()
	Returns the High Quality Image instance belonging to a view Created in NX3.0.0.
bool	IsDynamicSectionVisible (NXOpen::Display::DynamicSection *dynamicSection)
	Returns if the specified dynamic section object is visible in this view.
bool	IsMirrored ()
	Returns a flag indicating whether the model view is mirrored Created in NX8.5.0.
void	SetActiveDynamicSection (NXOpen::Display::DynamicSection *dynamicSection)
	Sets the active dynamic section object in the modeling view.
void	SetDisplaySectioning (const NXOpen::Matrix3x3 &sectionMatrix, const NXOpen::Point3d &sectionOrigin, const std::vector< double > &planeDist, const NXOpen::ModelingView::OtherSectionAttrT &otherAttrs)
	To adjust and orient the Sectioning planes as a quick display trick.
void	SetDisplaySectioningToggle (bool newState)
	Sets the toggle between enabling or disabling the Dynamic Sectioning viewing Created in NX4.0.0.
void	SetDynamicSectionVisible (NXOpen::Display::DynamicSection *dynamicSection, bool visible)
	Sets the specified dynamic section object is visible/invisible in this view.
void	UseDefaultLights ()
	Changes the set of lights used in the given view to the "Default" set, which for now is the Scene Ambient, Scene Left Top and Scene Right Top lights.
void	UseSceneLights ()
	Changes the set of lights used in the given view to the "Scene" set, which for now includes the eight predefined scene lights (including the Scene Ambient light).

Detailed Description

Represents a search model view
To create or edit an instance of this class, use Annotations::SearchModelViewBuilder

Created in NX7.5.0.

---

The documentation for this class was generated from the following file:

• Annotations_SearchModelView.hxx
