Represents a PMI filter defined by a set of parts. More...

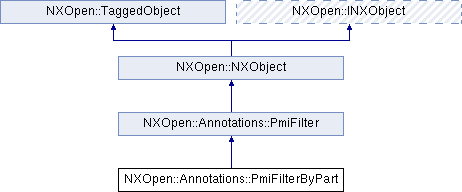

Inheritance diagram for NXOpen::Annotations::PmiFilterByPart:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Annotations::PmiFilter | |
| enum | ComponentMethod { ComponentMethodSelected, ComponentMethodSelectedAndChildren, ComponentMethodAll } |
| Specifies the type of component method used on the associated components for display. More... | |
| enum | FilterType { FilterTypeByType, FilterTypeByView, FilterTypeByComponent } |
| Represents a type of PMI filter that can be created using the Part Navigator. More... | |
| Public Member Functions inherited from NXOpen::Annotations::PmiFilter | |
| void | ApplyToView (NXOpen::View *view) |
| Applies the PMI filter to a view. | |
| NXOpen::Annotations::PmiFilter * | Copy () |
| Creates a copy of the PMI filter. | |
| void | EnableInView (NXOpen::View *view, bool enabled) |
| Enables or disables the PMI filter in a given view Created in NX4.0.0. | |
| std::vector< NXOpen::View * > | GetAppliedViews () |
| Gets the views where the PMI filter is applied. | |
| NXOpen::Annotations::PmiFilter::ComponentMethod | GetComponentMethod () |
| Gets the component method of the PMI filter. | |
| std::vector < NXOpen::Assemblies::Component * > | GetComponents () |
| Gets the components associated with the PMI filter. | |
| NXOpen::Annotations::PmiFilter::FilterType | GetFilterType () |
| Gets the type of PMI filter. | |
| bool | IsEnabled (NXOpen::View *view) |
| Determines if the PMI filter is enabled in the view. | |
| void | RemoveFromView (NXOpen::View *view) |
| Removes a PMI filter from a view. | |
| void | SetComponentMethod (NXOpen::Annotations::PmiFilter::ComponentMethod componentMethod) |
| Sets the component method of the PMI filter. | |
| void | SetComponents (const std::vector< NXOpen::Assemblies::Component * > &components) |
| Sets the components associated with the PMI filter. | |
| void | UpdatePmiDisplay () |
| Updates the PMI display in the associated views of the filter Created in NX8.5.0. | |
Detailed Description
Represents a PMI filter defined by a set of parts.
Created in NX4.0.0.
The documentation for this class was generated from the following file:
- Annotations_PmiFilterByPart.hxx
