Builder for creating Pmi 3D Centerline. More...

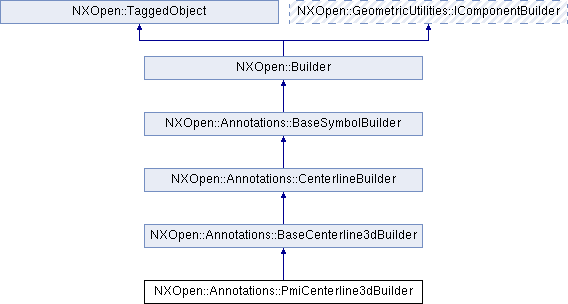

Inheritance diagram for NXOpen::Annotations::PmiCenterline3dBuilder:
Public Member Functions | |
| NXOpen::Annotations::AssociatedObjectsBuilder * | AssociatedObjects () |
| Returns the associated objects for the 3D Centerline Created in NX7.5.0. | |
 Public Member Functions inherited from NXOpen::Annotations::BaseCenterline3dBuilder | |
| NXOpen::SelectNXObjectList * | Face () |
| Returns the face Created in NX6.0.0. | |
| int | ReferenceIndex () |
| Returns the reference index Created in NX6.0.0. | |
| void | SetReferenceIndex (int referenceIndex) |
| Sets the reference index Created in NX6.0.0. | |
| NXOpen::Annotations::Centerline3dSettingsBuilder * | Settings () |
| Returns the settings builder Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Annotations::CenterlineBuilder | |
| void | AddEndExtensions (double start, double end) |
| Adds extensions only at ends Created in NX6.0.0. | |
| void | AddExtension (int index, double defaultValue) |
| Adds extension based on select object index Created in NX6.0.0. | |
| std::vector< double > | GetAllExtensions () |
| Returns all extensions. | |
| std::vector< double > | GetAllIndividualExtensions () |
| Returns individual extensions. | |
| std::vector< double > | GetEndExtensions () |
| Returns end extensions only. | |
| void | RemoveEndExtensions () |
| Removes extensions only at ends Created in NX6.0.0. | |
| void | RemoveExtension (int index) |
| Removes extension based on select object index Created in NX6.0.0. | |
| void | ResetAllExtensions (double defaultValue) |
| Reset all extensions by the supplied defaultValue Created in NX6.0.1. | |
| void | SetAllIndividualExtensions (const std::vector< double > &extensionValues) |
| Sets all individual extensions Created in NX8.0.1. | |
| void | SetEndExtensions (double start, double end) |
| Modifies end extensions only Created in NX6.0.0. | |
| void | SetIndividualExtensions (int index, double value1, double value2) |
| Modifies extensions based on select object index Created in NX6.0.0. | |
Detailed Description
Builder for creating Pmi 3D Centerline.
It creates or edits Pmi 3D Centerlines
To create a new instance of this class, use Annotations::CenterlineCollection::CreatePmiCenterline3dBuilder
Created in NX7.5.0.
Member Function Documentation
| NXOpen::Annotations::AssociatedObjectsBuilder* NXOpen::Annotations::PmiCenterline3dBuilder::AssociatedObjects | ( | ) |
Returns the associated objects for the 3D Centerline
Created in NX7.5.0.
License requirements : None
The documentation for this class was generated from the following file:
- Annotations_PmiCenterline3dBuilder.hxx
