Represents a @link Annotations::OffsetCenterPoint Annotations::OffsetCenterPoint@endlink  builder  <br> To create a new instance of this class, use @link Annotations::OffsetCenterPointCollection::CreateOffsetCenterPointBuilder  Annotations::OffsetCenterPointCollection::CreateOffsetCenterPointBuilder @endlink  <br>

Default values. More...

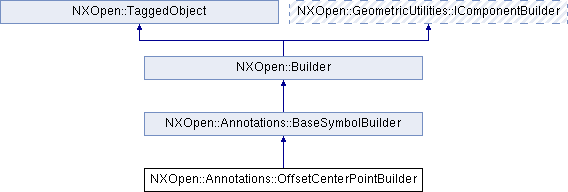

Inheritance diagram for NXOpen::Annotations::OffsetCenterPointBuilder:

Public Types
enum	Display { DisplayCenterPoint, DisplayCenterLine, DisplayCenterLineWithExtension }
	the valid types of display styles More...

enum	Offset { OffsetHorizontalDistanceFromArc, OffsetHorizontalDistanceFromCenter, OffsetHorizontalDistanceByPosition, OffsetVerticalDistanceFromArc, OffsetVerticalDistanceFromCenter, OffsetVerticalDistanceByPosition }
	the valid offset method types More...

enum	Thickness { ThicknessThin, ThicknessNormal, ThicknessThick, ThicknessOne = 6, ThicknessTwo, ThicknessThree, ThicknessFour, ThicknessFive, ThicknessSix, ThicknessSeven, ThicknessEight, ThicknessNine }
	the valid types of offset center point thickness More...

Public Member Functions
double	CenterCross ()
	Returns the center cross size Created in NX6.0.0.

NXOpen::NXColor *	Color ()
	Returns the color Created in NX6.0.0.

NXOpen::Annotations::OffsetCenterPointBuilder::Display	DisplayStyle ()
	Returns the display style Created in NX6.0.0.

double	Distance ()
	Returns the offset distance, valid for all offset method types except those by position Created in NX6.0.0.

double	Extension ()
	Returns the extension Created in NX6.0.0.

double	Gap ()
	Returns the gap Created in NX6.0.0.

NXOpen::SelectNXObject *	Inherit ()
	Returns the inherit Created in NX6.0.0.

NXOpen::SelectNXObject *	Location ()
	Returns the location Created in NX6.0.0.

NXOpen::Annotations::OffsetCenterPointBuilder::Offset	OffsetMethod ()
	Returns the offset method Created in NX6.0.0.

NXOpen::Point3d	OffsetPosition ()
	Returns the offset position, valid for position offset methods Created in NX6.0.0.

void	SetCenterCross (double centerCross)
	Sets the center cross size Created in NX6.0.0.

void	SetColor (NXOpen::NXColor *color)
	Sets the color Created in NX6.0.0.

void	SetDisplayStyle (NXOpen::Annotations::OffsetCenterPointBuilder::Display display)
	Sets the display style Created in NX6.0.0.

void	SetDistance (double distance)
	Sets the offset distance, valid for all offset method types except those by position Created in NX6.0.0.

void	SetExtension (double extension)
	Sets the extension Created in NX6.0.0.

void	SetGap (double gap)
	Sets the gap Created in NX6.0.0.

void	SetOffsetMethod (NXOpen::Annotations::OffsetCenterPointBuilder::Offset offsetMethod)
	Sets the offset method Created in NX6.0.0.

void	SetOffsetPosition (const NXOpen::Point3d &point)
	Sets the offset position, valid for position offset methods Created in NX6.0.0.

void	SetWidth (NXOpen::Annotations::OffsetCenterPointBuilder::Thickness width)
	Sets the width Created in NX6.0.0.

NXOpen::Annotations::OffsetCenterPointBuilder::Thickness	Width ()
	Returns the width Created in NX6.0.0.

Detailed Description

Represents a @link Annotations::OffsetCenterPoint Annotations::OffsetCenterPoint@endlink  builder  <br> To create a new instance of this class, use @link Annotations::OffsetCenterPointCollection::CreateOffsetCenterPointBuilder  Annotations::OffsetCenterPointCollection::CreateOffsetCenterPointBuilder @endlink  <br>

Default values.

Property

Value

CenterCross

3.175 (millimeters part), 0.125 (inches part)

DisplayStyle

CenterPoint

Distance

0

Extension

6.35 (millimeters part), 0.25 (inches part)

Gap

1.5875 (millimeters part), 0.0625 (inches part)

OffsetMethod

HorizontalDistanceFromArc

Width

Thin

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::OffsetCenterPointBuilder::Display

the valid types of display styles

Enumerator:

DisplayCenterPoint	center point
DisplayCenterLine	center line
DisplayCenterLineWithExtension	center line with extension

enum NXOpen::Annotations::OffsetCenterPointBuilder::Offset

the valid offset method types

Enumerator:

OffsetHorizontalDistanceFromArc	horizontal distance from arc
OffsetHorizontalDistanceFromCenter	horizontal distance from center
OffsetHorizontalDistanceByPosition	horizontal distance by position, applicable only for creation
OffsetVerticalDistanceFromArc	vertical distance from arc
OffsetVerticalDistanceFromCenter	vertical distance from center
OffsetVerticalDistanceByPosition	vertical distance by position, applicable only for creation

enum NXOpen::Annotations::OffsetCenterPointBuilder::Thickness

the valid types of offset center point thickness

Enumerator:

ThicknessThin	thin
ThicknessNormal	normal
ThicknessThick	thick
ThicknessTwo	Width Two.
ThicknessThree	Width Three.
ThicknessFour	Width Four.
ThicknessFive	Width Five.
ThicknessSix	Width Six.
ThicknessSeven	Width Seven.
ThicknessEight	Width Eight.
ThicknessNine	Width Nine.

Member Function Documentation

double NXOpen::Annotations::OffsetCenterPointBuilder::CenterCross ( )

Returns the center cross size
Created in NX6.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::Annotations::OffsetCenterPointBuilder::Color ( )

Returns the color
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::OffsetCenterPointBuilder::Display NXOpen::Annotations::OffsetCenterPointBuilder::DisplayStyle ( )

Returns the display style
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::OffsetCenterPointBuilder::Distance ( )

Returns the offset distance, valid for all offset method types except those by position
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::OffsetCenterPointBuilder::Extension ( )

Returns the extension
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::OffsetCenterPointBuilder::Gap ( )

Returns the gap
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::OffsetCenterPointBuilder::Inherit ( )

Returns the inherit
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::OffsetCenterPointBuilder::Location ( )

Returns the location
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::OffsetCenterPointBuilder::Offset NXOpen::Annotations::OffsetCenterPointBuilder::OffsetMethod ( )

Returns the offset method
Created in NX6.0.0.

License requirements : None

NXOpen::Point3d NXOpen::Annotations::OffsetCenterPointBuilder::OffsetPosition ( )

Returns the offset position, valid for position offset methods
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::OffsetCenterPointBuilder::SetCenterCross ( double centerCross )

Sets the center cross size
Created in NX6.0.0.
