Represents a General Label
To obtain an instance of this class use Annotations::LabelCollection
Created in NX7.5.0.
More...

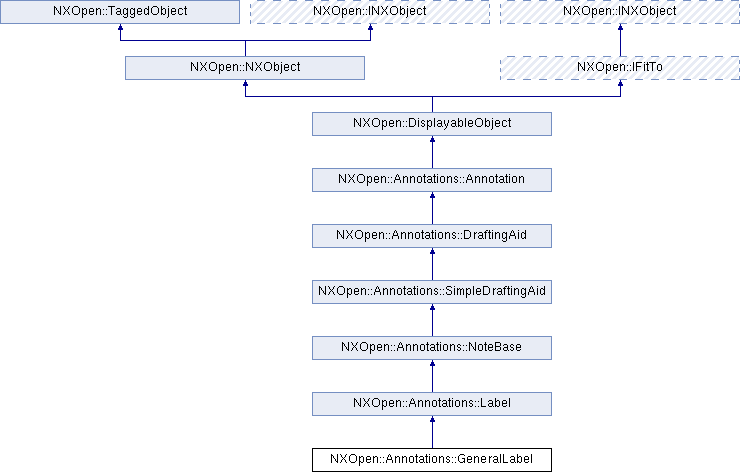

Inheritance diagram for NXOpen::Annotations::GeneralLabel:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::Annotations::SimpleDraftingAid | |
| std::vector< NXString > | GetText () |
| Returns the drafting aid's text. | |
| NXOpen::Annotations::UserSymbolPreferences * | GetUserSymbolPreferences () |
| Returns the user symbol preferences. | |
| void | GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType *sizeType, double *lengthOrScale, double *heightOrAspectRatio) |
| Gets the user symbol size Created in NX3.0.0. | |
| void | SetText (std::vector< NXString > &lines) |
| Sets the drafting aid's text. | |
| void | SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs) |
| Sets the user symbol preferences. | |
| void | SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio) |
| Sets the user symbol size. | |
Detailed Description
Represents a General Label
To obtain an instance of this class use Annotations::LabelCollection
Created in NX7.5.0.
The documentation for this class was generated from the following file:
- Annotations_GeneralLabel.hxx
