NXOpen::Annotations::EditTitleBlockBuilder Class Reference

Represents a Annotations::EditTitleBlockBuilder builder
To create a new instance of this class, use Annotations::TitleBlockCollection::CreateEditTitleBlockBuilder

Created in NX8.0.0. More...

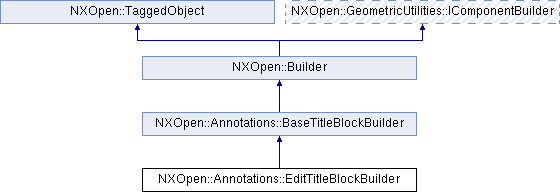

Inheritance diagram for NXOpen::Annotations::EditTitleBlockBuilder:

Public Member Functions
NXString	GetCellValueForLabel (const NXString &label)
	Return the value of the cell for given label.
NXString	GetCellValueForLabel (const char *label)
	Return the value of the cell for given label.
void	SetCellValueForLabel (const NXString &label, const NXString &value)
	Sets the value of the cell for given label Created in NX8.0.0.
void	SetCellValueForLabel (const char *label, const char *value)
	Sets the value of the cell for given label Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Annotations::BaseTitleBlockBuilder
NXOpen::Annotations::TitleBlockCellBuilderList *	Cells ()
	Returns the cells Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Annotations::EditTitleBlockBuilder builder
To create a new instance of this class, use Annotations::TitleBlockCollection::CreateEditTitleBlockBuilder

Created in NX8.0.0.

Member Function Documentation

NXString NXOpen::Annotations::EditTitleBlockBuilder::GetCellValueForLabel

(

const NXString &

label

)

Return the value of the cell for given label.

Returns

Returns the value of the label
Created in NX8.0.0.

License requirements : None

Parameters

label

Label whose value is quried

NXString NXOpen::Annotations::EditTitleBlockBuilder::GetCellValueForLabel

(

const char *

label

)

Return the value of the cell for given label.

Returns

Returns the value of the label
Created in NX8.0.0.

License requirements : None

Parameters

label

Label whose value is quried

void NXOpen::Annotations::EditTitleBlockBuilder::SetCellValueForLabel	(	const NXString &	label,
		const NXString &	value
	)

Sets the value of the cell for given label
Created in NX8.0.0.

License requirements : drafting ("DRAFTING")

Parameters

label	Label whose value is to be set
value	This value would be set for the given label

void NXOpen::Annotations::EditTitleBlockBuilder::SetCellValueForLabel	(	const char *	label,
		const char *	value
	)

Sets the value of the cell for given label
Created in NX8.0.0.

License requirements : drafting ("DRAFTING")

Parameters

label	Label whose value is to be set
value	This value would be set for the given label

---

The documentation for this class was generated from the following file:

• Annotations_EditTitleBlockBuilder.hxx
