NXOpen::Annotations::DatumTargetData Class Reference

Represents datum target data
Created in NX4.0.0. More...

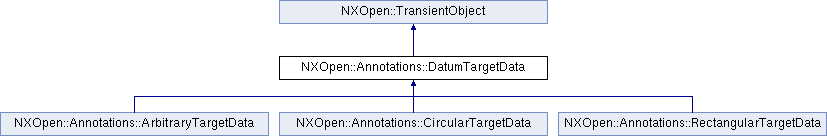

Inheritance diagram for NXOpen::Annotations::DatumTargetData:

Public Member Functions
NXString	DatumLabel ()
	Returns the datum label.
NXOpen::Annotations::SimpleDraftingAidPreferences *	GetSimpleDraftingAidPreferences ()
	Returns the SimpleDraftingAidPreferences object.
int	Index ()
	Returns the target index.
void	SetDatumLabel (const NXString &datumLabel)
	Sets the datum label.
void	SetDatumLabel (const char *datumLabel)
	Sets the datum label.
void	SetIndex (int index)
	Sets the target index.
void	SetSimpleDraftingAidPreferences (NXOpen::Annotations::SimpleDraftingAidPreferences *preferences)
	Sets the SimpleDraftingAidPreferences object Created in NX4.0.0.
virtual	~DatumTargetData ()
	Frees the object from memory.
Public Member Functions inherited from NXOpen::TransientObject
void *	GetHandle ()
	Handle of the internal object represented by this object.

Detailed Description

Represents datum target data
Created in NX4.0.0.

Constructor & Destructor Documentation

virtual NXOpen::Annotations::DatumTargetData::~DatumTargetData ( )

virtual

Frees the object from memory.

After this method is called, it is illegal to use the object. In .NET, this method is automatically called when the object is deleted by the garbage collector.
Created in NX4.0.0.

License requirements : None

Member Function Documentation

NXString NXOpen::Annotations::DatumTargetData::DatumLabel

(

)

Returns the datum label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

NXOpen::Annotations::SimpleDraftingAidPreferences* NXOpen::Annotations::DatumTargetData::GetSimpleDraftingAidPreferences

(

)

Returns the SimpleDraftingAidPreferences object.

Returns

Datum target preferences
Created in NX4.0.0.

License requirements : None

int NXOpen::Annotations::DatumTargetData::Index

(

)

Returns the target index.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

void NXOpen::Annotations::DatumTargetData::SetDatumLabel

(

const NXString &

datumLabel

)

Sets the datum label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Parameters

datumLabel

New datum label

void NXOpen::Annotations::DatumTargetData::SetDatumLabel

(

const char *

datumLabel

)

Sets the datum label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Parameters

datumLabel

New datum label

void NXOpen::Annotations::DatumTargetData::SetIndex

(

int

index

)

Sets the target index.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Parameters

index

New target index

void NXOpen::Annotations::DatumTargetData::SetSimpleDraftingAidPreferences

(

NXOpen::Annotations::SimpleDraftingAidPreferences *

preferences

)

Sets the SimpleDraftingAidPreferences object
Created in NX4.0.0.

License requirements : None

Parameters

preferences

New datum target preferences

---

The documentation for this class was generated from the following file:

• Annotations_DatumTargetData.hxx
