NXOpen::Annotations::CircularTarget Class Reference

Represents a circular datum target
To create or edit an instance of this class, use Annotations::PmiDatumTargetBuilder

Created in NX4.0.0. More...

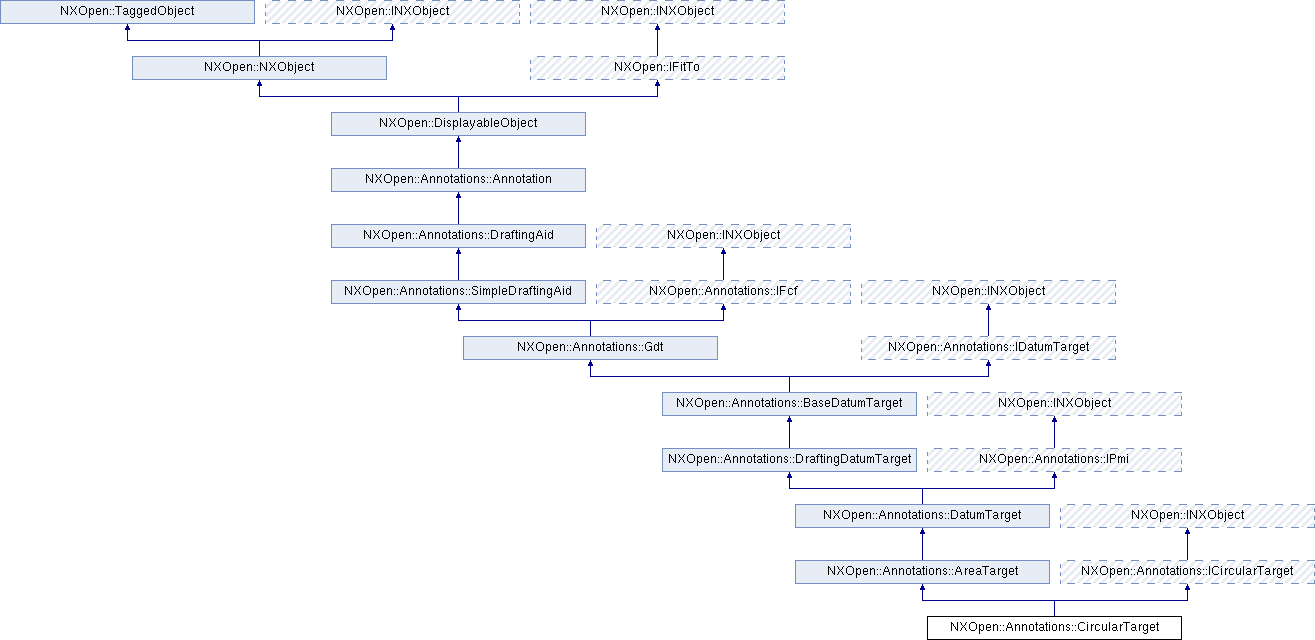

Inheritance diagram for NXOpen::Annotations::CircularTarget:

Public Member Functions
virtual NXOpen::Annotations::Value	GetDiameter ()
	Returns the target diameter.
virtual void	SetDiameter (const NXOpen::Annotations::Value &diameter)
	Sets the target diameter.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a circular datum target
To create or edit an instance of this class, use Annotations::PmiDatumTargetBuilder

Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Annotations::Value NXOpen::Annotations::CircularTarget::GetDiameter ( )

virtual

Returns the target diameter.

Returns

Diameter data
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::ICircularTarget.

virtual void NXOpen::Annotations::CircularTarget::SetDiameter ( const NXOpen::Annotations::Value &  diameter )

virtual

Sets the target diameter.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

diameter

New diameter data

Implements NXOpen::Annotations::ICircularTarget.

---

The documentation for this class was generated from the following file:

• Annotations_CircularTarget.hxx
