Represents a CircleCenterline Builder
This is an abstract class. More...

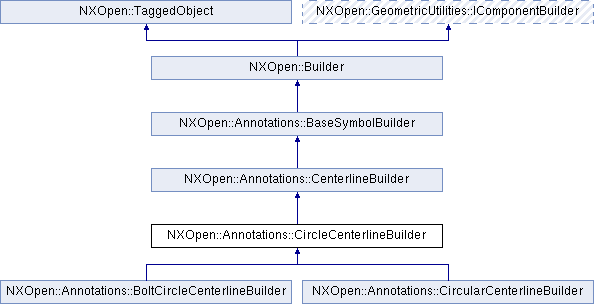

Inheritance diagram for NXOpen::Annotations::CircleCenterlineBuilder:

Public Types
enum	Types { TypesThrough3Points, TypesCenterpoint }
	the valid enumeration used for the creation types, applicable only while creation Once created type centerpoint will be set for all bolt circle/circular centerline More...

Public Member Functions
bool	FullCircle ()
	Returns the method which returns full or partial circle flag Created in NX6.0.0.

NXOpen::SelectNXObject *	Inherit ()
	Returns the inherit object Created in NX6.0.0.

NXOpen::SelectNXObjectList *	Locations ()
	Returns the selction object of the centerline Created in NX6.0.0.

void	RemoveLocation (int index)
	Removes location object for a given index from the Select Object List.

void	SetFullCircle (bool fullType)
	Sets the method which returns full or partial circle flag Created in NX6.0.0.

NXOpen::Annotations::CircleCenterlineSettingsBuilder *	Settings ()
	Returns the settings builder object for the centerline Created in NX6.0.0.

void	SetType (NXOpen::Annotations::CircleCenterlineBuilder::Types method)
	Sets the method which returns type of centerline Created in NX6.0.0.

NXOpen::Annotations::CircleCenterlineBuilder::Types	Type ()
	Returns the method which returns type of centerline Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Annotations::CenterlineBuilder
void	AddEndExtensions (double start, double end)
	Adds extensions only at ends Created in NX6.0.0.

void	AddExtension (int index, double defaultValue)
	Adds extension based on select object index Created in NX6.0.0.

std::vector< double >	GetAllExtensions ()
	Returns all extensions.

std::vector< double >	GetAllIndividualExtensions ()
	Returns individual extensions.

std::vector< double >	GetEndExtensions ()
	Returns end extensions only.

void	RemoveEndExtensions ()
	Removes extensions only at ends Created in NX6.0.0.

void	RemoveExtension (int index)
	Removes extension based on select object index Created in NX6.0.0.

void	ResetAllExtensions (double defaultValue)
	Reset all extensions by the supplied defaultValue Created in NX6.0.1.

void	SetAllIndividualExtensions (const std::vector< double > &extensionValues)
	Sets all individual extensions Created in NX8.0.1.

void	SetEndExtensions (double start, double end)
	Modifies end extensions only Created in NX6.0.0.

void	SetIndividualExtensions (int index, double value1, double value2)
	Modifies extensions based on select object index Created in NX6.0.0.

Detailed Description

Represents a CircleCenterline Builder
This is an abstract class.

Default values.

Property

Value

Settings.Extension

6.35 (millimeters part), 0.25 (inches part)

Settings.Gap

1.5875 (millimeters part), 0.0625 (inches part)

Settings.IndividualDistance

0

Settings.Size

3.175 (millimeters part), 0.125 (inches part)

Settings.Width

Thin

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::CircleCenterlineBuilder::Types

the valid enumeration used for the creation types, applicable only while creation Once created type centerpoint will be set for all bolt circle/circular centerline

Enumerator:

TypesThrough3Points	Centerline using 3 or More Points Method.
TypesCenterpoint	Centerline using Centerpoint Method.

Member Function Documentation

bool NXOpen::Annotations::CircleCenterlineBuilder::FullCircle ( )

Returns the method which returns full or partial circle flag
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::CircleCenterlineBuilder::Inherit ( )

Returns the inherit object
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Annotations::CircleCenterlineBuilder::Locations ( )

Returns the selction object of the centerline
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::CircleCenterlineBuilder::RemoveLocation ( int index )

Removes location object for a given index from the Select Object List.

       This method is required for the retained circle centerline case , however the method
       can be used for removing any object from select object list for the Circle Centerline.

Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

index Index of the object in the select object list

void NXOpen::Annotations::CircleCenterlineBuilder::SetFullCircle ( bool fullType )

Sets the method which returns full or partial circle flag
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

fullType fulltype

NXOpen::Annotations::CircleCenterlineSettingsBuilder* NXOpen::Annotations::CircleCenterlineBuilder::Settings ( )

Returns the settings builder object for the centerline
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::CircleCenterlineBuilder::SetType ( NXOpen::Annotations::CircleCenterlineBuilder::Types method )

Sets the method which returns type of centerline
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

method method

NXOpen::Annotations::CircleCenterlineBuilder::Types NXOpen::Annotations::CircleCenterlineBuilder::Type ( )

Returns the method which returns type of centerline
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_CircleCenterlineBuilder.hxx
