Represents a Builder for CenterMark Settings. More...

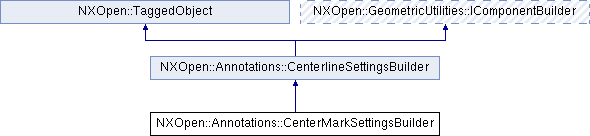

Inheritance diagram for NXOpen::Annotations::CenterMarkSettingsBuilder:

Public Member Functions
double	Angle ()
	Returns the angle of rotation for Center Marks Created in NX6.0.0.

double	Extension ()
	Returns the extension parameter for centerline Created in NX6.0.0.

bool	IndividualDistance ()
	Returns the individual extension distance On/Off parameter for CenterMark Created in NX6.0.0.

bool	InheritAngle ()
	Returns the inherit angle option for Center Marks Created in NX6.0.0.

void	SetAngle (double angle)
	Sets the angle of rotation for Center Marks Created in NX6.0.0.

void	SetExtension (double extension)
	Sets the extension parameter for centerline Created in NX6.0.0.

void	SetIndividualDistance (bool individualDistance)
	Sets the individual extension distance On/Off parameter for CenterMark Created in NX6.0.0.

void	SetInheritAngle (bool inheritAngle)
	Sets the inherit angle option for Center Marks Created in NX6.0.0.

void	SetShowCenterPoint (bool showCenterPoint)
	Sets the show center point option for Center Marks Created in NX7.5.0.

void	SetSize (double size)
	Sets the size parameter for centerline.

bool	ShowCenterPoint ()
	Returns the show center point option for Center Marks Created in NX7.5.0.

double	Size ()
	Returns the size parameter for centerline.

Public Member Functions inherited from NXOpen::Annotations::CenterlineSettingsBuilder
NXOpen::NXColor *	Color ()
	Returns the color of centerline Created in NX6.0.0.

double	Gap ()
	Returns the gap parameter for centeline Created in NX6.0.0.

void	SetColor (NXOpen::NXColor *color)
	Sets the color of centerline Created in NX6.0.0.

void	SetGap (double gap)
	Sets the gap parameter for centeline Created in NX6.0.0.

void	SetWidth (NXOpen::Annotations::CenterlineSettingsBuilder::CenterlineThickness width)
	Sets the width of centerline Created in NX6.0.0.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

NXOpen::Annotations::CenterlineSettingsBuilder::CenterlineThickness	Width ()
	Returns the width of centerline Created in NX6.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::Annotations::CenterlineSettingsBuilder
enum	CenterlineThickness { CenterlineThicknessThin, CenterlineThicknessNormal, CenterlineThicknessThick, CenterlineThicknessOne = 6, CenterlineThicknessTwo, CenterlineThicknessThree, CenterlineThicknessFour, CenterlineThicknessFive, CenterlineThicknessSix, CenterlineThicknessSeven, CenterlineThicknessEight, CenterlineThicknessNine }
	the types of centerline thickness More...

Detailed Description

Represents a Builder for CenterMark Settings.

This can be used for all types of centerlines
Created in NX6.0.0.

Member Function Documentation

double NXOpen::Annotations::CenterMarkSettingsBuilder::Angle ( )

Returns the angle of rotation for Center Marks
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::CenterMarkSettingsBuilder::Extension ( )

Returns the extension parameter for centerline
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::CenterMarkSettingsBuilder::IndividualDistance ( )

Returns the individual extension distance On/Off parameter for CenterMark
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::CenterMarkSettingsBuilder::InheritAngle ( )

Returns the inherit angle option for Center Marks
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::CenterMarkSettingsBuilder::SetAngle ( double angle )

Sets the angle of rotation for Center Marks
Created in NX6.0.0.
