Builder for creating 3D Centerline. More...

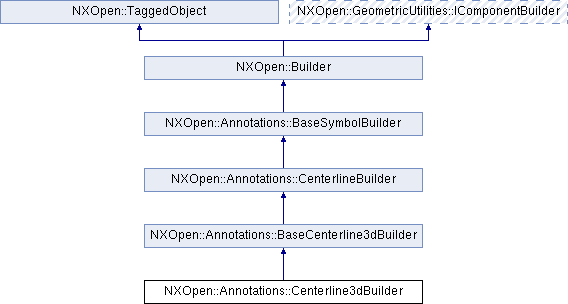

Inheritance diagram for NXOpen::Annotations::Centerline3dBuilder:

Public Types
enum	Offset { OffsetNone, OffsetDistanceMethod, OffsetObjectMethod }
	the valid types of 3D Centerline offset method More...

Public Member Functions
bool	AlignedCenterlines ()
	Returns the aligned centerlines, applicable only for creation Created in NX6.0.0.

NXOpen::SelectNXObject *	Inherit ()
	Returns the inherit object Created in NX6.0.0.

double	OffsetDistance ()
	Returns the offset distance, it is used only when aligned centerlines toggle is off Created in NX6.0.0.

NXOpen::Annotations::Centerline3dBuilder::Offset	OffsetMethod ()
	Returns the offset method , it is used only when aligned centerlines toggle is off Created in NX6.0.0.

NXOpen::SelectNXObject *	OffsetObject ()
	Returns the offset object, it is used only when aligned centerlines toggle is off Created in NX6.0.0.

void	SetAlignedCenterlines (bool alignedCenterlines)
	Sets the aligned centerlines, applicable only for creation Created in NX6.0.0.

void	SetOffsetDistance (double offsetDistance)
	Sets the offset distance, it is used only when aligned centerlines toggle is off Created in NX6.0.0.

void	SetOffsetMethod (NXOpen::Annotations::Centerline3dBuilder::Offset offsetMethod)
	Sets the offset method , it is used only when aligned centerlines toggle is off Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Annotations::BaseCenterline3dBuilder
NXOpen::SelectNXObjectList *	Face ()
	Returns the face Created in NX6.0.0.

int	ReferenceIndex ()
	Returns the reference index Created in NX6.0.0.

void	SetReferenceIndex (int referenceIndex)
	Sets the reference index Created in NX6.0.0.

NXOpen::Annotations::Centerline3dSettingsBuilder *	Settings ()
	Returns the settings builder Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Annotations::CenterlineBuilder
void	AddEndExtensions (double start, double end)
	Adds extensions only at ends Created in NX6.0.0.

void	AddExtension (int index, double defaultValue)
	Adds extension based on select object index Created in NX6.0.0.

std::vector< double >	GetAllExtensions ()
	Returns all extensions.

std::vector< double >	GetAllIndividualExtensions ()
	Returns individual extensions.

std::vector< double >	GetEndExtensions ()
	Returns end extensions only.

void	RemoveEndExtensions ()
	Removes extensions only at ends Created in NX6.0.0.

void	RemoveExtension (int index)
	Removes extension based on select object index Created in NX6.0.0.

void	ResetAllExtensions (double defaultValue)
	Reset all extensions by the supplied defaultValue Created in NX6.0.1.

void	SetAllIndividualExtensions (const std::vector< double > &extensionValues)
	Sets all individual extensions Created in NX8.0.1.

void	SetEndExtensions (double start, double end)
	Modifies end extensions only Created in NX6.0.0.

void	SetIndividualExtensions (int index, double value1, double value2)
	Modifies extensions based on select object index Created in NX6.0.0.

Detailed Description

Builder for creating 3D Centerline.

It creates or edits 3D Centerlines
To create a new instance of this class, use Annotations::CenterlineCollection::CreateCenterline3dBuilder
Default values.

Property

Value

AlignedCenterlines

false

OffsetDistance

0

OffsetMethod

None

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::Centerline3dBuilder::Offset

the valid types of 3D Centerline offset method

Enumerator:

OffsetNone	No Offset.
OffsetDistanceMethod	Offset Distance.
OffsetObjectMethod	Offset Object, applicable only for creation.

Member Function Documentation

bool NXOpen::Annotations::Centerline3dBuilder::AlignedCenterlines ( )

Returns the aligned centerlines, applicable only for creation
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline3dBuilder::Inherit ( )

Returns the inherit object
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::Centerline3dBuilder::OffsetDistance ( )

Returns the offset distance, it is used only when aligned centerlines toggle is off
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::Centerline3dBuilder::Offset NXOpen::Annotations::Centerline3dBuilder::OffsetMethod ( )

Returns the offset method , it is used only when aligned centerlines toggle is off
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::Centerline3dBuilder::OffsetObject ( )

Returns the offset object, it is used only when aligned centerlines toggle is off
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::Centerline3dBuilder::SetAlignedCenterlines ( bool alignedCenterlines )

Sets the aligned centerlines, applicable only for creation
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

alignedCenterlines alignedcenterlines

void NXOpen::Annotations::Centerline3dBuilder::SetOffsetDistance ( double offsetDistance )

Sets the offset distance, it is used only when aligned centerlines toggle is off
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

offsetDistance offsetdistance

void NXOpen::Annotations::Centerline3dBuilder::SetOffsetMethod ( NXOpen::Annotations::Centerline3dBuilder::Offset offsetMethod )

Sets the offset method , it is used only when aligned centerlines toggle is off
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

offsetMethod offsetmethod

The documentation for this class was generated from the following file:

Annotations_Centerline3dBuilder.hxx
