NXOpen::Routing::InterfaceTerminalRelationshipShadow Class Reference

Represents an assembly shadow of Routing::InterfaceTerminalRelationshipBase . More...

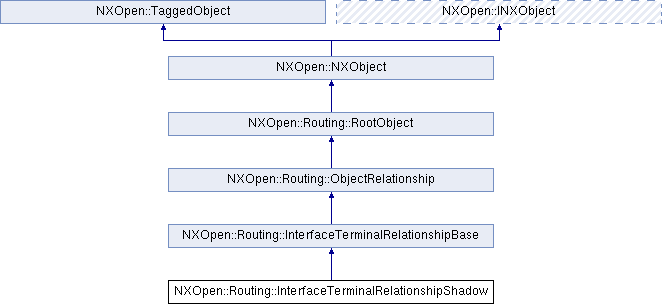

Inheritance diagram for NXOpen::Routing::InterfaceTerminalRelationshipShadow:

Additional Inherited Members
Public Types inherited from NXOpen::Routing::InterfaceTerminalRelationshipBase
enum	RelationType { RelationTypeDecomposition }
	Type of interface terminal relationships as per STEP 212 Standards. More...
Public Member Functions inherited from NXOpen::Routing::InterfaceTerminalRelationshipBase
void	AddRelatedInterfaceTerminal (NXOpen::Routing::InterfaceTerminalShadow *relatedInterfaceTerminal)
	Adds a Routing::Port to the Routing::InterfaceTerminalRelationshipBase object with a relationship of related.
std::vector < NXOpen::Routing::InterfaceTerminalShadow * >	GetRelatedInterfaceTerminals ()
	Gets the list of Routing::Port s in the Routing::InterfaceTerminalRelationshipBase object with a relationship of related.
NXOpen::Routing::InterfaceTerminalShadow *	GetRelatingInterfaceTerminal ()
	Gets the Routing::Port in the Routing::InterfaceTerminalRelationshipBase with a relationship of relating.
NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationType	RelationshipType ()
	Returns the type of the Routing::InterfaceTerminalRelationshipBase object.
void	RemoveRelatedInterfaceTerminal (NXOpen::Routing::InterfaceTerminalShadow *relatedInterfaceTerminal)
	Removes a related Routing::Port from the list of related terminals in the Routing::InterfaceTerminalRelationshipBase object.
void	ReplaceRelatedInterfaceTerminals (const std::vector< NXOpen::Routing::InterfaceTerminalShadow * > &relatedInterfaceTerminals)
	Replaces the existing related Routing::Port s in the Routing::InterfaceTerminalRelationshipBase object with input ones.
void	SetRelatingInterfaceTerminal (NXOpen::Routing::InterfaceTerminalShadow *relatingInterfaceTerminal)
	Created in NX4.0.2.
void	SetRelationshipType (NXOpen::Routing::InterfaceTerminalRelationshipBase::RelationType relationshipType)
	Sets the type of the Routing::InterfaceTerminalRelationshipBase object.

Detailed Description

Represents an assembly shadow of Routing::InterfaceTerminalRelationshipBase .

    <br>
   Shadow objects stand in for the source objects when source parts are unavailable or unloaded.
    <br>
    <br>
   @link Routing::InterfaceTerminalRelationshipShadow Routing::InterfaceTerminalRelationshipShadow@endlink  carries the same GUID as the
   source @link Routing::InterfaceTerminalRelationshipBase Routing::InterfaceTerminalRelationshipBase@endlink  and syncs with the source
   anytime necessary or possible.
    <br>
    <br>
   See NX Routing help for the Connectivity data model documentation.
    <br>
<br> To create a new instance of this class, use @link Routing::InterfaceTerminalRelationshipCollection::CreateElectricalInterfaceTerminalRelationship  Routing::InterfaceTerminalRelationshipCollection::CreateElectricalInterfaceTerminalRelationship @endlink  <br>

Created in NX4.0.2.

---

The documentation for this class was generated from the following file:

• Routing_InterfaceTerminalRelationshipShadow.hxx
