Builder Class for Integrate Runs Object  <br> To create a new instance of this class, use @link Routing::RouteManager::IntegrateRunsBuilder  Routing::RouteManager::IntegrateRunsBuilder @endlink  <br>

Default values. More...

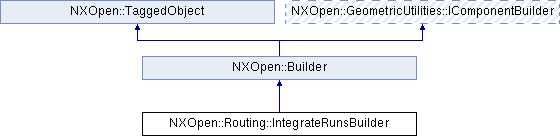

Inheritance diagram for NXOpen::Routing::IntegrateRunsBuilder:

Public Types
enum	Button { ButtonFromItems, ButtonToItems, ButtonMemberItems, ButtonUnknown = -1 }
	Enums to distinguish callback's for from/to/member Item buttons. More...

enum	Enum { EnumFirstRun, EnumSecondRun }
	RunAttributes from which Run. More...

Public Member Functions
NXOpen::SelectNXObject *	FirstRun ()
	Returns the first run Created in NX8.0.0.

void	ModifyItemsButton (const std::vector< NXOpen::NXObject * > &objects, NXOpen::Routing::IntegrateRunsBuilder::Button buttonType)
	Updates the selected nodes in Specify From/To item tree list to From/To/Member item based on buttonType Created in NX8.0.0.

NXOpen::Routing::IntegrateRunsBuilder::Enum	RunAttributes ()
	Returns the run attributes Created in NX8.0.0.

NXString	RunName ()
	Returns the user mentioned run name for Integrated Run Created in NX8.0.0.

NXOpen::SelectNXObject *	SecondRun ()
	Returns the second run Created in NX8.0.0.

void	SetRunAttributes (NXOpen::Routing::IntegrateRunsBuilder::Enum runAttributes)
	Sets the run attributes Created in NX8.0.0.

void	SetRunName (const NXString &runName)
	Sets the user mentioned run name for Integrated Run Created in NX8.0.0.

void	SetRunName (const char *runName)
	Sets the user mentioned run name for Integrated Run Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder Class for Integrate Runs Object  <br> To create a new instance of this class, use @link Routing::RouteManager::IntegrateRunsBuilder  Routing::RouteManager::IntegrateRunsBuilder @endlink  <br>

Default values.

Property

Value

RunAttributes

FirstRun

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Routing::IntegrateRunsBuilder::Button

Enums to distinguish callback's for from/to/member Item buttons.

Enumerator:

ButtonFromItems	Set as FromItem for selected node in tree list.
ButtonToItems	Set as ToItem for selected node in tree list.
ButtonMemberItems	Set as MemberItem for selected node in tree list.

enum NXOpen::Routing::IntegrateRunsBuilder::Enum

RunAttributes from which Run.

Enumerator:

EnumFirstRun	first run
EnumSecondRun	second run
