Builder Class for DefineRun Object
To create a new instance of this class, use Routing::RouteManager::CreateDefineRunBuilder

Created in NX8.5.0. More...

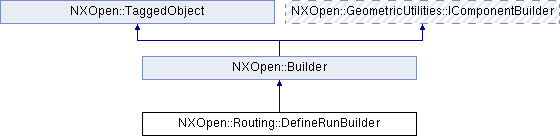

Inheritance diagram for NXOpen::Routing::DefineRunBuilder:

Public Member Functions
void	AddMemberItems (NXOpen::TaggedObject *memberItem)
	Append a member item to the list in the builder for DefineRun Created in NX8.5.0.

NXOpen::Routing::RunItemsBuilder *	CreateRunItemsBuilder ()
	Creates a RunItems used to create list item for DefineRun.

NXOpen::Routing::RunItemsBuilderList *	FromItemsList ()
	Returns the FROM items list of the run.

NXOpen::Routing::RouteObjectCollector *	MemberItems ()
	Returns the MEMBER items of the run.

void	RemoveMemberItems (const std::vector< NXOpen::TaggedObject * > &memberItems)
	Remove a member item from the list in the builder for DefineRun Created in NX8.5.0.

NXString	RunIdentifier ()
	Returns the run identifier Created in NX8.5.0.

NXString	RunType ()
	Returns the run type Created in NX8.5.0.

void	SetRunIdentifier (const NXString &runIdentifier)
	Sets the run identifier Created in NX8.5.0.

void	SetRunIdentifier (const char *runIdentifier)
	Sets the run identifier Created in NX8.5.0.

void	SetRunType (const NXString &runType)
	Sets the run type Created in NX8.5.0.

void	SetRunType (const char *runType)
	Sets the run type Created in NX8.5.0.

void	SetSpecificationOption (const NXString &specificationOption)
	Sets the specification of the run.

void	SetSpecificationOption (const char *specificationOption)
	Sets the specification of the run.

NXString	SpecificationOption ()
	Returns the specification of the run.

NXOpen::Routing::RunItemsBuilderList *	ToItemsList ()
	Returns the TO items list of the run .

void	UnifyPath ()
	UnifyPath of the run.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder Class for DefineRun Object
To create a new instance of this class, use Routing::RouteManager::CreateDefineRunBuilder

Created in NX8.5.0.

Member Function Documentation

void NXOpen::Routing::DefineRunBuilder::AddMemberItems ( NXOpen::TaggedObject * memberItem )

Append a member item to the list in the builder for DefineRun
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

memberItem run member item

NXOpen::Routing::RunItemsBuilder* NXOpen::Routing::DefineRunBuilder::CreateRunItemsBuilder ( )

Creates a RunItems used to create list item for DefineRun.

Returns: runItems builder
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::RunItemsBuilderList* NXOpen::Routing::DefineRunBuilder::FromItemsList ( )

Returns the FROM items list of the run.

        The list consists of @link Routing::DefineRunBuilder  Routing::DefineRunBuilder @endlink  objects.

Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::RouteObjectCollector* NXOpen::Routing::DefineRunBuilder::MemberItems ( )

Returns the MEMBER items of the run.

Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::DefineRunBuilder::RemoveMemberItems ( const std::vector< NXOpen::TaggedObject * > & memberItems )

Remove a member item from the list in the builder for DefineRun
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

memberItems member items to be removed from the run.

NXString NXOpen::Routing::DefineRunBuilder::RunIdentifier ( )

Returns the run identifier
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXString NXOpen::Routing::DefineRunBuilder::RunType ( )

Returns the run type
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::DefineRunBuilder::SetRunIdentifier ( const NXString & runIdentifier )

Sets the run identifier
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

runIdentifier runidentifier

void NXOpen::Routing::DefineRunBuilder::SetRunIdentifier ( const char * runIdentifier )

Sets the run identifier
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

runIdentifier runidentifier

void NXOpen::Routing::DefineRunBuilder::SetRunType ( const NXString & runType )

Sets the run type
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

runType runtype

void NXOpen::Routing::DefineRunBuilder::SetRunType ( const char * runType )

Sets the run type
Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

runType runtype

void NXOpen::Routing::DefineRunBuilder::SetSpecificationOption ( const NXString & specificationOption )

Sets the specification of the run.

Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

specificationOption specificationoption

void NXOpen::Routing::DefineRunBuilder::SetSpecificationOption ( const char * specificationOption )

Sets the specification of the run.

Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

Parameters

specificationOption specificationoption

NXString NXOpen::Routing::DefineRunBuilder::SpecificationOption ( )

Returns the specification of the run.

Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

NXOpen::Routing::RunItemsBuilderList* NXOpen::Routing::DefineRunBuilder::ToItemsList ( )

Returns the TO items list of the run .

   The list consists of @link Routing::DefineRunBuilder  Routing::DefineRunBuilder @endlink  objects.

Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

void NXOpen::Routing::DefineRunBuilder::UnifyPath ( )

UnifyPath of the run.

Created in NX8.5.0.

License requirements : routing_advanced ("Routing Advanced"), routing_base ("Routing Basic")

The documentation for this class was generated from the following file:

Routing_DefineRunBuilder.hxx
