NXOpen::Mechatronics::CollisionShapeBuilder Class Reference

This is an abstract class, and cannot be created. More...

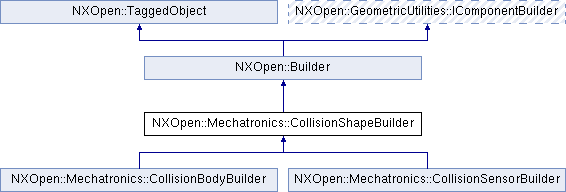

Inheritance diagram for NXOpen::Mechatronics::CollisionShapeBuilder:

Public Member Functions
NXOpen::Point *	CenterPoint ()
	Returns the center point.
NXOpen::Expression *	Height ()
	Returns the height.
NXOpen::Expression *	Length ()
	Returns the length.
NXOpen::CoordinateSystem *	Orientation ()
	Returns the orientation.
NXOpen::Expression *	Radius ()
	Returns the radius.
void	SetCenterPoint (NXOpen::Point *centerPoint)
	Sets the center point.
void	SetOrientation (NXOpen::CoordinateSystem *orientation)
	Sets the orientation.
NXOpen::Expression *	Width ()
	Returns the width.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is an abstract class, and cannot be created.

This is an abstract class, and cannot be created.

Created in NX7.5.1.

Member Function Documentation

NXOpen::Point* NXOpen::Mechatronics::CollisionShapeBuilder::CenterPoint

(

)

Returns the center point.

Valid to all collsion shape types except Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesConvex .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::CollisionShapeBuilder::Height

(

)

Returns the height.

Valid if Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesBox or Mechatronics::CollisionSensorBuilder::CollisionShape is set to Mechatronics::CollisionSensorBuilder::CollisionShapeTypesBox .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::CollisionShapeBuilder::Length

(

)

Returns the length.

Valid if Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesBox or Mechatronics::CollisionBodyBuilder::CollisionShapeTypesCapsule or Mechatronics::CollisionSensorBuilder::CollisionShape is set to Mechatronics::CollisionSensorBuilder::CollisionShapeTypesBox or Mechatronics::CollisionSensorBuilder::CollisionShapeTypesLine .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::CoordinateSystem* NXOpen::Mechatronics::CollisionShapeBuilder::Orientation

(

)

Returns the orientation.

Valid if Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesBox or Mechatronics::CollisionBodyBuilder::CollisionShapeTypesCapsule or Mechatronics::CollisionSensorBuilder::CollisionShape is set to Mechatronics::CollisionSensorBuilder::CollisionShapeTypesBox or Mechatronics::CollisionSensorBuilder::CollisionShapeTypesLine .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::CollisionShapeBuilder::Radius

(

)

Returns the radius.

Valid if Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesSphere or Mechatronics::CollisionSensorBuilder::CollisionShape is set to Mechatronics::CollisionSensorBuilder::CollisionShapeTypesSphere .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::CollisionShapeBuilder::SetCenterPoint

(

NXOpen::Point *

centerPoint

)

Sets the center point.

Valid to all collsion shape types except Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesConvex .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

centerPoint

centerpoint

void NXOpen::Mechatronics::CollisionShapeBuilder::SetOrientation

(

NXOpen::CoordinateSystem *

orientation

)

Sets the orientation.

Valid if Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesBox or Mechatronics::CollisionBodyBuilder::CollisionShapeTypesCapsule or Mechatronics::CollisionSensorBuilder::CollisionShape is set to Mechatronics::CollisionSensorBuilder::CollisionShapeTypesBox or Mechatronics::CollisionSensorBuilder::CollisionShapeTypesLine .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

orientation

orientation

NXOpen::Expression* NXOpen::Mechatronics::CollisionShapeBuilder::Width

(

)

Returns the width.

Valid if Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesBox or Mechatronics::CollisionSensorBuilder::CollisionShape is set to Mechatronics::CollisionSensorBuilder::CollisionShapeTypesBox .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

---

The documentation for this class was generated from the following file:

• Mechatronics_CollisionShapeBuilder.hxx
