This class performs a point set to point set alignment <br> To create a new instance of this class, use @link Part::CreatePointSetAlignmentBuilder Part::CreatePointSetAlignmentBuilder @endlink <br>
Default values. More...

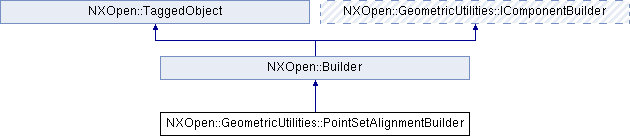

Inheritance diagram for NXOpen::GeometricUtilities::PointSetAlignmentBuilder:
Public Types | |
| enum | ConstraintOptions { ConstraintOptionsNone, ConstraintOptionsX, ConstraintOptionsY, ConstraintOptionsZ } |
| Constraint Options. More... | |
Public Member Functions | |
| NXOpen::GeometricUtilities::PointSetAlignmentBuilder::ConstraintOptions | Constraint () |
| Returns the constraint Created in NX7.5.0. | |
| NXOpen::SelectPointList * | FromPointSet () |
| Returns the "from" point set Created in NX7.5.0. | |
| NXOpen::SelectDisplayableObjectList * | ObjectsToMove () |
| Returns the objects to move Created in NX7.5.0. | |
| void | SetConstraint (NXOpen::GeometricUtilities::PointSetAlignmentBuilder::ConstraintOptions constraint) |
| Sets the constraint Created in NX7.5.0. | |
| NXOpen::SelectPointList * | ToPointSet () |
| Returns the "to" point set Created in NX7.5.0. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This class performs a point set to point set alignment <br> To create a new instance of this class, use @link Part::CreatePointSetAlignmentBuilder Part::CreatePointSetAlignmentBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
Constraint |
None |
Created in NX7.5.0.
Member Enumeration Documentation
Constraint Options.
Member Function Documentation
| NXOpen::GeometricUtilities::PointSetAlignmentBuilder::ConstraintOptions NXOpen::GeometricUtilities::PointSetAlignmentBuilder::Constraint | ( | ) |
Returns the constraint
Created in NX7.5.0.
License requirements : None
| NXOpen::SelectPointList* NXOpen::GeometricUtilities::PointSetAlignmentBuilder::FromPointSet | ( | ) |
Returns the "from" point set
Created in NX7.5.0.
License requirements : None
| NXOpen::SelectDisplayableObjectList* NXOpen::GeometricUtilities::PointSetAlignmentBuilder::ObjectsToMove | ( | ) |
Returns the objects to move
Created in NX7.5.0.
License requirements : None
| void NXOpen::GeometricUtilities::PointSetAlignmentBuilder::SetConstraint | ( | NXOpen::GeometricUtilities::PointSetAlignmentBuilder::ConstraintOptions | constraint | ) |
Sets the constraint
Created in NX7.5.0.
License requirements : studio_free_form ("STUDIO FREE FORM")
- Parameters
-
constraint constraint
| NXOpen::SelectPointList* NXOpen::GeometricUtilities::PointSetAlignmentBuilder::ToPointSet | ( | ) |
Returns the "to" point set
Created in NX7.5.0.
License requirements : None
The documentation for this class was generated from the following file:
- GeometricUtilities_PointSetAlignmentBuilder.hxx
